Specifications
Brand Name :
XCMG
Model Number :
RP903
Certification :
ISO
Place of Origin :
CCC
MOQ :
One
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100 Unit/Units per Month
Delivery Time :
30-35 Work days
Packaging Details :
In nude
Dimension(L*W*H) :
7150*3000*3950 mm
Maximum paving speed :
16m/min
Weight :
24.5~29.0 t
Basic pave width :
3-9m
Condition :
New
Description

Heavy Duty Construction Equipment 9m RP903 162 KW Concrete Road Asphalt Paver

XCMG Road Construction Machines 9m RP903 Concrete Road Asphalt Paver Laying Machine Finisher

Driving left and right independent drive, microcomputer control, paving speed using constant-speed automatic control technology. The diesel-powered SC9DK220 diesel engine has a powerful power of 162kW. Adopting a three-in-one powerful composite radiator, the transmission and distribution adopt four sets of independent hydraulic system transmission, automatic material level control, ultrasonic sensor control technology for material distribution, and ultrasonic or material control technology for feeding materials to ensure the material trough The material level is stable. The height of the dividing device can be conveniently moved up and down to accommodate different paving thicknesses and reduce segregation. High wear-resistant alloy materials are used for the material-dividing blades, and highly wear-resistant steel plates are used for the material conveying floor and the screed bottom plate to effectively extend the service life of the machine. Central centralized lubrication system can automatically evenly lubricate bearings in high-temperature parts.

Specification of Road Construction Machines 9m RP903 Concrete Road Asphalt Paver

Item

Unit

Performance Parameters
Basic paving width m 3.0
Maximum paving width m 9.0
Maximum paving thickness mm 300
Working speed m/min 0~18
Running speed km/h 0~2.8
Theoretical productivity t/h 800
Bucket capacity t 15
Gradeability % 20
Flatness mm ≤1.2
Transverse leveling accuracy % ±0.02
Camber adjustable range % -1~+4
Model of diesel engine BF6M1013
Power of diesel engine kW 159
Speed of diesel engine rpm 2000
Heating generator power kW 28
Overall weight t 24.3~27.5
Outside dimensions mm 7290*3000*3950
Material conveying speed m/min 0~22
Material distributing speed r/min 0~84
Vibration speed r/min 0~1800
Vibration stroke mm 4
Vibration frequency HZ 0~40
Screed Heating / Electric Heating
Auger and Conveyor Control / Automatic Control by Ultrasonic Sensors
Vibration mode / Eccentric Vibration
Auger and Conveyor Control / Digital

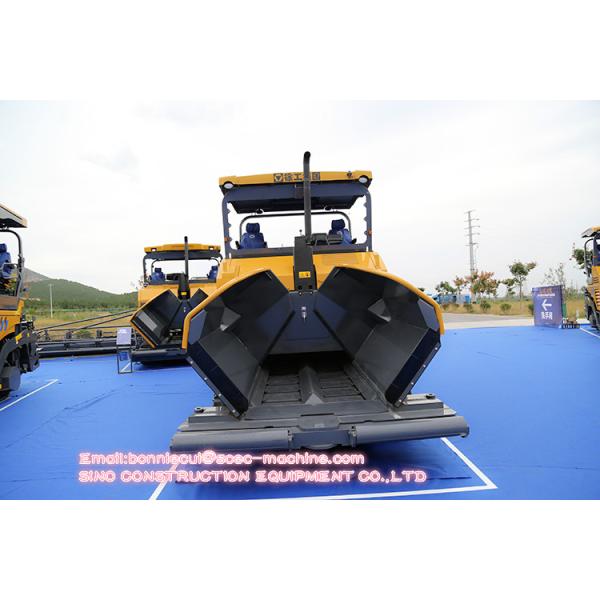

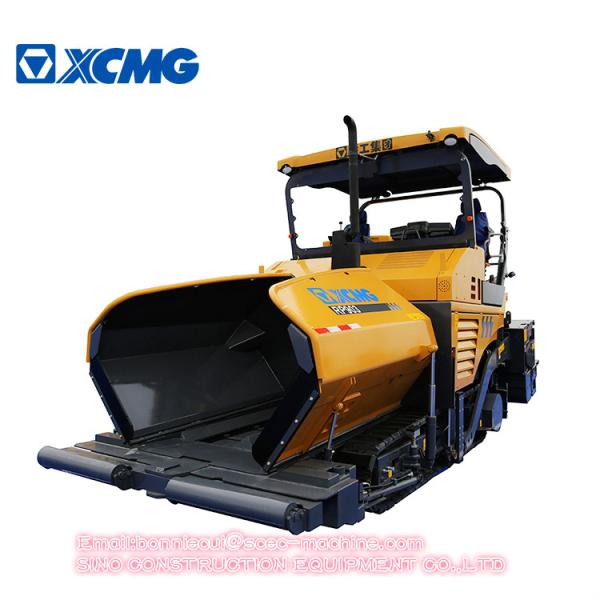

Photos of Road Construction Machines 9m RP903 Concrete Road Asphalt Paver

Heavy Duty Construction Equipment 9m RP903 162 KW Concrete Road Asphalt PaverHeavy Duty Construction Equipment 9m RP903 162 KW Concrete Road Asphalt Paver
