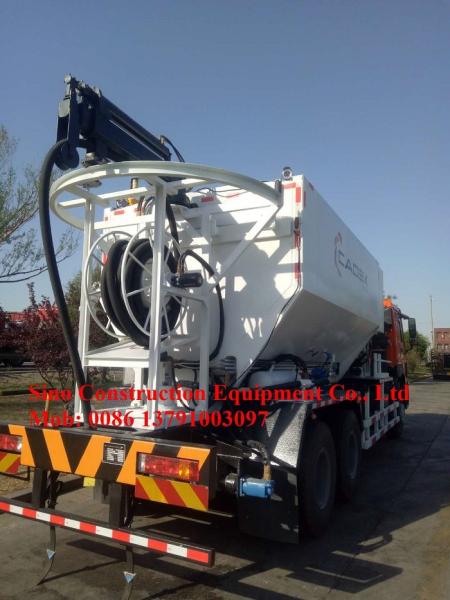

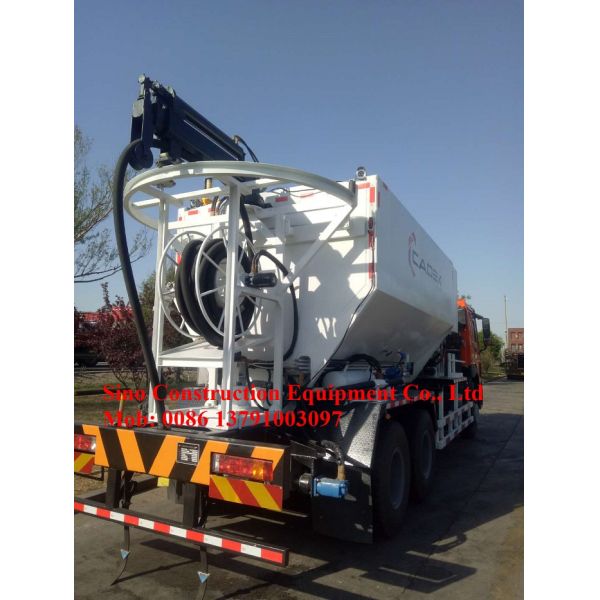

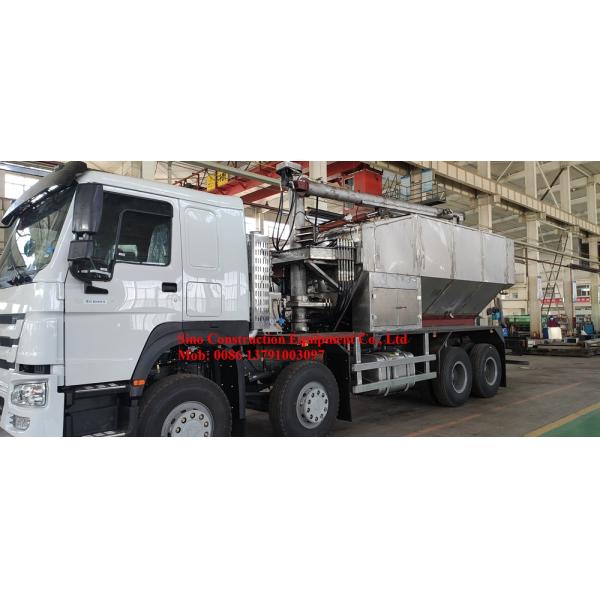

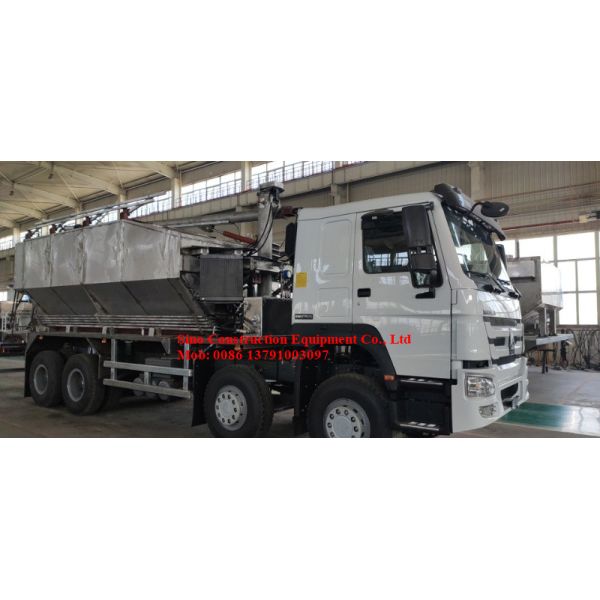

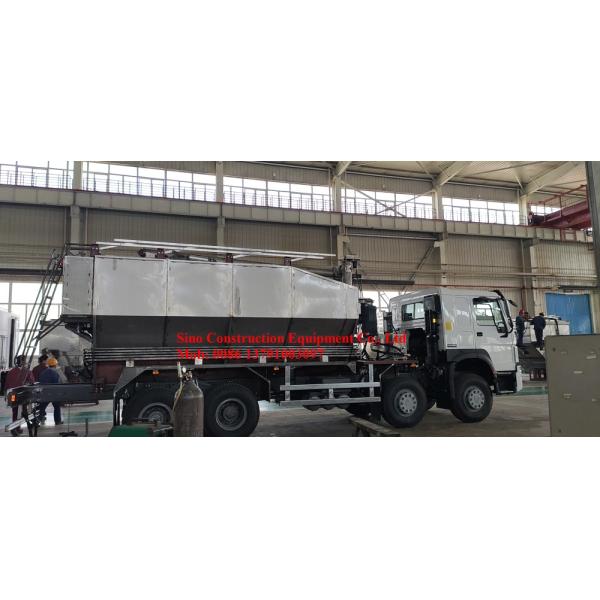

Special Purpose Truck 15ton ANFO Truck Borehole Charging Speed 200-450kg / Min
Special Purpose Truck 15ton ANFO Truck Borehole Charging Speed 200-450kg / Min
Special Purpose Truck 15ton ANFO Truck Borehole Charging Speed 200-450kg / Min
Special Purpose Truck 15ton ANFO Truck Borehole Charging Speed 200-450kg / Min
Special Purpose Truck 15ton ANFO Truck Borehole Charging Speed 200-450kg / Min
Special Purpose Truck 15ton ANFO Truck Borehole Charging Speed 200-450kg / Min
Special Purpose Truck 15ton ANFO Truck Borehole Charging Speed 200-450kg / Min
Special Purpose Truck 15ton ANFO Truck Borehole Charging Speed 200-450kg / Min
Specifications
Brand Name :
Sinotruk
Model Number :
BCLH-15
Certification :
ISO CCC
Place of Origin :
Jinan China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 units per month
Delivery Time :
Within 30-35 work days after receive order
Packaging Details :
Nude, Polished with wax before shipping on board
Item name :
BCLH-15 Anfo Truck 8x4 15t On-Site Mixed Granular Ammonium Explosive Truck
Truck chassis :
SINOTRUK HOWO ZZ1317N3867A
Engine :
WD615.47, 371hp
Tires :
12.00R20 /steel tires/, 12+1 pcs
Dimension of the machine and equipment :
11360×2500×3750
Mixing charger device of material :
Stainless steel
Amount of explosives :
17.5m³/15ton
Wall thickness of AN tank :
4-6mm
Borehole charging depth :
30m
Borehole charging speed :
200-450kg/min
Borehole charging diameter :
165-250mm
Diesel fuel tank volume, /equipment :
0.90m³/0.74ton
Description

Sinotruk Special Purpose Truck BCLH-15 Anfo Truck 8x4 15t On-Site Mixed Granular Ammonium Explosive Truck

Introduction of BCLH-15 Anfo Truck 8x4 15t On-Site Mixed Granular Ammonium Explosive Truck

On-site ANFO Truck (BCLH) series products can be used to mix porous granular ammonium explosives on site. It is mainly used for filling explosives in dry holes in open pit mines. It adopts the inclinometer screw delivery system, which has high efficiency and full computer operation control. The efficiency can reach 450kg / min, with the function of shutting down the material, and the work is safe and reliable.

Features of BCLH-15 Anfo Truck 8x4 15t On-Site Mixed Granular Ammonium Explosive Truck

1. The on-site mixed-load vehicles operate smoothly, safely, and reliably, and environmental protection, fire protection, and sanitation meet the current national (industry) standards.

2. The on-site mixed loading vehicle has an automatic alarm and shutdown function for the lack of oil phase to ensure the quality of the explosives. .

3. Anti-static grounding belts are installed on site for mixed vehicles to completely eliminate hidden dangers of static electricity and improve vehicle safety.

4. The on-site mixed loading vehicle is equipped with three sets of brake systems, such as engine exhaust brake, hand brake and foot brake, to improve the driving safety of the vehicle.

5. Equipped with two 6 kg dry powder fire extinguishers.

6. On-site mixed loading vehicles are installed with limited speed devices, the maximum speed is 80km / h.

7. The roof of the car has a pneumatic protective guardrail.

Technical specification of BCLH-15 Anfo Truck 8x4 15t On-Site Mixed Granular Ammonium Explosive Truck

Chassis
Brand&Model SINOTRUK HOWO ZZ1317N3867A

Engine

 Model WD615.47
Manufacture Sinotruk
Type

Diesel,

water-cooled, four strokes, 6 cylinders, in line with water cooling, turbo charged, And inter-cooling & direct injection.
Engine capacity 371hp
Emission standard Euro II
Drive wheel formulation 8x4
Wheelbase 1800+3800+1350mm
Cabin HW70, no sleeper
Transmission HW19710 transmission + HW70 flange type power take-off
Front axle MAN VPD060QB front axle (disk)
Loading: 6000kg
Chimney system

Smoke evacuation (with fire lid)
Tires 12.00R20 /steel tires/, 12+1 pcs
Fire extinguisher one pieces for machine, two pieces for equipment
Warnings Hazardous freight warnings according to Mongolian law and regularity must be sticked /4 sides of the machine /
Amber light

On the cabin-1 pieces

Equipment -1 pieces
Other directions
  • PTO option: /front and bottom protection/
  • Speed limiter device, speed limit 60 km/hour
Brake system ABS (4S / 4M)
Fuel tank Min-200 L / aluminum alloy fuel tank/
Others

/ The vehicle meets the conditions of adapting to the working conditions of

the plateau and cold regions./
Steering wheel

Left

HT457 rear dual drive axle (drum)
Axle’s loading capacity kg 6500 / 7000 / 17500
Loading kg 25000
Over all weight kg 35000
Dimension of the machine and equipment mm 11360×2500×3750
Mixing charger device of material Stainless steel
Amount of explosives

kg

 15000 17.5m³/15ton
Wall thickness of AN tank mm 4-6
Borehole charging depth

м

 20-30
Borehole charging speed

kg/min

200-450

 Adjustable
Measurement error, % ± 2
Borehole charging diameter

мм

 165-250 Adjustable

Porous ammonia container

/equipment/

kg

15000

Diesel fuel tank volume,

/equipment/

tn

Min-2.0

0.90m³/0.74ton
Location of tank loading Pour over the tank loading

Special Purpose Truck 15ton ANFO Truck Borehole Charging Speed 200-450kg / Min

Special Purpose Truck 15ton ANFO Truck Borehole Charging Speed 200-450kg / Min

Special Purpose Truck 15ton ANFO Truck Borehole Charging Speed 200-450kg / Min

Special Purpose Truck 15ton ANFO Truck Borehole Charging Speed 200-450kg / Min

Technical service commitment:

1. The quality of granular ammonium frying agent mixed in the on-site mixing truck meets the requirements of GB17583.

2. When the car is used, Party B is responsible for training the user on safety, technology, equipment maintenance and repair, and is responsible for equipment commissioning and guiding trial production.

3. When the equipment is delivered, provide the operation, use and maintenance instructions of the listed pharmaceutical part, relevant information of the automobile chassis and process technical information.
