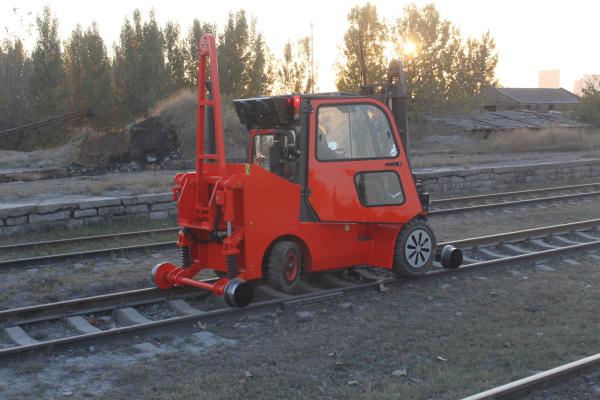

Customized Railking Trackmobile Tractor For Long Service Life HTRR103 Rail And Road
Customized Railking Trackmobile Tractor For Long Service Life HTRR103 Rail And Road
Specifications
Brand Name :
Shandong Haotong
Model Number :
HTRR103
Place of Origin :
Shandong Province, China
MOQ :
1 car
Price :
Negotiable/negotiable/telegraphic
Payment Terms :
Spot exchange
Supply Ability :
1 car /1 month
Delivery Time :
3 months
Rated towed tonnage :
500
Vehicle length * width (mm) :
6500/2200
Vehicle height (mm) :
2800
Coupler height (mm) :
880±10 (customizable)
Traction mode :
Bidirectional traction
Minimum radius of curvature (m) :
60
Minimum turning Radius (m) :
6
Applicable gauge (mm) :
1000/1435/1520 (customizable)
Description

Product introduction
HTRR103 type public railway dual-purpose vehicle series products, widely used in electric power, metallurgy, chemical, building materials, port, logistics and small freight yard and other railway special lines, as well as railway station section, locomotive depot, high-speed train section, subway and engineering bureau production and construction enterprises, is the locomotive, traction vehicles, iron cattle and other traction equipment replacement products. The tractor has obvious advantages in price, configuration and parameters, and can achieve arbitrary traction of different tonnage below 500 tons, and can accept customized production according to user needs.
First, advantages and characteristics
1, long service life, can be used for more than 10 years;
2, do not need a garage, do not occupy the work site and railway line.
3, cost-effective, energy saving, environmental protection, noise reduction.
4, unique technology, low speed large traction;
5, easy to operate, low labor intensity, a slightly trained driver can operate independently;
6, two-way traction, steering operation can not go through the switch;
7, maintenance is simple, low failure rate;
8, mobile and flexible, convenient road and railway conversion, shunting operation time is fast, reduce the truck delay fee;
2. System configuration
1, heating and air-conditioning system 2, emergency brake device
3, traffic monitoring system
4, anti-derailment system.
Iii. Parameters

Models/Projects HTRR103 (integrated body, steel wheel drive)
Rated towed tonnage 500
Vehicle length * width (mm) 6500/2200
Vehicle height (mm) 2800
Coupler height (mm) 880±10 (customizable)
Traction mode Bidirectional traction
Minimum radius of curvature (m) 60
Minimum turning Radius (m) 6
Applicable gauge (mm) 1000/1435/1520 (customizable)
Traction speed (KM/H) 0-10
Highway speed (KM/H) 0-20
Total body weight KG ≥12000
