Key Specifications/Special Features:

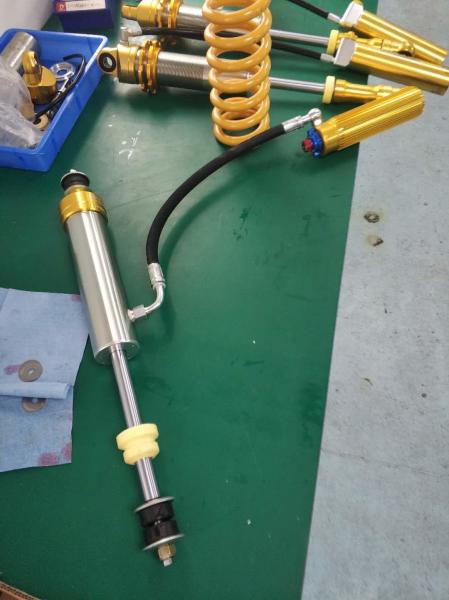

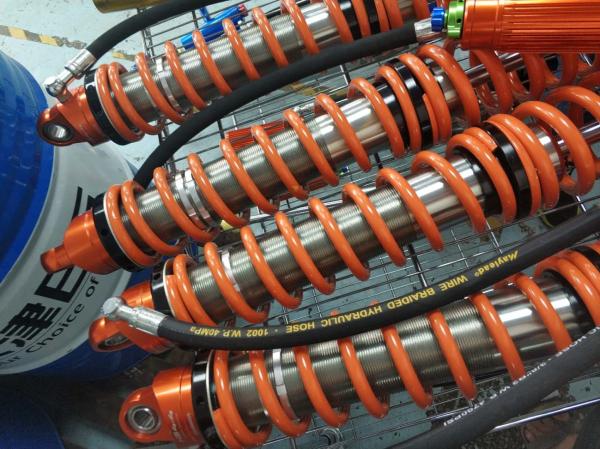

2.5 Racing suspension full OE kits coil over shock with 8 step adjustment 4x4 lift kits absorber
FEATURES
BODY: Smooth bore and honed seamless steel
BODY PLATING :Zinc plated for a long-lasting finish
COMPONENTS :Black anodized, CNC machined 6061-T6 billet aluminum

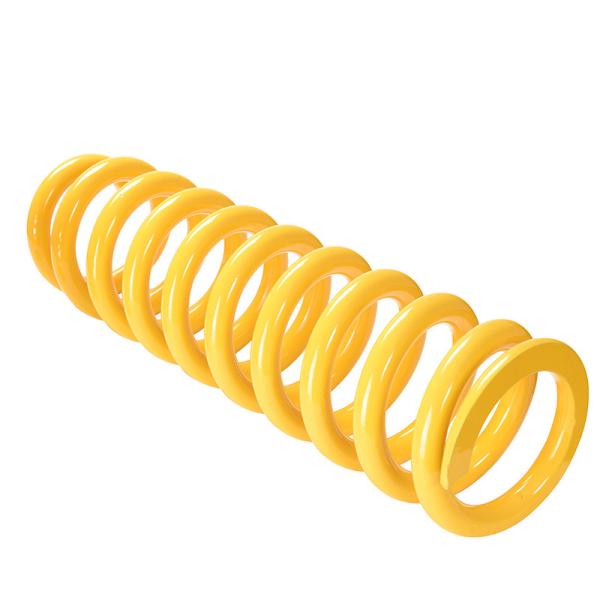

SPRING: Application specific adjustable 3.0" racing spring
PISTON: Heavy-duty powdered steel*
6061-T6 hard anodized high flow aluminum piston**
VALVING: Application specific to maximize performance
SEALS: Redundant sealing pack system, main seal, wiper seal, scraper seal
OIL: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
SHAFT: 7/8" hard chrome plated, heat-treated steel*
7/8" 17-4 H900 hard chrome plated stainless steel** BEARING :Spherical, PFTE-lined, heat-treated steel MOUNTING: Direct replacement for stock and aftermarket lift kits
MODEL
2.5 COIL-OVER IFP
2.5 COIL-OVER RESERVOIR
RESERVOIR
Internal
External
OPTIONS
DSC adjuster
ADJUSTMENTS
Ride height preload ring
» Optional DSC adjuster
» Ride height preload ring
