1 Ton 2 Ton Small Adjustable Durable Electric Pallet Forklift Battery Forklift 3 Meter Stacker
1 Ton 2 Ton Small Adjustable Durable Electric Pallet Forklift Battery Forklift 3 Meter Stacker
1 Ton 2 Ton Small Adjustable Durable Electric Pallet Forklift Battery Forklift 3 Meter Stacker
1 Ton 2 Ton Small Adjustable Durable Electric Pallet Forklift Battery Forklift 3 Meter Stacker
1 Ton 2 Ton Small Adjustable Durable Electric Pallet Forklift Battery Forklift 3 Meter Stacker
1 Ton 2 Ton Small Adjustable Durable Electric Pallet Forklift Battery Forklift 3 Meter Stacker
1 Ton 2 Ton Small Adjustable Durable Electric Pallet Forklift Battery Forklift 3 Meter Stacker
1 Ton 2 Ton Small Adjustable Durable Electric Pallet Forklift Battery Forklift 3 Meter Stacker
Specifications
Brand Name :
Bilon
Certification :
CE
Place of Origin :
China
MOQ :
1-10 pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
3000pcs in a month
Delivery Time :
15 days
Packaging Details :
Carton or wooden package
Min. Lifting Height :
45mm
Fork Length :
1000mm
Fork Width :
210-700mm
Weight (KG) :
1650 kg
Load center distance(mm) :
500mm
Overall Dimensions :
3150*940*1950mm
Description

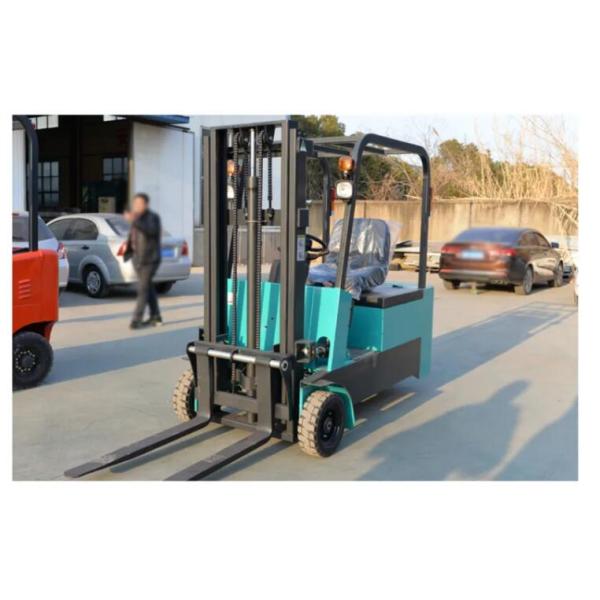

Hot Sale 1ton 2ton Small Adjustable Durable Electric Pallet Fork Lift for sale Battery Forklift 3 Meter Stacker

1, Portable forklift,small space, easy to use.
2,integrated bodywork roof to protect driver's safty more effectively.
3, wide view to monitor cargo and drop of cargo during operation.
4,The seat is equipped with an emergency power- off button that can cut off the power in the shortest possible time.
5Explosion-proof LED lamp,light after the front lighting, easy to operate at night

modelCPDS-15/18/20(C/H)-16/20/25/30/35
Load (kg)1500/1800/2000
Form of steelC/H
Lifting height (mm)1600/2000/2500/3000/3500
Frame static height (mm)2150/1950/1950/2150/2400
After lifting the total height (mm)2300/2650/3150/3650/4150
Load center distance (mm)500
Fork minimum clearance from the ground(mm)40
Wheelbase (mm)1540
Turning radius (mm)3460
Minimum channel requirement (mm)3300
Minimum ground clearance (body / gantry) (mm)120/120
Overhead guard height (mm)1940
Total length (with fork / without fork) (mm)3150/2150
Total body width (mm)940
Fork width (mm)210-700
Fork size (forging) mm1000*100*35
Chassis height from the ground (mm)80
Number of front / rear wheels (*=drive wheel)2/2+1*
Front/rear auxiliary wheel size (mm)590*179/250*80
Front track (mm)980
Front suspension (mm)430
Lifting speed (full load / no load) (mm/s)100/140
Falling speed (full load / no load) (mm/s)260/120
Driving speed (full load / no load) (km / h)4.5/5.5
Maximum gradient (full load / no load) (mm / s)5.0/8.0
TireVacuum pneumatic tire/Solid rubber tires
Driving methodSitting and driving
Drive formelectric
Braking methodElectromagnetic brake
Battery (V/AH)DC24/120AH*4P
Lift the motor2.2KW
Walking motor1.2KW
Hydraulic oil46#
Total Weight(KG)≈1850/2150/2350


1 Ton 2 Ton Small Adjustable Durable Electric Pallet Forklift Battery Forklift 3 Meter Stacker
1 Ton 2 Ton Small Adjustable Durable Electric Pallet Forklift Battery Forklift 3 Meter Stacker1 Ton 2 Ton Small Adjustable Durable Electric Pallet Forklift Battery Forklift 3 Meter Stacker
