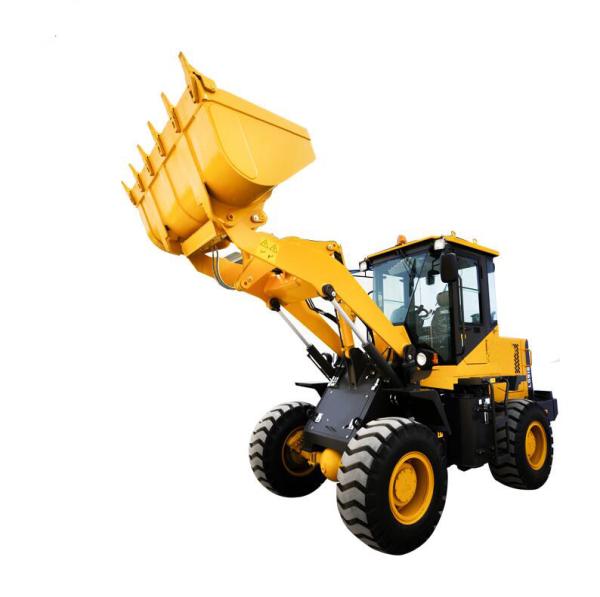

1.6 T Wheel Loader Machine With Single - Stage Three - Element Single - Turbine Torque Converter
1.6 T Wheel Loader Machine With Single - Stage Three - Element Single - Turbine Torque Converter
1.6 T Wheel Loader Machine With Single - Stage Three - Element Single - Turbine Torque Converter
1.6 T Wheel Loader Machine With Single - Stage Three - Element Single - Turbine Torque Converter
1.6 T Wheel Loader Machine With Single - Stage Three - Element Single - Turbine Torque Converter
1.6 T Wheel Loader Machine With Single - Stage Three - Element Single - Turbine Torque Converter
1.6 T Wheel Loader Machine With Single - Stage Three - Element Single - Turbine Torque Converter
1.6 T Wheel Loader Machine With Single - Stage Three - Element Single - Turbine Torque Converter
Specifications
Brand Name :
Bilon
Certification :
ISO
Place of Origin :
China
MOQ :
1-10pcs
Payment Terms :
L/C, T/T
Supply Ability :
3000 Set/Sets per Month
Delivery Time :
30 days
Packaging Details :
Nude
Type :
Front Loader
Rated Load :
1600kg
Dumping angle :
45
rated power :
52KW
Number of axles :
2
Description

916 Chinese High Performance Best Price 1.6Ton Wheel Loader Manufacturer

1,Type: Water-cooled, four stroke, direct injection

2,Torgue converter:single-stage three-element single-turbine torque converter

3,Type:Load sensing full hydraulic articulated steering

Overall dimension
L*W*H 5660*2084*2925mm
Wheel base 2235mm
Min. ground clearance 330mm
Max. dumping height 2450mm
Dumping distance 3080mm
Dumping angle 45
wheel tread 1580mm
steering angle 35
horizontal crossing radius 5065mm
Min. turning radius 4452mm
Overall parameters
Backet capacity 0.8(0.6-1.0)m3
Rated load 1600kg
operating weight 5000kg
Max. tractive force 45kN
Max. breakout force 44kN
Tipping load 32kN
Engine
Model YN36
Type Water-cooled, four stroke, direct injection
Rated power 52kW
Rated speed 2600r/min
Engine displacement 3612ml
Clylinder bore/stroke 4

1.6 T Wheel Loader Machine With Single - Stage Three - Element Single - Turbine Torque Converter1.6 T Wheel Loader Machine With Single - Stage Three - Element Single - Turbine Torque Converter
