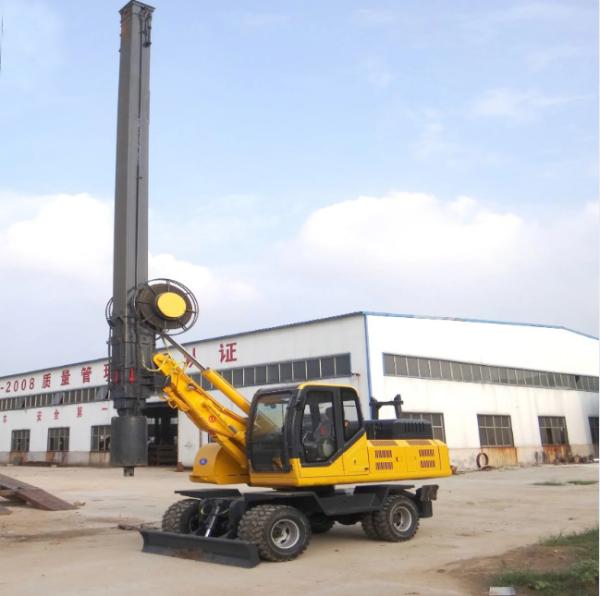

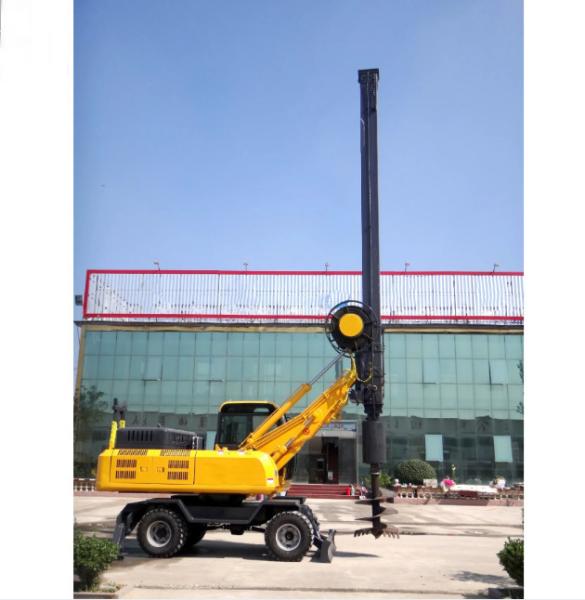

13m 110KW Road Construction Machinery Four Wheel Drive Rotary Drilling Rig
13m 110KW Road Construction Machinery Four Wheel Drive Rotary Drilling Rig
13m 110KW Road Construction Machinery Four Wheel Drive Rotary Drilling Rig
13m 110KW Road Construction Machinery Four Wheel Drive Rotary Drilling Rig
13m 110KW Road Construction Machinery Four Wheel Drive Rotary Drilling Rig
13m 110KW Road Construction Machinery Four Wheel Drive Rotary Drilling Rig
13m 110KW Road Construction Machinery Four Wheel Drive Rotary Drilling Rig
13m 110KW Road Construction Machinery Four Wheel Drive Rotary Drilling Rig
Specifications
Brand Name :
Bilon
Model Number :
13m
Certification :
CE
Place of Origin :
China
MOQ :
1-10 pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
3000pcs in a month
Delivery Time :
30days
Packaging Details :
Carton or wooden package
Depth :
13m
Drilling diameter :
500-1500mm
Power :
110kw
Type :
Four-Wheel Trailer
Weight :
10800kg
Specification :
8500*2250*3100mm
Description

13m 110KW Engine Drilling Machine Four-Wheel Drive Rotary Drilling Rig with 500-1500mm Drilling Diameter

1.Cummins electric control turbo-supercharged engine is used.It complies with Euro III emission standard,In addition,it has strong power,

which is sufficient to satisfy the construction on the plateau. Its noise is up to the national standard.

2.The new generation rotary drive adopts multi-gear control, self-adaptive techniques, and double buffering system which can increase

drilling efficiency and safety.

3.Highly automatization system,advanced hydraulic system and heavy wide chassis ensure efficient,safe and stable operation.

4.This machine is applicable to slop shield piles,civil construction,new rural construction,municipal construction,and the strata

Parameter

Model 13m
Working mode Pressure drilling
Drilling diameter mm 500-1500mm
Depth m 13
Dimension m 8500*2250*3100
Weight t 10.8
Tire model / 825-16
Engine Model / Weichai/Yuchai
Power kw 110
Rotation rate r/min 2400
Torque kn.m 22000-30000
Drilling rate r/min 30-50
Max.pull force kn 150
Max.stroke m 11-22
Rope diameter mm 18
Rotation angle ° 180
Speed km/h 30
Max.slope ° 25
Optional 1.Air conditioning
2.Electrical Machinery(6G,30kw)
3.Double pump(rate of flow 40/80)
4.Double dynamic model

13m 110KW Road Construction Machinery Four Wheel Drive Rotary Drilling Rig13m 110KW Road Construction Machinery Four Wheel Drive Rotary Drilling Rig
