360° Continuous Turntable Aerial Work Platform , Articulated Boom Trailer Mounted Cherry Picker
360° Continuous Turntable Aerial Work Platform , Articulated Boom Trailer Mounted Cherry Picker
360° Continuous Turntable Aerial Work Platform , Articulated Boom Trailer Mounted Cherry Picker
360° Continuous Turntable Aerial Work Platform , Articulated Boom Trailer Mounted Cherry Picker
Specifications
Brand Name :
KUDAT
Model Number :
GTBZ28
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 unit
Price :
negotiation
Payment Terms :
L/C at sight, T/T . Western Union, MoneyGram
Supply Ability :
500 units per month
Delivery Time :
30 working days after received your deposit
Packaging Details :
Naked packing
Working height maximum :
33.7m
Platform height maximum :
32m
Horizontal reach maximum :
24.4m
Platform Size :
1.83*0.91m
Wheelbase :
3.66m
Ground clearance-center :
43cm
Lift capacity (restricted) :
340kg
Platform rotation :
160°
Turntable Swing :
360°continuous
Drive speed -stowed :
4.4km/h
Gradeability -stowed (2WD) :
30%
Turning radius - outside :
6.56m
Description

360° Continuous Turntable Aerial Work Platform , Articulated Boom Trailer Mounted Cherry Picker

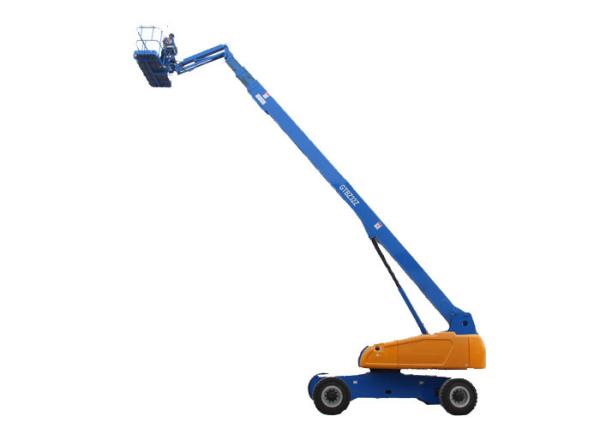

32M Telescopic Boom Lift Self-propelled Aerial Work Platform GTBZ32Z Rotary Telescopic Upright Mobile Boom Lift

Measurements Specifications:

MODEL GTBZ32

MEASUREMENTS Metric US

Working height maximum *

33.7m

111ft

Platform height maximum

32m

105ft

Horizontal reach maximum **

24.4m

80ft

Below ground reach

4.51m

15ft

A

Platform length-8ft model

0.91m

3ft

Platform length-6ft model

0.76m

2ft6in

B

Platform width-8ft model

2.44m

8ft

Platform width -6ft model

1.83m

6ft

C

Height-stowed

3.08m

10ft

D

Length-stowed

14.02m

46ft

E

Width –axle retracted

2.49m

8ft

Width –axle extended

3.35m

11ft

F

Wheelbase

3.66m

12ft

G

Ground clearance-center

0.43m

1ft5in

PRODUCTIVITY

Lift capacity (restricted)

480kg

1056lbs

Lift capacity (non-restricted)

340kg

748lbs

Platform rotation

160°

Jib rotation

135°

Turntable Swing

360°continuous

Turntable tailswing -axle retracted

1.82m

6ft

Turntable tailswing -axle extended

1.38m

5ft

Travel speed -stowed

4.4km/h

2.73mph

Travel speed -raised or extended

1.1km/h

0.68mph

Gradeability -stowed (4WD/2WD)

42%/30%

Turning radius inside

Turning radius - axle retracted outside

4.14m

13ft7in

6.56m

22ft

Controls

24V DC Proportional

Solid tires

12.00-20/8.5

POWER

Power source

Lovol 1004-4 78 hp (58kw)

Perkins 400 76 hp (56kw)

Cummins B3.3 75 HP (56kw)

Auxiliary power unit

24V DC

Hydraulic tank capacity

265L

Fuel tank capacity

150L

WEIGHT ***

2WD

18660kg

41140lbs

4WD

18740kg

41310lbs

STANDARDS COMPLIANCE EN280,JG/T5101,Q/ADZV001-2008
