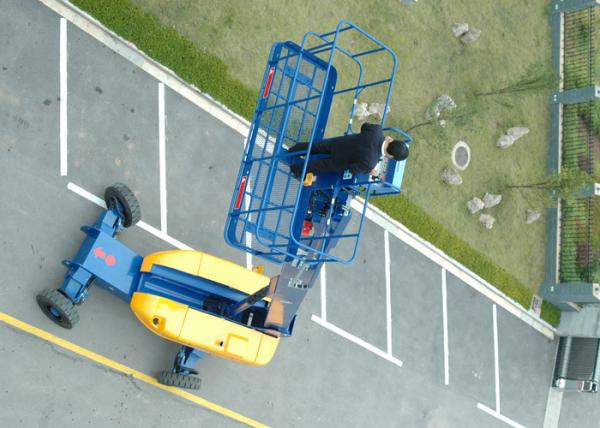

Diesel 36M Telescopic Hydraulic Boom Lift for Self Propelled Aerial Work 480KG Load Capacity
Diesel 36M Telescopic Hydraulic Boom Lift for Self Propelled Aerial Work 480KG Load Capacity
Diesel 36M Telescopic Hydraulic Boom Lift for Self Propelled Aerial Work 480KG Load Capacity
Diesel 36M Telescopic Hydraulic Boom Lift for Self Propelled Aerial Work 480KG Load Capacity
Diesel 36M Telescopic Hydraulic Boom Lift for Self Propelled Aerial Work 480KG Load Capacity
Diesel 36M Telescopic Hydraulic Boom Lift for Self Propelled Aerial Work 480KG Load Capacity
Diesel 36M Telescopic Hydraulic Boom Lift for Self Propelled Aerial Work 480KG Load Capacity
Diesel 36M Telescopic Hydraulic Boom Lift for Self Propelled Aerial Work 480KG Load Capacity
Specifications
Brand Name :
KUDAT
Model Number :
GTBZ36
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 unit
Price :
negotiation
Payment Terms :
L/C at sight, T/T . Western Union, MoneyGram
Supply Ability :
500 units per month
Delivery Time :
30 working days after received your deposit
Packaging Details :
Naked packing
Working height maximum :
38.34m
Platform height maximum :
36.64m
Horizontal reach maximum :
22.9m
Platform Size :
1.83*0.91m
Wheelbase :
3.66m
Ground clearance-center :
43cm
Lift capacity (restricted) :
340kg
Platform rotation :
160°
Turntable Swing :
360°continuous
Drive speed -stowed :
4.4km/h
Gradeability -stowed (2WD) :
30%
Turning radius - outside :
6.56m
Description

Diesel 36M Telescopic Hydraulic Boom Lift for Self Propelled Aerial Work 480KG Load Capacity

Measurements Specifications:

MODEL

GTBZ36

MEASUREMENTS

Metric

US

Working height maximum *

38.34m

126ft

Platform height maximum

36.64m

120ft

Horizontal reach maximum **

22.9m

75ft

Below ground reach

4.64m

15ft

Platform length-8ft model

0.91m

3ft

Platform length-6ft model

0.76m

2ft6in

Platform width-8ft model

2.44m

8ft

Platform width -6ft model

1.83m

6ft

Height-stowed

3.08m

10ft

Length-stowed

12.96m

43ft

Width –axle retracted

2.49m

8ft

Width –axle extended

3.35m

11ft

Wheelbase

3.66m

12ft

Ground clearance-center

0.43m

1ft5in

Lift capacity (restricted)

480kg

1056lbs

Lift capacity (non-restricted)

340kg

748lbs

Platform rotation

160°

Jib rotation

—

Turntable Swing

360°continuous

Turntable tailswing -axle retracted

1.82m

6ft

Turntable tailswing -axle extended

1.38m

5ft

Travel speed -stowed

4.4km/h

2.73mph

Travel speed -raised or extended

1.1km/h

0.68mph

Gradeability -stowed (4WD/2WD)

42%/30%

inside

Turning radius - axle retracted outside

4.14m

13ft7in

6.56m

22ft

inside

Turning radius - axle extendeded outside

2.74m

9ft

5.85m

19ft

Controls

24V DC Proportional

Solid tires

12.00-20/8.5

Power

Power source

Lovol 1004-4 78 hp (58kw)

Perkins 400 76 hp (56kw)

Cummins B3.3.80 HP (60kw)

Auxiliary power unit

24V DC

Hydraulic tank capacity

265L

Fuel tank capacity

150L

WEIGHT

2WD

20020kg

44144lbs

4WD

20100kg

44321lbs

STANDARDS COMPLIANCE EN280,JG/T5101,Q/ADZV001-2008
