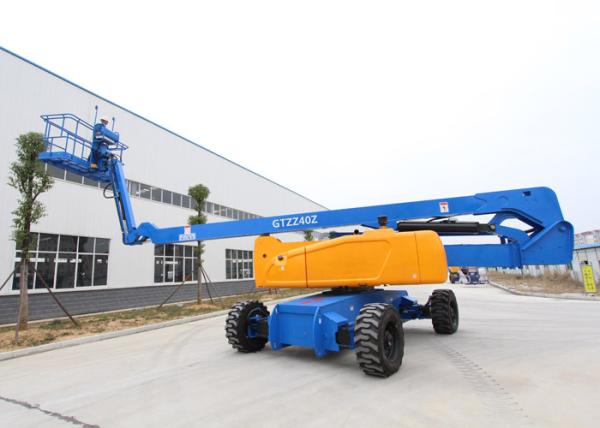

Cummins Engine Elevated Work Platform , Safe 4WD Electric Bucket Lift

40M SELF-PROPELLED ARTICULATED HYDRAULIC BOOM LIFT WITH 42M WORKING HEIGHT AND 480KG LIFTING CAPACITY

Measurements Specifications:

Features:

1. It is a self-propelled articulated boom lift.

2. It can realize the lifting upwards, onwards, etc.
3. The two-wheel and four-wheel driving mode, diesel, electric motor, double power sources, etc. are optional.
4. The working height ranges from 12m to 45m.
STANDARDS COMPLIANCE EN280,JG/T5101,Q/ADZV001-2008

1. Functions of positioning upward&outward and crossing

1. Functions of positioningupward&outward and crossingThearticulating boom machine offers

muti-faceted functions of positioningupward,outward and crossing, so that you can reach whatever placeyouwant to go through various ways.

2. Complete safety devices

Standard configuration include four-link weighing devices, overload protection, automated detection device for detecting platform amplitude and height (automatic amplitude limiter), automatic control of

the movement speed of the boom and traveling speed, and high-precision load sensor, to ensure the safety and stability of operation in all directions.

5. Strobe light------Give alerting signal when working

6. Rotary platform------The rotary actuator with standard configuration can make the rotation range

of the platform reach ±80°, which makes your work more flexible.

7. Active oscillation axle

Active oscillation axle can preceive the terrain, and can guarantee that the

machine can land on four wheels even on uneven road without reducing the

driving force

8. Swing-out engine tray It is easy for maintenance and repair

9. Hydraulic system

Closed circuit hydraulic traveling system has speed easily to be adjusted, wide speed range; the boom's hydraulic

system adopts double value core circuit. which enhance the safety. The

hydraulic components adopt European and North American pure brands.

10. Driving mode 4*4(optional)

The four-wheel drive is powerful with great grade-ability

11. Production plant
