Telescopic / Articulating Type Mobile Aerial Platform , Outdoor Aerial Working Man Lift for Rent
Telescopic / Articulating Type Mobile Aerial Platform , Outdoor Aerial Working Man Lift for Rent
Telescopic / Articulating Type Mobile Aerial Platform , Outdoor Aerial Working Man Lift for Rent
Telescopic / Articulating Type Mobile Aerial Platform , Outdoor Aerial Working Man Lift for Rent
Telescopic / Articulating Type Mobile Aerial Platform , Outdoor Aerial Working Man Lift for Rent
Telescopic / Articulating Type Mobile Aerial Platform , Outdoor Aerial Working Man Lift for Rent
Specifications
Brand Name :
KUDAT
Model Number :
GTZZ14
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
USD48300-USD49000 per unit
Supply Ability :
100 units per month
Delivery Time :
30 working days after received your deposit
Packaging Details :
Naked packing
Platform height maximum :
14.2m
Horizontal reach maximum :
7.47m
Platform Size :
1.83*0.76m
Lift capacity (restricted) :
227kg
Platform rotation :
180°
Turntable Swing :
360° continuousss
Drive speed -stowed :
5.6km/h
Power source :
Cummins B3.3NA-C60 4 60HP (45kw)
Description

Telescopic / Articulating Type Mobile Aerial Platform , Outdoor Aerial Working Man Lift for Rent

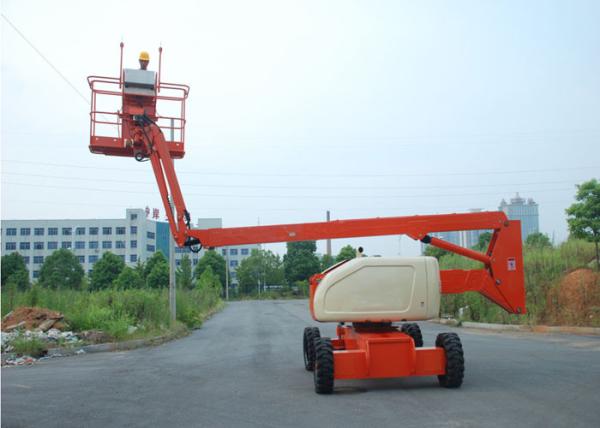

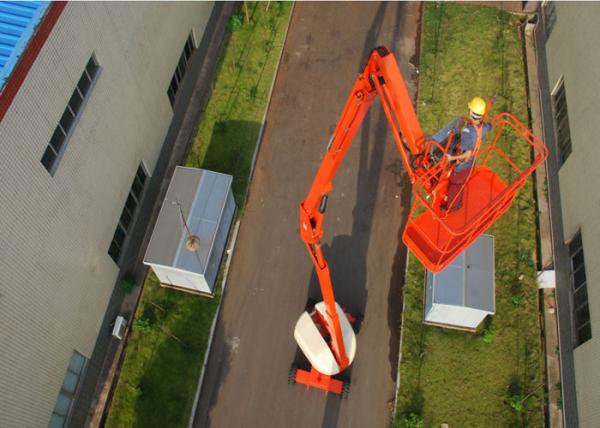

Articulated boom lift GTZZ14 for work on urban road, suburban road, highway, airport, bridges

Specifications:

MODEL GTZZ 14

MEASUREMENTS

Metric

US

Working height maximum

15.9m

50ft7in

Platform height maximum

14.2m

45ft

Horizontal reach maximum

7.47m

24ft6in

A

Platform length-8ft model

76cm

30in

C

Platform width-8ft model

1.83 m

6ft

D

Height-stowed

2.26 m

7ft5in

E

Length-stowed

6.50 m

21ft5in

B

Width

2.08 m

6ft10in

F

Wheelbase

2.0 m

6ft6in

G

Ground clearance-center

36cm

14in

Lift capacity (restricted)

227kg

500Ibs

Platform rotation

180°

Turntable Swing

360°non-continuousss

Turntable tail swing

0

Drive speed -stowed

5.6km/h

3.5mph

Gradeability -stowed (2WD)

30%

Turning radius - inside

1.73m

5ft8in

Turning radius – outside

4.27m

14ft

Controls

24V DC Proportional

Solid tires

33/12-20 D625

POWER

Power source

Cummins B3.3NA-C60 4 60HP (45kw) Perkins 400 61hp (45.5kw)

Auxiliary power unit

24V DC

Hydraulic tank capacity

113.6L

30gal

Fuel tank capacity

62.5 L

16.5gal

2WD

7384kg

16264lbs

STANDARDS COMPLIANCE

EN280,JG/T5101,Q/ADZV001-2008

Description:

Our boom lift can be divided into two types, telescopic type and articulating type. Our telescopic boom lift is powered by an internal combustion engine, 4*4 driving mode and 4*2 driving mode are available for you to choose. This type of aerial working platform with a wide operation range, it could be used to handle aerial operation for a variety of rough terrain. Currently it is mainly applied for building construction, bridge building, ship building, outdoor advertisement facility installation, as well as construction of airport, mine, port and more.

Features:

1. It is a self-propelled articulated boom lift.
2. It can realize the lifting upwards, onwards, etc.
3. The two-wheel and four-wheel driving mode, diesel, electric motor, double power sources, etc. are optional.
4. The working height ranges from 12m to 26m.
5. The horizontal reach of the self-propelled articulated boom lift ranges from 7m to 13.3m.
