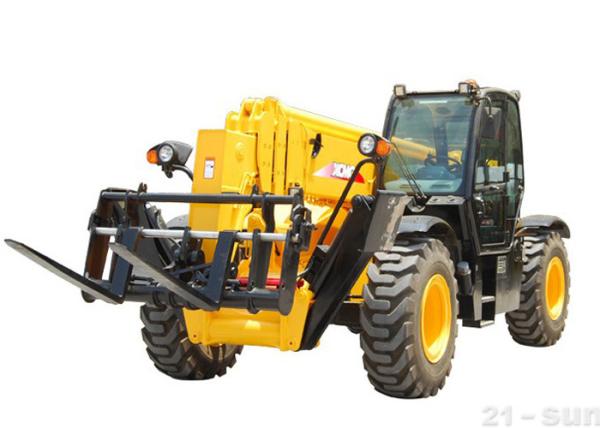

Diesel XCMG Telescopic Boom Forklift , 82KW Engine Power Rough Terrain Forklift
Diesel XCMG Telescopic Boom Forklift , 82KW Engine Power Rough Terrain Forklift
Diesel XCMG Telescopic Boom Forklift , 82KW Engine Power Rough Terrain Forklift
Diesel XCMG Telescopic Boom Forklift , 82KW Engine Power Rough Terrain Forklift
Diesel XCMG Telescopic Boom Forklift , 82KW Engine Power Rough Terrain Forklift
Diesel XCMG Telescopic Boom Forklift , 82KW Engine Power Rough Terrain Forklift
Diesel XCMG Telescopic Boom Forklift , 82KW Engine Power Rough Terrain Forklift
Diesel XCMG Telescopic Boom Forklift , 82KW Engine Power Rough Terrain Forklift
Specifications
Brand Name :
KUDAT
Model Number :
XC6-4517
Certification :
ISO / CE
Place of Origin :
China
MOQ :
1 unit
Price :
negotiation
Payment Terms :
L/C at sight, T/T or western Union
Supply Ability :
1500 units per month
Delivery Time :
20 working days after received L/C or your deposit
Packaging Details :
Naked packing in container
Power type :
Diesel
Max lifting capacity :
4500 kg
Maximum forward reach :
12.6 m
Reach at maximum lift height :
10.63 m
Rated power :
82 kw
Tread :
2060 mm
Fork length :
1200 mm
Max.traction(without load) :
74.73 KN
Max.Travel speed :
38 km/h
Min.ground clearance :
400mm
Operating weight :
13600 kg
Description

Diesel XCMG Telescopic Boom Forklift , 82KW Engine Power Rough Terrain Forklift

XCMG Telescopic Forklift loader XC6-4517 ( Old XT680-170 ) Telehandler With 13600KG Working Height And 82KW Engine Power

Features:

Telescopic Forklift is a kind of Multi-functional engineering machinery .It can be used for lift and carry, with good stability and efficiency. It has compact frame, flexible operation, sensitive lift, automatic adjustment, high carrying capacity.
Adopting the Cummins engine which is powerful and with low maintenance. Reach Europe III(EPA Tier3) exhaustion standard, big torque force.
Equipped with power transmission, compact structure, high rigidity.
With articulated frame, small turning radius.
Wheel drive, steering by front wheel, and so on.
The driver′s cabin is furnished with the system of the air conditioner, It is safe and comfortable, and the visual field is broad. It adopts shock attenuation, which improved the comfortableness of the operating
Fully sealed wet multi-disc brakes in the wheel heads are protected from environmental influences.
Multi-function instrument can be chosen It is a kind of machinery which is suitable for lifting and carrying in narrow ground.

Specifications:

Description

Parameter

Unit

Working weight

13600

kg

Engine power

82

kW

Max.capacity

4500

kg

Max.lift capacity to full height

2269

kg

Max.lift capacity at full reach

453

kg

Lifting height

16700

mm

Max.reach at full height

1063

mm

Max.forward reach

12600

mm

Wheel base

3900

mm

Tread

2060

mm

Min.ground clearance

400

mm

Overall length(backend to frok)

6890

mm

Max.length(tail to the front tires)

5680

mm

Max.width(including outrigger)

2500

mm

Max.height(including toplight)

2815

mm

Fork length

1200

mm

Length of suspension

1055

mm

Adjust angle of frame

Left

10

°

Right

10

°

Departure angle

46

°

Foront tilt angle of attachments

90

°

Back tilt angle of attachments

18

°

Max.depression angle(outrigger not on ground)

-4

°

Max.elevation(outriggers on ground)

73

°

Cab internal width

945

mm

Max.traction(without load)

74.73

kN

Min.turning radius(tires lateral)

4860

mm

Max.climbing ability

33.2

°

Traveling speed

Forward Ⅰ

6.41

km/h

Forward Ⅱ

10.64

km/h

Forward Ⅲ

22

km/h

Forward IV

37.17

km/h

Back Ⅰ

6.37

km/h

Back Ⅱ

10.59

km/h

Back Ⅲ

21.8

km/h

Back IV

37.04

km/h
