Coal Reserve Site / Desert Crawler Bulldozer 180HP Hydraulic Manual Operating
Coal Reserve Site / Desert Crawler Bulldozer 180HP Hydraulic Manual Operating
Coal Reserve Site / Desert Crawler Bulldozer 180HP Hydraulic Manual Operating
Coal Reserve Site / Desert Crawler Bulldozer 180HP Hydraulic Manual Operating
Coal Reserve Site / Desert Crawler Bulldozer 180HP Hydraulic Manual Operating
Coal Reserve Site / Desert Crawler Bulldozer 180HP Hydraulic Manual Operating
Coal Reserve Site / Desert Crawler Bulldozer 180HP Hydraulic Manual Operating
Coal Reserve Site / Desert Crawler Bulldozer 180HP Hydraulic Manual Operating
Specifications
Brand Name :
KUDAT
Model Number :
T120N
Certification :
Ghost/ISO
Place of Origin :
China
MOQ :
1 unit
Price :
negotiation
Payment Terms :
L/C at sight, T/T or western Union
Supply Ability :
300 units per month
Delivery Time :
30 working days after received L/C or your deposit
Packaging Details :
Naked packing
Product Name :
Crawler bulldozer
Max. torque :
526 N.m
Engine flywheel power :
93KW / 127HP
Ground pressure(without ripper) :
51 KPa
Operating weight(not including ripper) :
13000KGS
Digging depth :
400 mm
Max. towing force :
115 kn
Fuel consumption rate :
≤235 g/kw.h
Description

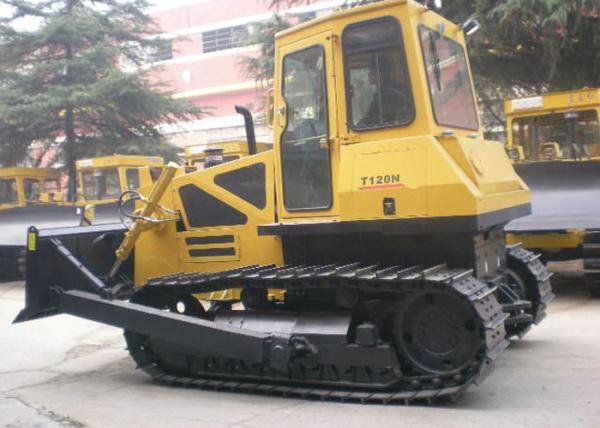

Coal Reserve Site / Desert Crawler Bulldozer Hydraulic Manual Operating

180HP Power Middle Crawler Bulldozer T120N for Engineering Construction , Mining project

Feature:

1) Engine choose the pressure rising engine produced by British Ricardo joint=venture technology,low oil consumption and stronger torsion.

2) Turning clutch:choose dry and multi-piece turning clutch,manually operating with hydraulic pressure, easily maintenance ,lightly and convenient operation.

3) Filter applied in desert is more applicable for coal reserve site ,desert and other special work condition.

4) Operation environment is fully closed , hexahedral cab with lower noise ,effiectively reducing noise beside your ear ,extending your visual field and effectively improving comfort.

5) Electric system is characterized by electronic monitor ,making real-time monitor for complete machine to assure normal operation.

6) Operationi device several device such as direct-pouring shovel .environmentally hygienic ,angle shovel .coal-pushed shovel and soil scarifier are available for user.

Specification:

Main Specification Unit 　
Total weight kg 13000
Max towing force kN 115
Engine model 　 LR6A3Z-20
Engine rated power kw 93
Engine rated speed r/min 2000
Fuel Consumption of the engine g/kw.h ≤235
Engine max torque N.m 526
Traveling speed 　 　
Forward I-IV gears km/h 2.4~10.6
Reverse I-II gears km/h 3.8~7.0
Max slope angle ° ≥30
Caterpillar track board width mm 500
Land pressure Kpa 51
Overall length mm 4535
Overall width mm 3135
Overall height mm 2900
Blade width mm 3135
Blade height mm 970
Blade max lifting height mm 894
Blade max digging depth mm 400
Cutting angle(adjustable) ° 55
