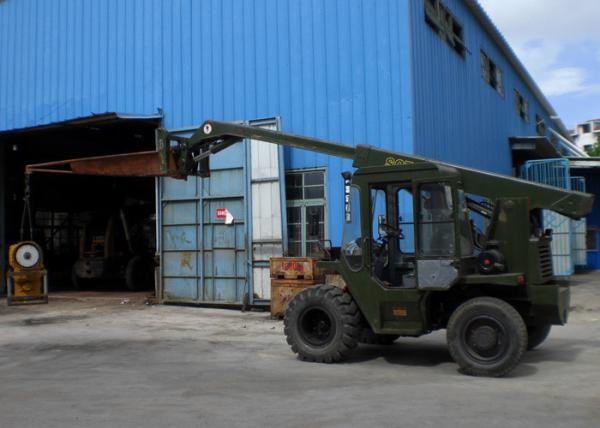

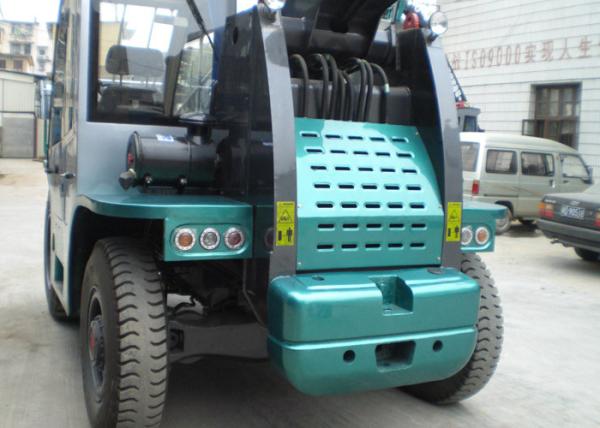

3.5 Ton Max lifting capacity Telescopic Boom Forklift , Diesel Small Knuckle Boom Crane
3.5 Ton Max lifting capacity Telescopic Boom Forklift , Diesel Small Knuckle Boom Crane
3.5 Ton Max lifting capacity Telescopic Boom Forklift , Diesel Small Knuckle Boom Crane
3.5 Ton Max lifting capacity Telescopic Boom Forklift , Diesel Small Knuckle Boom Crane
3.5 Ton Max lifting capacity Telescopic Boom Forklift , Diesel Small Knuckle Boom Crane
3.5 Ton Max lifting capacity Telescopic Boom Forklift , Diesel Small Knuckle Boom Crane
3.5 Ton Max lifting capacity Telescopic Boom Forklift , Diesel Small Knuckle Boom Crane
3.5 Ton Max lifting capacity Telescopic Boom Forklift , Diesel Small Knuckle Boom Crane
Specifications
Brand Name :
Visbull
Model Number :
SCZ35-4
Certification :
ISO / CE
Place of Origin :
China
MOQ :
1 unit
Price :
negotiation
Payment Terms :
L/C at sight, T/T or western Union
Supply Ability :
1500 units per month
Delivery Time :
20 working days after received L/C or your deposit
Packaging Details :
Naked packing in container
Power type :
Diesel
Max lifting capacity :
3500 kg
Capacity @ Max Reach :
1000 kg
Max forward reach :
3620 mm
Reach @ Max height :
1000 mm
Max lifting height :
6000 mm
Lift speed @ payload :
0.35 m/s
Min Turning diameter :
15500 mm
Max Travel Speed :
30 km/h
Min Height of Forks :
350 mm
Operating Weight :
8000kg
Description

3.5 Ton Max lifting capacity Telescopic Boom Forklift , Diesel Small Knuckle Boom Crane

Telecopic Handler SCZ35-4 Multifunction Diesel Telescopic Forklift With 3.5Ton Rated Capacity And 6M Max. Lifting Height

Specifications:

Item

Unit

Parameter

Max lifting capacity

kg

3500

Capacity @ Max Reach

kg

1000

Max forward reach

mm

3260

Reach @ Max height

mm

1000

Max lifting height

mm

6000

Lift speed @ payload

m/s

0.35

Flex speed

m/s

13

Max Travel Speed

km/h

30

Min Height of Forks

mm

350

Min turning diameter

mm

15500

Gradeability

%

20

Operating Weight

kg

8000

Engine

(CUMMINS)

Model

4BT3.9-C80

Rated power

kw

60

Rated speed

r/min

2000

Peak Torque

330N.m/1500r/min

Displacement

L

3.9

Compression Ratio

17.5:1

Tire

Front

16/70-20

Rear

8.25-20-14

Description:
The working device is two-segment,quadrilateral telescopic boom,and fork lateral displacement unit adopted in normal type.

This boom loader is mainly used to handle the unloading and loading of materials which piled on trays to containers as well as pilling,stocking and short distance transporting.It is a kind of multi-purpose using,efficient and convenient machine for loading and unloading, hosting,transporting in mineral yards,planet,construction spots,ports,public works, furthermore optional accessories could be choose by user include bucket, hook, boom.The loading heigh and the cross country performance of our products are much excellent than regular forklift trucks.

Main Features:
The Telescopic wheel loader (SCZ35-4) for almost any task that involves lifting, moving or placing objects or materials. It works with Four-Wheel Drive, hydro mechanical transmission, hydraulic Power Steering, Hydraulic brake, and Rear-Wheel Steering. The handling equipment is Telescopic boom, standard model installs moving fork. Besides smooth joystick controls and a wide range of attachments, we also can offer the right machine meet your specific requirements. Shovel loader, derrick boom and hook for selecting to install.

3.5 Ton Max lifting capacity Telescopic Boom Forklift , Diesel Small Knuckle Boom Crane

3.5 Ton Max lifting capacity Telescopic Boom Forklift , Diesel Small Knuckle Boom Crane3.5 Ton Max lifting capacity Telescopic Boom Forklift , Diesel Small Knuckle Boom Crane

3.5 Ton Max lifting capacity Telescopic Boom Forklift , Diesel Small Knuckle Boom Crane

3.5 Ton Max lifting capacity Telescopic Boom Forklift , Diesel Small Knuckle Boom Crane
