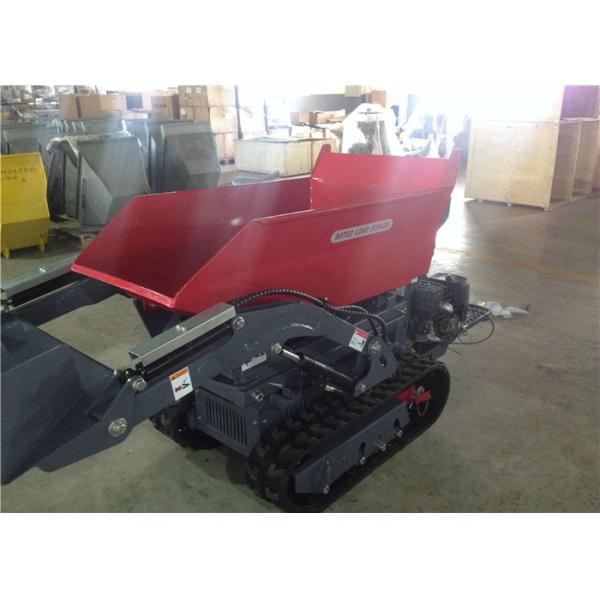

Gasoline Engine Mini Concrete Dumper For Construction Industry 140cm Lifting Height
Gasoline Engine Mini Concrete Dumper For Construction Industry 140cm Lifting Height
Gasoline Engine Mini Concrete Dumper For Construction Industry 140cm Lifting Height
Gasoline Engine Mini Concrete Dumper For Construction Industry 140cm Lifting Height
Specifications
Brand Name :
Visbull
Model Number :
KD800
Certification :
CE/SGS/ISO
Place of Origin :
China
MOQ :
1unit
Price :
US$4900-US$5500 per unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1,000pcs per month
Delivery Time :
25-30 working days after received your advance payment
Packaging Details :
Nude packing in container.
Payload :
800kgs
Max Pressure :
150bar
Hydraulic Motors :
2x Orbital
Engine :
B&S 13HP or HONDA GX390 13HP or CHINA Diesel Engine
Lifting Height :
140cm
Track roller :
3
Max Travel Speed :
5.0 km/h
Dimensions :
2280*920*1200mm
Weight :
650kgs
Hydraulic Pump :
Piston Pump
Color :
Red
HS CODE :
8428909090
Standard Track Width :
180mm
Skip Tipping System :
Hydraulic
Transmission System :
Hydraulic System
Brake Parking :
Mechanical
Main Valve :
2-3way
Cooler System Oil :
Air
Description

Gasoline Engine Mini Concrete Dumper For Construction Industry 140cm Lifting Height

800kgs Gasoline Engine Mini Dumper With Air Cooler System And 140cm Lifting Height For Site Works

800kgs Gasoline Engine Mini Dumper With

Self - Loading Shovel And Hydraulic Transmission


Specifications:

Specification

KD800

Tracked power barrow

Engine

B&S 13HP or HONDA GX390 13HP or CHINA Diesel

Engine

Weight

650KG

Transmission system

Hydraulic system

Type: Hydrostatic

Hydraulic Pump: Piston Pump

Hydraulic Motors: 2x orbital

Max Pressure: 150bar(2180psi)

Brake Parking: Mechanical

Main Valve: 2-3way

Cooler system oil: air

Skip Tipping System: Hydraulic

Loading Capacity

800kg ,lifting for 800kg

Lifting Height

1.4M

Standard Track Width

180mm(7.1in)

Track roller

3

Rockling rollers and track tensioning

Yes

Max Travel Speed

5.0 km/h

Dimension

228*92*120(retort stand)

SELF LOADING SHOVEL

Yes

HI-TIP

Yes 1.4m


Competitive Advantage:

1 . Easy and comfortable operation due to the intuitive controls.

2 . Self loading shovel not only can be used as a small excavator but also keep the balance of the machine during unloading.

3 . Easy climbing and stable crossing the obstacles.

4 . Spot turning, mini slipping.

Description:

1. The max loading weight is 800kgs .

2. With B&S 13HP or HONDA GX390 13HP or Diesel Engine

3. Hydraulic Transmission case

4 . Efficiency of transportation by transportation, loading, unloading and dumping ability.

5. Lifting height reaches to 1.4m by X - Support .


Applications:

Dumpers are widely used in many different of site works, such as Building construction industry,

landscaping,gardening,farming,stables renting and so on.

Gasoline Engine Mini Concrete Dumper For Construction Industry 140cm Lifting Height
