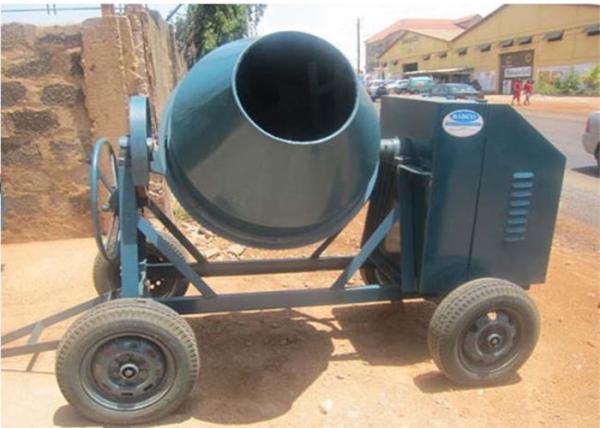

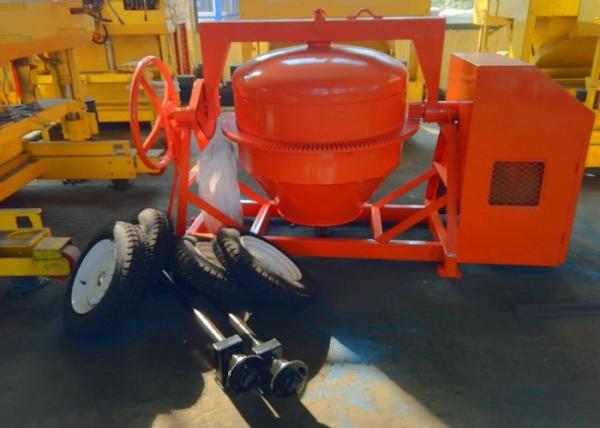

175L Mini Diesel Concrete Mixing Machine With Hydraulic Hopper , 13KW Diesel Engine
175L Mini Diesel Concrete Mixing Machine With Hydraulic Hopper , 13KW Diesel Engine
175L Mini Diesel Concrete Mixing Machine With Hydraulic Hopper , 13KW Diesel Engine
175L Mini Diesel Concrete Mixing Machine With Hydraulic Hopper , 13KW Diesel Engine
175L Mini Diesel Concrete Mixing Machine With Hydraulic Hopper , 13KW Diesel Engine
175L Mini Diesel Concrete Mixing Machine With Hydraulic Hopper , 13KW Diesel Engine
Specifications
Brand Name :
Visbull
Model Number :
TDCM175-6DB
Certification :
CE/SGS/ISO9001
Place of Origin :
China
MOQ :
1Unit
Price :
Negotiation
Payment Terms :
D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1,000pcs per month
Delivery Time :
25-30 working days after received your payment
Packaging Details :
Nude packing in container.
Capacity Of Discharge :
580L
Capacity Of Loading :
280L
 Productivity :
4.5m3 / H
Mixing Time :
40 sec.
Steel Thickness Of Drum :
4mm
Operation :
Maunally Fed
Overall Size :
3720×1160×1860mm
Weight :
650kg
Power :
13KW
Power Source :
Diesel Engine
Description

175L Mini Diesel Concrete Mixing Machine With Hydraulic Hopper , 13KW Diesel Engine

Specifications:

Model TDCM175-6DB
Drum total volume (litres) 580
Unmixed capacity(litres) 280
Mixing capacity(litres) 175
Output per hour(m3) 4.5
Drum rolation(rpm) 21-25
Engine Changfa R180BN diesel 5.67KW,Water cooling diesel manual start
Steel thickness of drum(mm) 4
Weight(kg) 650kg
Overall size(mm) 3720L*1160W*1860H
Container loading 24unit in 40HQ

Performance:

A rigged with advanced metallurgy and technology. Designed to perform for continuous mass concreting

toughness required at any site Machine

Chassis: Made from rectangular & square tubular sections of high strength

Drum:

Large drum with 20% overload capacity. Fabricated from rolled steel plates. Its bevel shaped and revolvesnoiselessly on a single hot blasted ci gear. A quick homogeneous mix with enhanced daily

output is guaranteed

Hopper:

Top Covered ,Centrally Supported Hopper mounted on rectangular tube loaded arm ,Specifically designed for rapid discharge

Operation Safety :

1 . Light, smooth and positive linkages allows operator fatigue working

2 . Full covered moving parts and dampeners provided in compliance with safety regulations

3 . Ample space in the engine compartment facilitates air circulation and convenience in maintenance.

After got the complaint from the clients, first need got the following information:
1. Photos, video and problems description (as more details as better)
2. Checking the machine’s seal No., Engine No. and the date of arrived. Asking the clients supply the working hour
3. If it is in the warranty, supply free parts according the warranty policy; If not, supply necessary technical supply to help client fix the problem and offer paid parts
4. Ask the part No. according the part catalogue when fixed the problem and supply the parts

175L Mini Diesel Concrete Mixing Machine With Hydraulic Hopper , 13KW Diesel Engine

175L Mini Diesel Concrete Mixing Machine With Hydraulic Hopper , 13KW Diesel Engine
