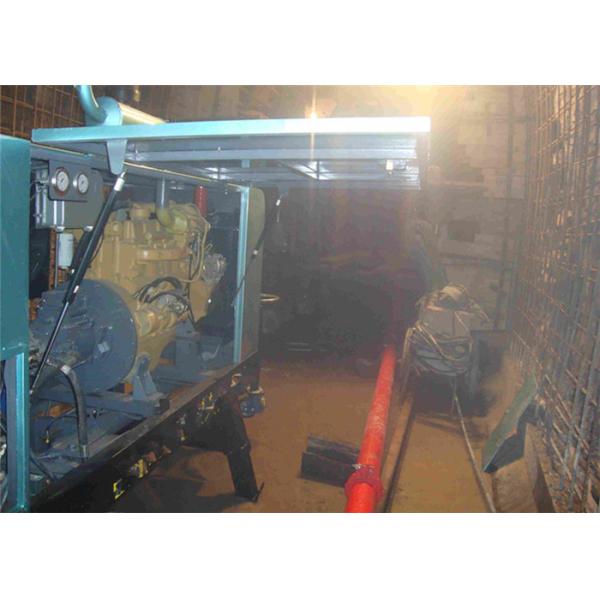

150M Delivery Tube Diesel Trailer Mounted Concrete Pump For Concrete Pumping Works

80m3/h Diesel Trailer - Mounted Concrete Pump HBT80SDA - 1816 With 150M Delivery Tube For Concrete Pumping Works

80m3/h Diesel Concrete Pump HBT80SDA - 1816 With

175KW Diesel Engine For Concrete Pumping Works

Specifications:

Applications:

1 . Conveying floor heating lightweight foamed cement, mortar, fine aggregate concrete

2 . Conveying refractory and insulation materials

3 . Conveying greening soil in ecological environment construction

4 . Conveying all kinds of engineering construction in the plain concrete, fiber concrete

5 . Pressure grouting of foundation pile

Description:

1 . Intelligent power control system to regulate the engine speed automatically, for smooth and efficient

operation

2 . Plunger pump with constant power, to ensure the efficiency of main engine

3 . Good sealing S-valve, installed with floating wear resistant ring

4 . High-quality wear resistant alloy components for long service-life

5 . High delivery pressure for demand of high-rise and long distance projects

6 . Air cooling system, without dependence of external water

7 . PLC system to ensure best control performance

8 . With re-pumping function to smooth construction of better accessibility

9 . Equipped with wired remote controller, easy to operate

Competitive Advantage:

1 . Using Bosch Rexroth of Germany to supply hydraulic components. Its high reliability and longer

economic life will enhance the overall quality of the machine as a whole.

2 . Adopting double pumps double returning inflow open hydraulic pressure system, so that oil out

pumping and direction switching are operating independently, rendering the system simpler and

more reliable.

3 . Using returned oil filter technology to prevent alien Objects from entering the hydraulic circuit,

further Improving the reliability of the system.

4 . Using the anti-wear hydraulic oil specially made by Esso of US enhacing durability of the machine

5 . S Valve and gate valve pumps are all equipped with Pressure regulating device which is quicker,

more reliable and oil does not leak out.

6 . The S pipe is mounted in whole with high grade manganese steel and the fractioning surface is

welded up with anti - wear materials and thus, possessing and being wear resistant. The smooth

and non accumulating design of the interior of the pipe gives a smooth concrete flow hence further

improving the efficiency.

7 . The high wearing part and cutting ring of the so called “eye-glass” plate of the S valve is made of

wear resistant alloy to increase its economic life.

8 .The stirring and mixing system use a specially designed double enclosed structure, further improving

sealing of the system and giving a more effective protection of the motor.

9 . Humanized and artificially intelligent electronic Control system makes operation simple

10 . Using a central programmable control unit (PLC) with various preinstalled programs for various auto

protection modes, which ensures and strengthens the reliability of the system.

11 . Fully enclosed electrical control box enables the Machine to function normally in adverse environ - Ments.

12 . Key electrical components have been sourced from world famous brands such as Scheneider

of France, Mitsubishi and Panasonic of Japan, which guarantees product reliability and a low

failure rate.
