1000 kg Rated load 0.5M3 Bucket Mini Front End Wheel Loader ZL10F with Quick Coupler
1000 kg Rated load 0.5M3 Bucket Mini Front End Wheel Loader ZL10F with Quick Coupler
1000 kg Rated load 0.5M3 Bucket Mini Front End Wheel Loader ZL10F with Quick Coupler
1000 kg Rated load 0.5M3 Bucket Mini Front End Wheel Loader ZL10F with Quick Coupler
1000 kg Rated load 0.5M3 Bucket Mini Front End Wheel Loader ZL10F with Quick Coupler
1000 kg Rated load 0.5M3 Bucket Mini Front End Wheel Loader ZL10F with Quick Coupler
1000 kg Rated load 0.5M3 Bucket Mini Front End Wheel Loader ZL10F with Quick Coupler
1000 kg Rated load 0.5M3 Bucket Mini Front End Wheel Loader ZL10F with Quick Coupler
Specifications
Brand Name :
Visbull
Model Number :
ZL10E
Certification :
CE/EMARK/GHOST/ISO
Place of Origin :
CHINA
MOQ :
1 unit
Price :
negotiation
Payment Terms :
L/C at sight, T/T or western Union
Supply Ability :
1500 units per month
Delivery Time :
10 working days after received L/C or your deposit
Packaging Details :
Naked packing in container
Product name :
mini Wheel loader
Rated power :
25.2KW
Rated loading weight :
1.0 ton / 1000KG
Operating weight :
2300KG
Rated bucket capacity :
0.5 CBM
Reach distance :
1080 mm
Dumping height :
2300 mm
Max.break out force :
24.6 KN
Description

1000 kg Rated load 0.5M3 Bucket Mini Front End Wheel Loader ZL10F with Quick Coupler

1000 kg 0.5M3 Bucket mini Wheel Loader ZL10F with Quick Coupler

Features

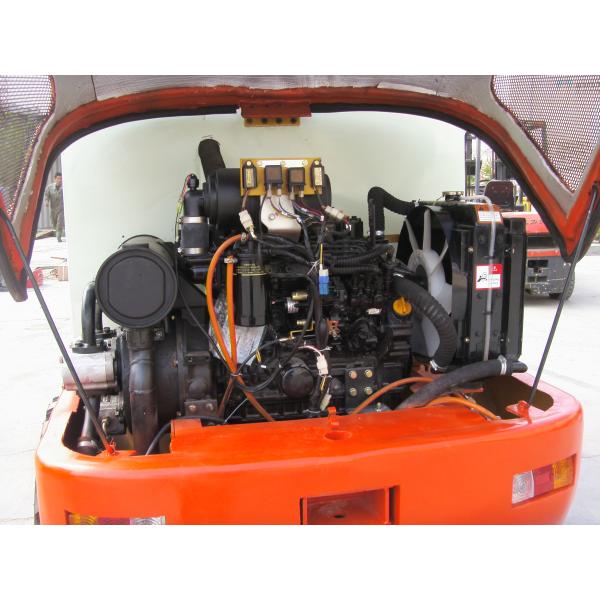

1. The SWM610 wheel loader uses the Japan Yanma engine that has the advantages of small engine sound, high power, and low oilconsumption.


2. Equipped with the electronically controlled traveling and manipulation system, the wheel loader can greatly reduce the labor intensity.


3. The wheel loader is equipped with an advanced hydraulic system.


4. It has a reliable torque converter, gearbox and drive axle.


5. The wheel loader has a highly reliable brake system.


6.Using the hard structural parts and powerful working device, the wheel loader can strengthen the excavating force.


7. The wheel loader features unique machine design, perfect color matching and high-comfort.

Technical Specifications

Main Technical Parameter of SWM610
Item Parameter
Rated load (kg) 1000
Bucket capacity (m3) 0.5
Wheel tread (mm) 1170
Wheel base (mm) 1790
Min turning radius (mm) 4450
Min ground clearance (mm) 240
Dumping height (mm) 2300
Corresponding dumping reach (mm) 1080
Lifting time (s) 4
Hydraulic cycle time (s) 9
Maximum excavating force (KN) Bucket24.6
Swiming arm13.45
Drive mode Four are Drive
Machine weight (kg) 2500
Overall dimensions (mm) (Length*width*height) 4530*1500*2500
Engine model 4TNV88-BSBKC
Rated power of engine (kw) 25.2
Rated speed of engine (rpm) 2200

1000 kg Rated load 0.5M3 Bucket Mini Front End Wheel Loader ZL10F with Quick Coupler

1000 kg Rated load 0.5M3 Bucket Mini Front End Wheel Loader ZL10F with Quick Coupler1000 kg Rated load 0.5M3 Bucket Mini Front End Wheel Loader ZL10F with Quick Coupler
