Quadrant Type Transmission Shaft Front End Wheel Loader High Breakout Force
Quadrant Type Transmission Shaft Front End Wheel Loader High Breakout Force
Quadrant Type Transmission Shaft Front End Wheel Loader High Breakout Force
Quadrant Type Transmission Shaft Front End Wheel Loader High Breakout Force
Quadrant Type Transmission Shaft Front End Wheel Loader High Breakout Force
Quadrant Type Transmission Shaft Front End Wheel Loader High Breakout Force
Quadrant Type Transmission Shaft Front End Wheel Loader High Breakout Force
Quadrant Type Transmission Shaft Front End Wheel Loader High Breakout Force
Specifications
Brand Name :
Visbull
Model Number :
CS915
Certification :
CE/EMARK/GHOST/ISO
Place of Origin :
CHINA
MOQ :
1 unit
Price :
negotiation
Payment Terms :
L/C at sight, T/T or western Union
Supply Ability :
800 units per month
Delivery Time :
10 working days after received L/C or your deposit
Packaging Details :
Naked packing in container
Product name :
Wheel loader
Rated power :
42KW
Rated loading weight :
1.5 ton / 1500KG
Operating weight :
3600KG
Rated bucket capacity :
0.65 CBM
Reach distance :
860 mm
Dumping height :
2580 mm
Max.break out force :
42 KN
Description
Quadrant Type Transmission Shaft Front End Wheel Loader High Breakout Force

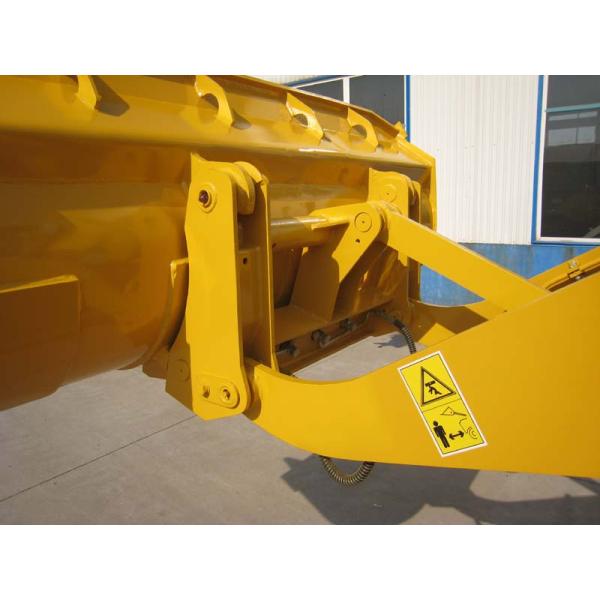

1500 kg 0.65M3 Bucket 4WD mini Wheel Loader CS915 with quick coupler
Feature:

1. Fully hydraulic powered steering with flow-amplified system, Pilot operated control for loader hydraulic system, power shift and electric shift optional transmission makes convenient and flexible operating.


2. High breakout force, short hydraulic cycle time, automatic leveling on any position, and higher productivity.


3. Special quadrant type transmission shaft of construction machinery. Power transmission is more reliable.

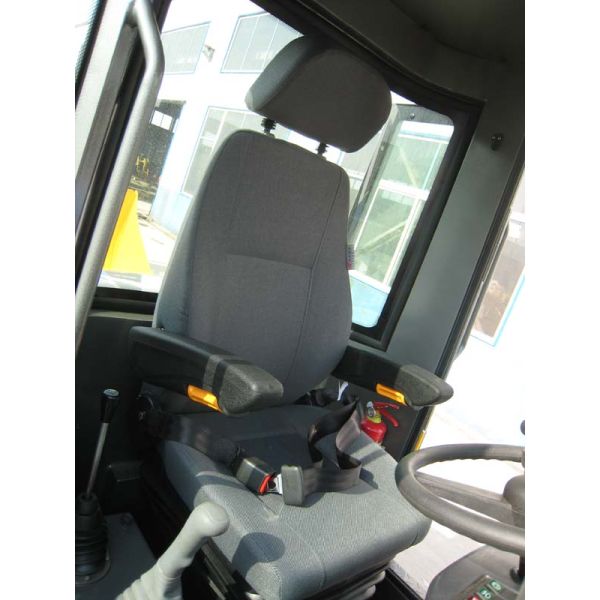

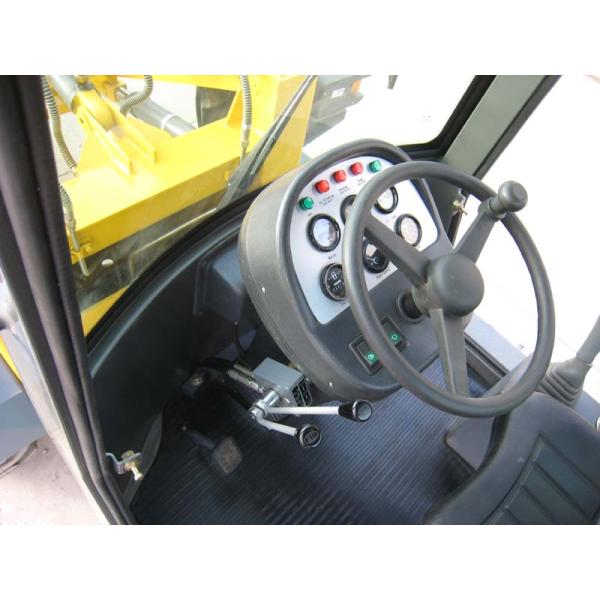

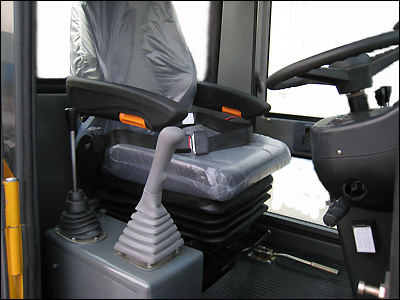

4. Integral new luxury cab, excellent visibility, safety and reliability.


5. EG-TM combination is supported on three points by dual directions, vibration-isolators. Reducing resonance and fatigue failure of structure.

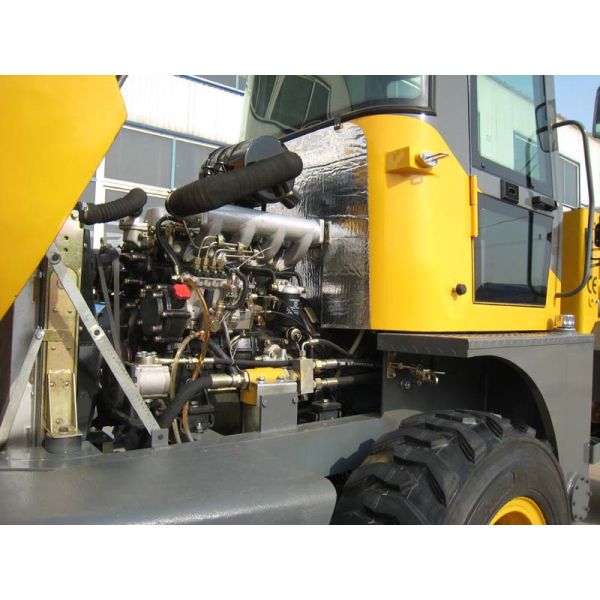

6. Optimized structure of diesel engine air intake system reduces dust into air filter, prolonging the durability of the engine and convenience the service of air filter element. Optimized cooling system drops overall heat balance temperature.


7. Integral operable hood made of compound material reduces noise and vibration, and makes operation and service more convenient and flexible.

Parameter:

Model

CS915

Rated loading weight

1500kg

The minimal circle diameter

290mm

Rated bucket capacity

0.65CBM

Track base

1400mm

Wheel base

1950mm

Min.swerve diameter

4400mm

Min.ground clearance

270mm

Dump height fully raised

2580mm

Reach fully raised

860mm

Lifting time

<5.0s

Driving mode

Four-wheel full hydraulic drive

Transmission gear box form

2 gear hydraulic variable speed changes

Operating weight

3600kg

Dimension (L×W×H)

4850 ×1650×2800mm

Engine model

498BG

Rated speeds

2400rpm

Max.tilt anglle

30%

Max.bucket breakout force,lift cylinder

42KN

Quadrant Type Transmission Shaft Front End Wheel Loader High Breakout Force

Quadrant Type Transmission Shaft Front End Wheel Loader High Breakout Force

Quadrant Type Transmission Shaft Front End Wheel Loader High Breakout Force

Quadrant Type Transmission Shaft Front End Wheel Loader High Breakout Force

Quadrant Type Transmission Shaft Front End Wheel Loader High Breakout Force
