Komatsu 180 Horsepower Sealed Crawler Tractor Dozer for Earthwork / Road Construction
Komatsu 180 Horsepower Sealed Crawler Tractor Dozer for Earthwork / Road Construction
Komatsu 180 Horsepower Sealed Crawler Tractor Dozer for Earthwork / Road Construction
Komatsu 180 Horsepower Sealed Crawler Tractor Dozer for Earthwork / Road Construction
Komatsu 180 Horsepower Sealed Crawler Tractor Dozer for Earthwork / Road Construction
Komatsu 180 Horsepower Sealed Crawler Tractor Dozer for Earthwork / Road Construction
Komatsu 180 Horsepower Sealed Crawler Tractor Dozer for Earthwork / Road Construction
Komatsu 180 Horsepower Sealed Crawler Tractor Dozer for Earthwork / Road Construction
Specifications
Brand Name :
Visbull
Model Number :
T160
Certification :
Ghost/ISO
Place of Origin :
China
MOQ :
1 unit
Price :
negotiation
Payment Terms :
L/C at sight, T/T or western Union
Supply Ability :
300 units per month
Delivery Time :
30 working days after received L/C or your deposit
Packaging Details :
Naked packing
Product Name :
Crawler bulldozer
Max. torque :
759 N.m
Engine flywheel power :
132KW / 180HP
Ground pressure(without ripper) :
68 KPa
Operating weight(not including ripper) :
17500KGS
Digging depth :
550 mm
Max. towing force :
146 kn
Fuel consumption rate :
≤228 g/kw.h
Description

Komatsu 180 Horsepower Sealed Crawler Tractor Dozer for Earthwork / Road Construction

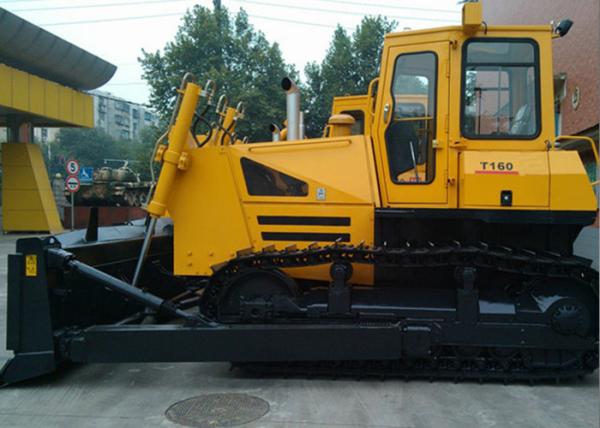

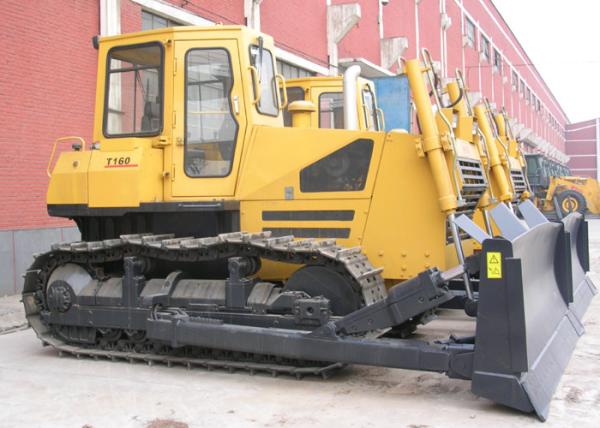

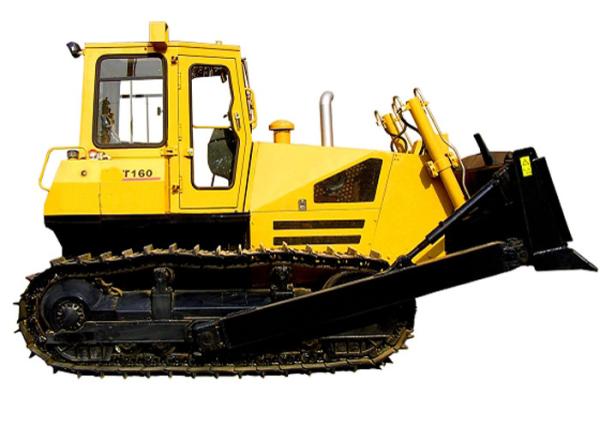

180HP Power Middle Crawler Bulldozer T160 for Engineering Construction , Mining project

Feature:

1. Use Euro II engine ,with such advantages as low oil consumption ,little smoke ,big torque reserve

coefficient and high attractive force of the whole unit.

2. The main clutch which is adopted has been used in the komatsu 180 horsepower bulldozer ,with

such advantages as big torque reserve coefficient and long life.

3. The reducing throttle is equipped .when the bulldozer is traveling in the downhill grade or bumpy

ground ,the speed can be well controlled to strength the safety of operation.

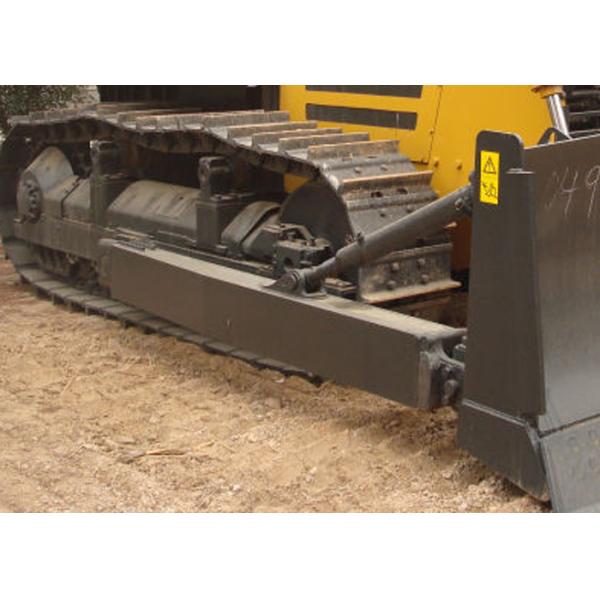

4. Sealed track shall be adopted .Seal ring is provide at both ends of the pin sleeve of the sealed track

to prevent entry of silt and other grinding materials.

5. The joystick is adopted in the control device ,which is light and flexible.

Specification:

Model 　 T160
Total Weight kg 17500
Max Towing Force kN 146
forward Ⅰ-Ⅴ Gears km/h 2.59～10.8
Reverse Ⅰ-Ⅳ Gears km/h 3.6～10.8
Minimum Turning Radius mm 3900
Track Width mm 500
Land Pressure kPa 68
Overall Dimension(L×W×H) mm 5245×3447×3040
Bulldozer Shovel(W×H) mm 3447×1167
Max Lifting Height Of Bulldozer mm 915
Max in-soil Depth of Bulldozer Shovel mm 400
Towing Equipment/Scarifier(optional) 　 Three shanks
track gauge mm 1880
wheelbase mm 2570
ground clearance mm 400
Engine Model 　 SC8D180.2G2B1
Engine Rated Power kw 132
Engine Rated Speed r/min 2000
type 　 Water cooled,
cylinder number diameter×piston stroke mm 6-105×125
rate fuel consumption g/kw.h ≤228
max torque n.m 759
transmission system 　 　
main clutch 　 Wet type, hydraulic control
center transmission 　 spiral bevel gear pair
turning clutch 　 Wet type
final clutch 　 Two-stage transmission mesh
chassis and running system 　 　
chassis type 　 steel plate welding
suspension fork 　 semi-rigid
guiding wheel and tension devices 　 Hydraulic tensioning, column spring cushion
track 　 rolled section steel
control system 　 　
oil supply control 　 handle
main clutch control 　 Stick handle
turning clutch 　 Hemi-handle
hand brake 　 pedal mechanical
multi-vavle 　 joystick
working devices 　 　
scarifier 　 　
type 　 Three shanks
lifting height mm 510
digging depth mm 550
quantity of tooth 　 3
blade 　 　
type 　 Straight blade
width and height mm 3447×1167
lifting height mm 915
digging depth mm 400
cutting angle ° 55
lifting speed m/s 0.3
main filling quantities 　 　
diesel tank L 230
hydraulic oil tank L 85
diesel engine lubricating system L 24
gearbox and rear axle L 110
final drive device L 40×2
track carrier roller L 0.36
track bogie wheel L 3
track guiding wheel L 3
water tank L 65
