Bull Dozer Construction Equipment 140HP for Engineering / Hydro - Electric Construction
Bull Dozer Construction Equipment 140HP for Engineering / Hydro - Electric Construction
Bull Dozer Construction Equipment 140HP for Engineering / Hydro - Electric Construction
Bull Dozer Construction Equipment 140HP for Engineering / Hydro - Electric Construction
Bull Dozer Construction Equipment 140HP for Engineering / Hydro - Electric Construction
Bull Dozer Construction Equipment 140HP for Engineering / Hydro - Electric Construction
Bull Dozer Construction Equipment 140HP for Engineering / Hydro - Electric Construction
Bull Dozer Construction Equipment 140HP for Engineering / Hydro - Electric Construction
Specifications
Brand Name :
Visbull
Model Number :
T140-1
Certification :
Ghost/ISO
Place of Origin :
China
MOQ :
1 unit
Price :
negotiation
Payment Terms :
L/C at sight, T/T or western Union
Supply Ability :
500 units per month
Delivery Time :
30 working days after received L/C or your deposit
Packaging Details :
Naked packing
Product Name :
Crawler bulldozer
Ground clearance :
400mm
Engine flywheel power :
140HP
Max. Torque :
780 N.m
Operating weight(not including ripper) :
16600KGS
Max.digging depth :
400 mm
Ground pressure :
63.3 / 62.9 Kpa
Track gauge :
1880 mm
Description

Bull Dozer Construction Equipment 140HP for Engineering / Hydro - Electric Construction

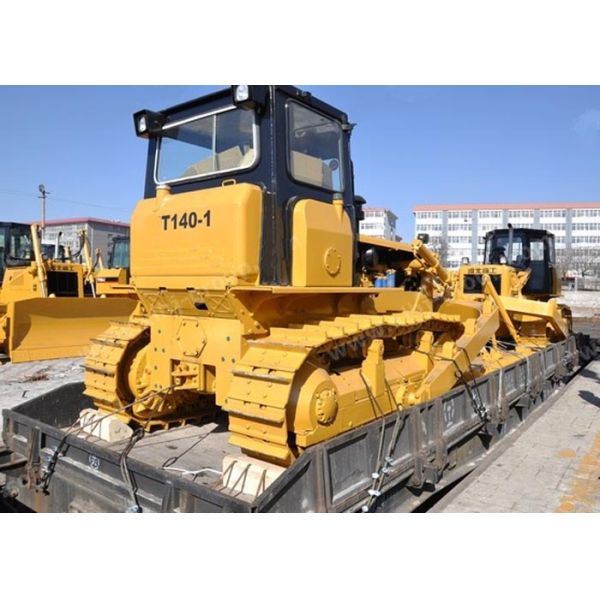

140HP Power Crawler Bulldozer T140-1 for Engineering Construction , 16600 KG operating weight

It is widely used in road building, hydro-electric construction, field modification, port and mine development and other construction.

Specification
Dozer Angle Tilt
Operation weight kg 16600 16500
Ground pressure kpa 63.3 62.9
Track gauge mm 1880 1880
Min. Ground clearance mm 400 400
Gradient º 30/25 30/25
Dozing capacity m3 4 4.5
Blade width mm 3762 3297
Max.digging depth mm 400 400
Overall dimensions mm 5486X3762X2842 5336X3297X2842

Engine
Type WD10G156E26
Rated revolution rpm 1800
Reted power KW 104
Max. Torque N.m/rpm 780/1000-1200
Rated fuel consumption g/KW.h ≤ 215

Undercarriage system
Type Swing type of sprayed beam.Suspended structure of equalizer bar.
Number of track rollers (each side) 6
Number of carrier rollers (each side) 2
Pitch mm 203
Width of shoe mm 500

Gear 1st 2nd 3rd 4th 5th
Forward km/h 2.52 3.55 5.68 7.53 10.61
Back ward km/h 3.53 4.96 7.94 10.53

Implement hydraulic system
Max. system pressure Mpa 11.76
Pump type CBF-E1009(reverse)
System output L/min 180

Driving system
Main clutch Normally opened, wet type,, hydraulic booster control
Transmission Normally meshed helical gear drive, coupling sleeve shift and two lever opereation, the transmission have five forward and four backward speeds.
Steering clutch Multiple-disc oil power metallurgy disc compressed by spring. Hydraulic operated.
Steering brake Brake is oil two direction floating band brake operated by machanical foot pedal.
Final drive The final drive are double reduction with spur gear and segment sprocket, which are sealed by duo--cone seal.

Bull Dozer Construction Equipment 140HP for Engineering / Hydro - Electric Construction
