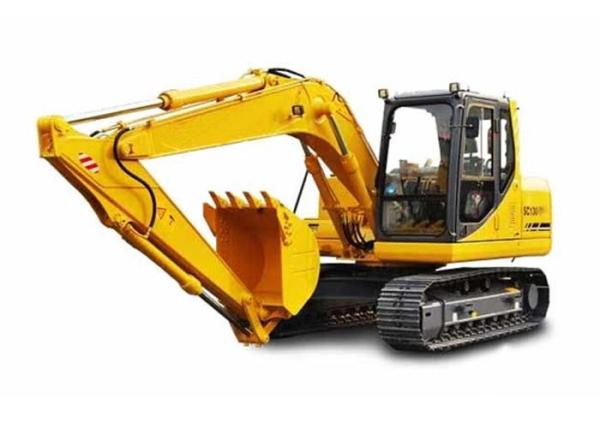

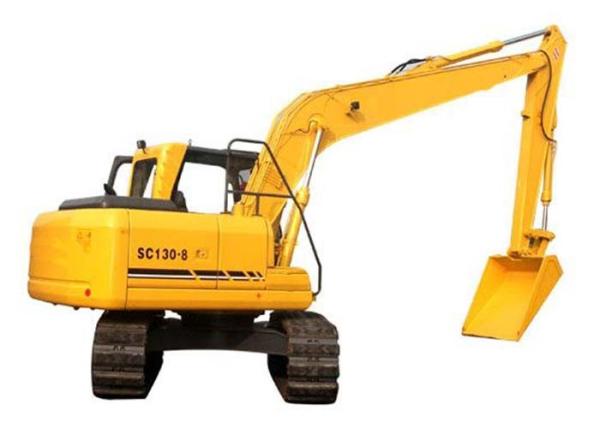

Hydraulic Heavy Equipment Excavator SC130.8 With Closed Cab 82KW Cummins Diesel Engine
Hydraulic Heavy Equipment Excavator SC130.8 With Closed Cab 82KW Cummins Diesel Engine
Hydraulic Heavy Equipment Excavator SC130.8 With Closed Cab 82KW Cummins Diesel Engine
Hydraulic Heavy Equipment Excavator SC130.8 With Closed Cab 82KW Cummins Diesel Engine
Hydraulic Heavy Equipment Excavator SC130.8 With Closed Cab 82KW Cummins Diesel Engine
Hydraulic Heavy Equipment Excavator SC130.8 With Closed Cab 82KW Cummins Diesel Engine
Hydraulic Heavy Equipment Excavator SC130.8 With Closed Cab 82KW Cummins Diesel Engine
Hydraulic Heavy Equipment Excavator SC130.8 With Closed Cab 82KW Cummins Diesel Engine
Specifications
Brand Name :
Visbull
Model Number :
SC130.8
Certification :
Ghost/ISO/SGS/CE
Place of Origin :
China
MOQ :
1 unit
Price :
negotiation
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
1000 units per month
Delivery Time :
10 working days after received L/C or your deposit
Packaging Details :
Naked packing
Product Name :
Hydraulic Excavator
Operation weight :
13000KGS
Engine :
Cummins
Rated engine power :
82 kW
Max. bucket digging force :
78.4 KN
Max. digging reach :
8180 mm
Max. digging depth :
5501 mm
Max. digging height :
8630 mm
Description

Hydraulic Heavy Equipment Excavator SC130.8 With Closed Cab 82KW Cummins Diesel Engine

Hydraulic Excavator SC130.8 With Closed Cab , 82KW Cummins Diesel Engine , 13000 KG Operation Weight

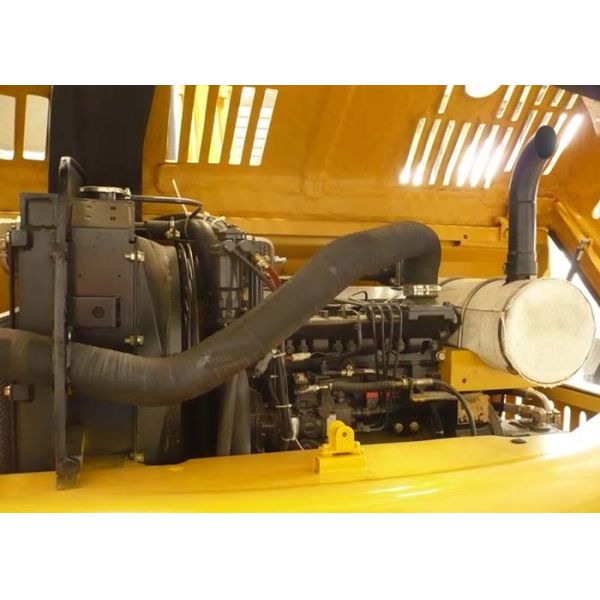

Engine 　
Model Cummins 4BTA3.9
Type Water cooled, 4-cycle, direct injection and turbocharged
Number of cylinder bore × stroke (mm) 4-102×120
Piston displacement (L) 3.9
Rating power (Kw/rpm) 82/2200
Alternate (A) 35
Battery (v/Ah) 12/120×2
Undercarriage 　
Number of carrier rollers 2 each side
Number of track rollers 7 each side
Number of shoes 42 each side
Hydraulic System 　
Hydraulic pump 　
Type Variable displacement piston type
Max. flow (L/min ) 128×2
Setting pressure (Mpa) (Kg/cm2) 34.3 (350)
Valve 　
Type KVMM-160
Control Full hydraulic Joystick
Travel motor Brake valve
Swing motor Safe valve
Hydraulic cylinders Number of cylinder- bore × rod diameter 　
Boom Ф105×Ф70
Arm Ф115×Ф80
Bucket Ф95×Ф65
Operating Range 　
Operating weight 13,000 KGS
O Max. digging height 8630 mm
P Max. dumping height 6180 mm
Q Max. digging depth 5501mm
R Max, vertical digging depth 4940 mm
T Max. digging reach 8180mm
W Tail swing radius 　
Max. digging force 78.4KN
Swing speed 11.6 rpm
Travel speed 　
Ground pressure 38
Dimensions 　
A. overall length 7576 mm
A1. Length on ground( transport) mm 4402 mm
B. Width 2489
C. Height ( to top of cab) 2780 mm
D. Height ( to top of cabin) 2813mm
E. Ground clearance counter weight 870 mm
F. Min Ground clearance 433 mm
G. Tail swing radius 2015 mm
H. Length of track on ground 2750mm
J. Track length 3486 mm
K. Track gauge 1960 mm
L . Width of track 2460mm
M. Width of track shoe 500mm
V. Min swing radius 2495 mm
X. Distance between swing center 2015 mm
