Specifications
Brand Name :
Visbull
Model Number :
SC220.8
Certification :
Ghost/ISO/SGS/CE
Place of Origin :
China
MOQ :
1 unit
Price :
negotiation
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
1000 units per month
Delivery Time :
10 working days after received L/C or your deposit
Packaging Details :
Naked packing
Product Name :
Hydraulic Excavator
Operation weight :
22000KGS
Engine :
Cummins
Rated engine power :
133 kW
Max. bucket digging force :
159.7 KN
Max. digging reach :
9990 mm
Max. digging depth :
6875mm
Max. digging height :
9310 mm
Description

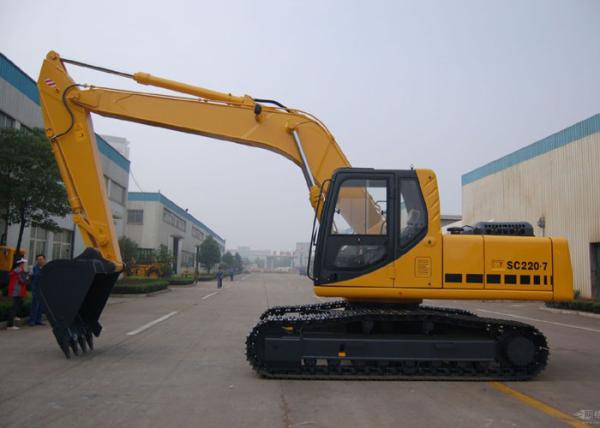

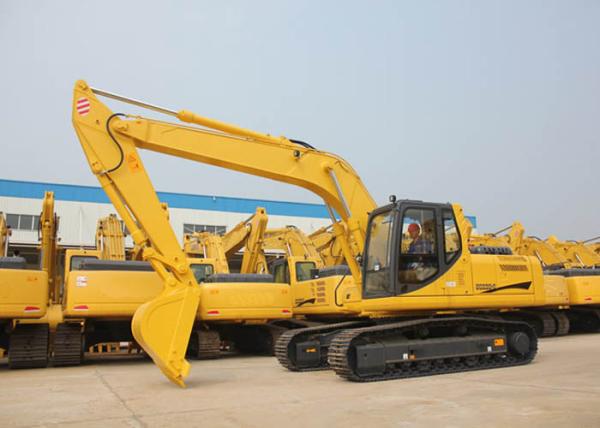

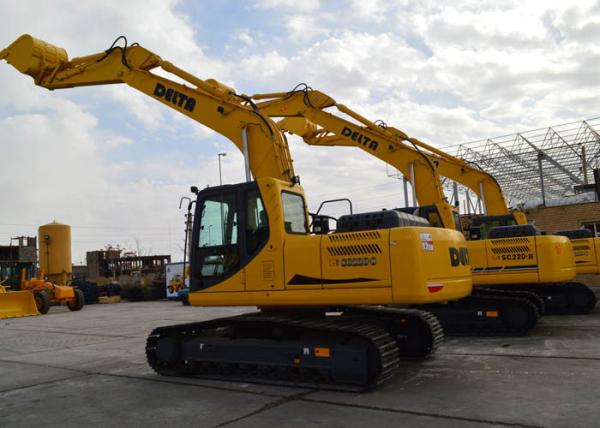

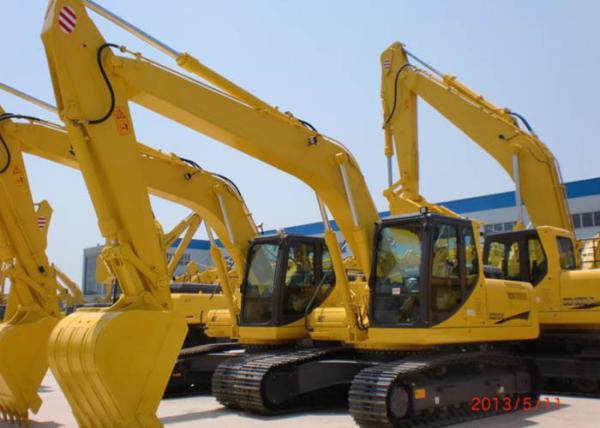

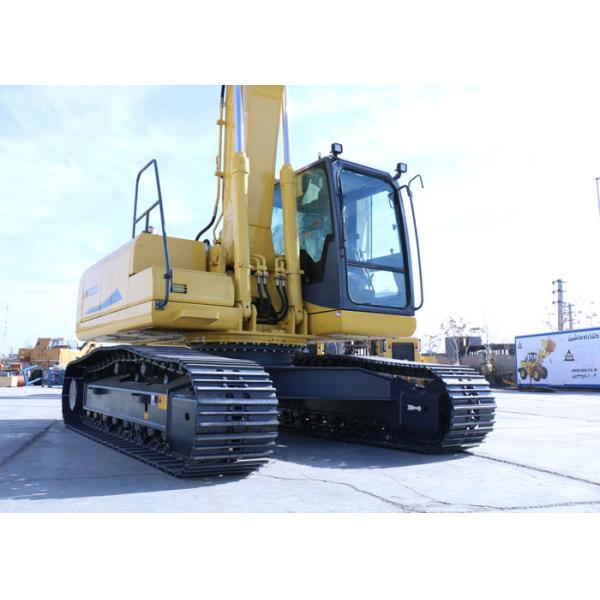

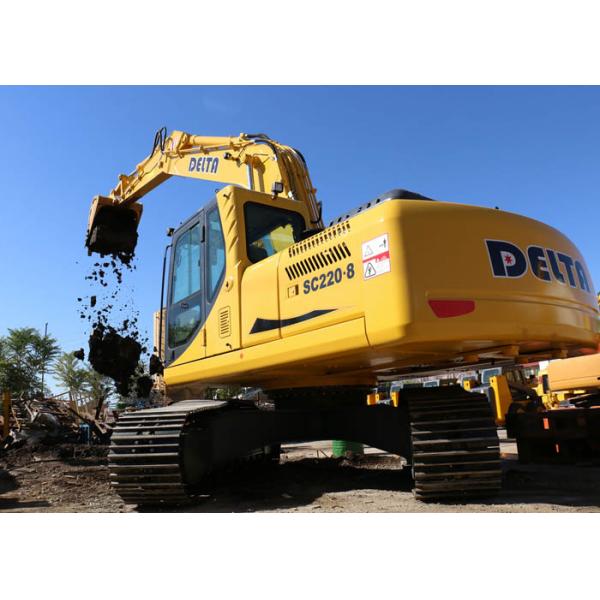

SC220.8 Excavator Heavy Equipment Cummins Engine Excavator Machines

SC220.8 excavator has two engine options, Cummins and Isuzu. It adopts new cab with noise insulation seals. It adopts new seat, new armrest and safety lock, and the harness adopts waterproof plug-in unit, which improves the comfortableness and reliability and improves the operation environment. The new CPU has artificial intelligence and automatic diagnosis function, which can avoid long-time engine running and reduce fuel consumption. The boom joint adopts whole casting steel structure which improves the overall strength and strengthens the working devices. And the tension device is also improves.

Model Unit SC220.8
Weight (T) 22
Bucket capacity (m3) 0.8-1.2
Engine model 　 ISUZU 6BG1T CUMMINS 6BTAA5.9
Power (kw/r/min) 120/2150 133/2000
Fuel tank capacity (L) 350
Travel speed (km/h) 5.2/3.5
Slewing speed (r/min) 11.1
Gradeability (%) 70
Bucket digging force (KN) 159.7
Ground pressure (KPa) 52.16
Hydraulic pump model 　 K3V112DT
Max. flow (L/min) 226*2
Work pressure (MPa) 34.3
Hydraulic tank volume (L) 246
Overall length (mm) 9740
Overall width (mm) 2980
Overall height (mm) 3190
Overall height (mm) 3120
Ground clearance (counterweight) (mm) 1065
Min. ground clearance (mm) 442
Tail slewing radius (mm) 2810

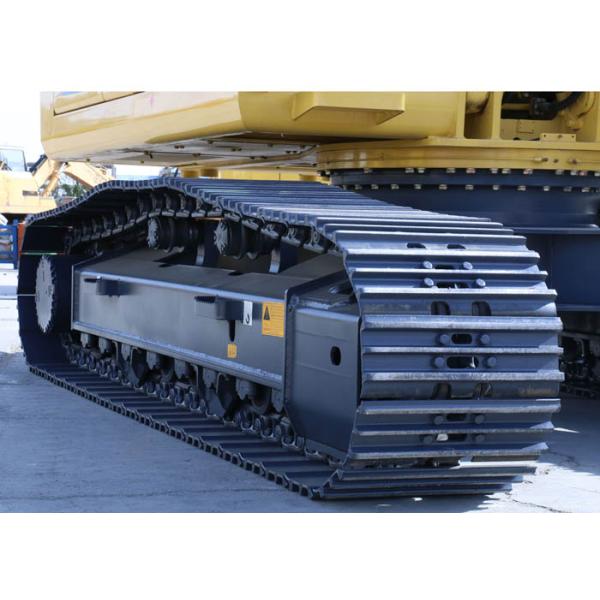

Ground contact length of track (mm) 3445
Track length (mm) 4256
Track gauge (mm) 2380
Track width (mm) 2980
Track plate width (mm) 600
Width of ratory table (mm) 2700

Max. digging height (mm) 9310
Max. dump height (mm) 6438
Max. digging depth (mm) 6875
Max. vertical digging depth (mm) 5860
Max. digging depth when digging a 2.5m surface (mm) 6735
Max. digging distance (mm) 10170
Max. digging distance on ground (mm) 9990
Min. slewing radius (mm) 3975
Max. height at min. slewing radius (mm) 7775
slewing center to rear end (mm) 2810
Grouser thickness (mm) 26
Counterweight height (mm) 2120
Ground contact length(transport) (mm) 5165
Arm length (mm) 3050
Boom length (mm) 5850
