Specifications
Brand Name :
Visbull
Model Number :
SWL2810
Certification :
CE/Ghost/Emark/ISO
Place of Origin :
CHINA
MOQ :
1 unit
Payment Terms :
Western Union, MoneyGram, L/C, T/T
Supply Ability :
2000 units per month
Delivery Time :
10 days after receipt of deposit or L/C
Packaging Details :
Naked Packing in Container
Rated Power :
40KW
Rated Loading Weight :
725 Kg
Tipping load :
1450 Kg
Weight :
2780Kg
Max.Travel Speed :
13.6 m/h
Grade ability :
20 °
Dumping reach :
475 mm
Break force :
2000 Kg
Description

40KW Power Middle Skid Steer Equipment SUNWARD Brand Full Hydraulic System

Specifications:

·Innovative One-piece mainframe
Hydraulic oil tank, fuel tank and chassis was designed as an integral structure that made the machine more compact and durable.

·Closed circuit hydraulic system
Traveling hydraulic system adopts closed loop circuit with features of compact structure, good maneuverability and less heat generation.

·Strong power system
World famous engine generates enough power for all jobs.

·Bigger lifting height
Optimum design makes the SWL able to reach bigger lifting height in its class.

·Auto-leveling system
When the boom is lifting, the bucket automatically keeps levelling.

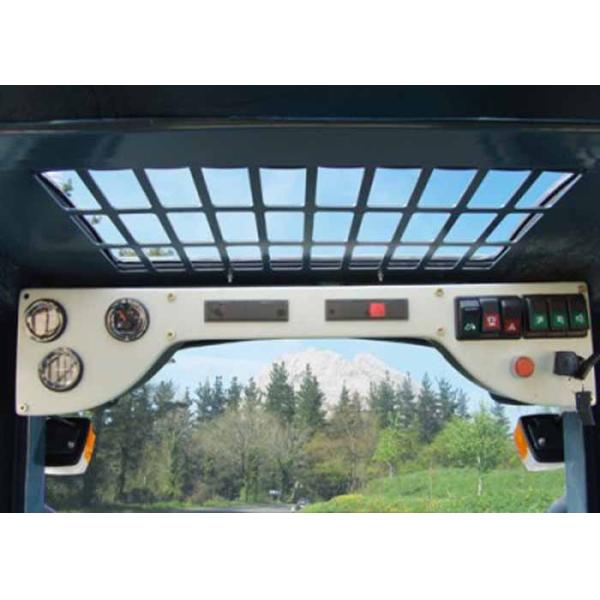

·Safe working condition for operator
The cab gets lots of space and good view. All instruments and operating buttons are within the reach of the operator.It is in line with ROPS/FOPS regulation. Ergonomically designed armrest prevents the operator from falling off the chair accidentally.

·Easy operation
Operators may enjoy the Proportional controlled pilot joystick by getting familiar with the machine quickly with less fatigue.

·Standard quick coupler
Internationally universal quick coupler fits various attachments in the world.

·Double Accelerograph-control
Accelerograph can be controlled by hand or foot.

·Multi-function
The machine works with a wide range of attachments, including that of high flow system.

·Convenient Maintenance
All daily maintenance can be completed when open the rear cover.The cabin can be turned forward in large-angle.

Main Parameters
Dimensions:L x W x H 3261 x 1600 x 2018 (mm)
Total Weight 2780kg
Properties
Load capacity 725kg
Tipping load 1450kg
Bucket breakout force lift 2000kg
Boom breakout force lift 1900kg
Max. speed 13.6km/h
Engine model Yanmar 4TNV84T
Engine type 4-cylinder water-cooled diesel engine
Engine emission standards EPA Tire2 / EU Stage II
Engine rated power 39.9kw / 2800rpm
Max. engine torque 160.5N.m / 1800rpm
Transmission
Type Hydrostatic closed circuit
Main pump 2 x Variable displacement piston pump
Motor Two radial piston quantitative motor
Hydraulic System
Type Throttle system
Pump Gear Pump
Max. pressure 210bar
Max. flow 70.0+33.6 L/min
Control valve Three joint multi-way valve
Control mode ISO model of pilot control
Electrical Systems
Starter motor 12V / 2.3kw
Alternator 12V / 40A
Battery 80Ah
Service Refill Capacities
Hydraulic oil tank 50L
Fuel tank 70L
Sprocket fuel tank 30L
Engine oil 7.4L
Engine coolant 7.7L
Running configuration: Tires size 10-16.5
Optional Configuration Large flow system, side windows, closed cab, heater, air conditioning, multi-function LCD instrumentation, warning lights, reversing alarm, external power supply, etc.
Optional Aids All kinds of buckets, four are bucket, hammer, screw drills, fork, cleaning devices, earth-moving shovel, clip Mucha, clamp bucket, digging devices, milling devices, blowing snow machines, etc.
Working parameters
A. Max. operating altitude 3850mm
B. Height to bucket hinge pin 3002mm
C. Height to top of cab 2018mm
D. Height to bottom of level bucket 2834mm
E. Overall length without attachment 2475mm
F. Overall length with standard bucket 3261mm
G. Max. height of the unloaded angle 42°
H. Dumping height 2320mm
J. Dumping reach 475mm
K. Bucket on the ground of the flip angle 30°
L. Bucket at the highest flip angle 97°
M. Wheelbase 987mm
P. Ground clearance 190mm
Q. Angle of departure 25°
R. Without the attachments before turning radius 1168mm
S. Before turning radius 1954mm
T. After the turning radius 1534mm
U. Tail length(rear axle to bumper) 960mm
V. Two tires center distance 1293mm
W. Bucket width 1600mm
