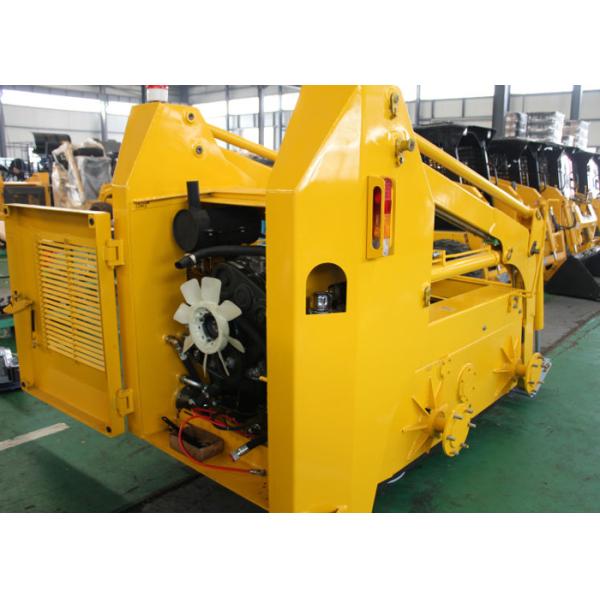

Direct Injection 4 Stroke Diesel Engine Tracked Skid Steer , Crawler Compact Skid Steer
Direct Injection 4 Stroke Diesel Engine Tracked Skid Steer , Crawler Compact Skid Steer
Direct Injection 4 Stroke Diesel Engine Tracked Skid Steer , Crawler Compact Skid Steer
Direct Injection 4 Stroke Diesel Engine Tracked Skid Steer , Crawler Compact Skid Steer
Direct Injection 4 Stroke Diesel Engine Tracked Skid Steer , Crawler Compact Skid Steer
Direct Injection 4 Stroke Diesel Engine Tracked Skid Steer , Crawler Compact Skid Steer
Direct Injection 4 Stroke Diesel Engine Tracked Skid Steer , Crawler Compact Skid Steer
Direct Injection 4 Stroke Diesel Engine Tracked Skid Steer , Crawler Compact Skid Steer
Specifications
Brand Name :
Visbull
Model Number :
TS50
Certification :
CE/Ghost/Emark/ISO
Place of Origin :
CHINA
MOQ :
1 unit
Payment Terms :
Western Union, MoneyGram, L/C, T/T
Supply Ability :
2000 units per month
Delivery Time :
10 days after receipt of deposit or L/C
Packaging Details :
Naked Packing in Container
Rated Power :
50 HP
Rated Operating Capacity :
700 Kg
Bucket Capacity :
0.3 m3
Weight :
2800 Kg
Max.Travel Speed :
8 m/h
Grade ability :
20 °
Tipping load :
1400 Kg
Lifting Force :
1950 Kg
Description

Direct Injection 4 Stroke Diesel Engine Tracked Skid Steer , Crawler Compact Skid Steer

Full Hydraulic Control System Crawler Skid Steer Loader TS50 With 50HP Power

Main Features of skid steer loader:

1) Good technical parameters with competitive price
2) maneuver in tight spaces, turn within its own length
3) a broad product line, innovative designs, and unsurpassed range of job-matched attachments.
4) Excellent reach & lift height for truck loading (vertical path).
5) more than 20 series attachments for option: pallet fork, swing blade, utility fork grapple, asphalt cutter, backhoe, hydraulic hammer, 4 in 1 bucket, auger, cultivator, and tooth bucket etc
6) attachment can be used with bobcat type skid loader
7) world famous hydraulic systems from America, Japan and Italy
8) famous brand engine with EPA or EC stage II or III from abroad and domestic
9) CE and ISO 9001 certificated
10) versatility, maneuverability and reliability

OPTIONAL:
1) PERKINS ENGINE, HYUNDAI ENGINE, DEUTZ ENGINE, LOVOLE ENGINE AND DOMESTIC ENGINE AND MORE
2) WITH OR WITHOUT HYDRAULIC SERVO(JOYSTICK SYSTEM)
3) ENCLOSED CAB WITH OR WITHOUT AIR CONDITIONER OR HEATER
4) ALL KINDS OF TIRES ( SOLIC, NORMAL, CACUUM) AND DIFFERENT TYPE FOR CHOICE
5) VARIOUS OF ATTACHMENTS

Specification:
Skid Steer Loader TS50
Rated Operating Capacity 700
Tipping load(Kg) 1400
Bucket Capacity(m3) 0.3
Lifting Force(Kg) 1950
Hydraulic Pump Flow(L/min) 40
Engine power(HP) 50
Weight(Kg) 2800
Max.Travel Speed(km/h) 8
Grade ability(deg.) 20
Fuel/hyd.Oil capacity(L) 50/50
　 　
Dimensions
A-Height to top of ROPS 2050mm
B-Ground clearance 140mm
C-Max. lift height at hinge pin 3350mm
E-Length of under carriage 1600mm
F-Machine length without bucket 2300mm
G-Machine length with bucket 2950mm
H-Machine width 1500mm
I-Track width 300mm
D-Length of track on ground 1200mm
L.Dumping Height 2100mm
K-Length of track on ground 1240mm

Engine

Maker

YTO

Net Power

50 hp

Type

Direct-injection, in-line, Water colled, 4 stroke, Diesel Engine

Displacement

1.8~2.6L

Standard

Optional

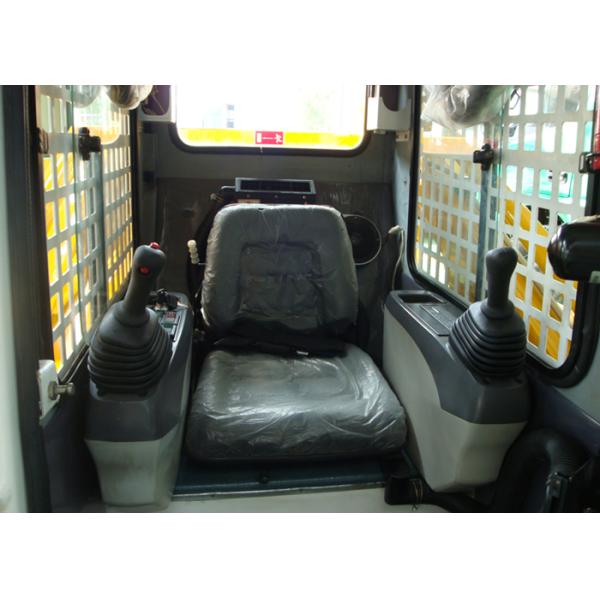

1． Encloesed Operator Cab

1. Air Conditioner

2. Hydraulic Joystick Controls

2. 2-Speed Transmission System

3. Standard Bucket

3. Attachments: Backhoe, Breaker, Angle Blade, Auger, Sweeper, Pallet Fork, Combinition Bucket, Mower, Asphalt Cutter, and More.

Direct Injection 4 Stroke Diesel Engine Tracked Skid Steer , Crawler Compact Skid Steer

Direct Injection 4 Stroke Diesel Engine Tracked Skid Steer , Crawler Compact Skid Steer
