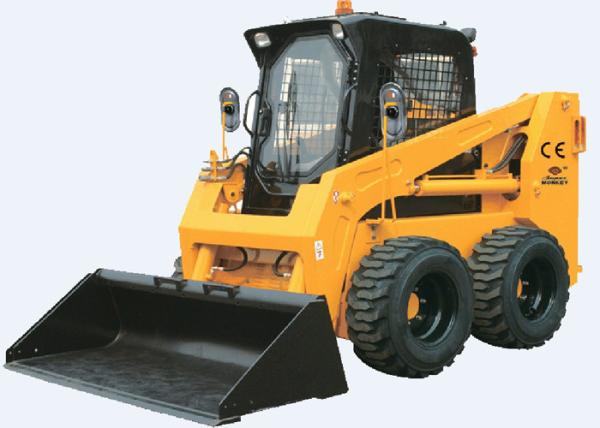

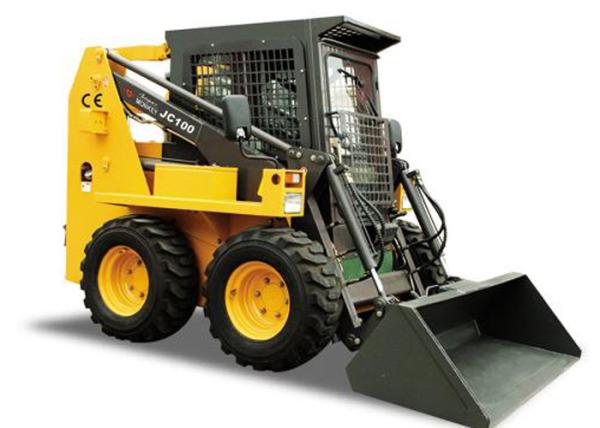

3.1 Meters Work Arm Bobcat Skid Steer Compact Track Loaders 100HP Power 3800 Kg Weight
3.1 Meters Work Arm Bobcat Skid Steer Compact Track Loaders 100HP Power 3800 Kg Weight
3.1 Meters Work Arm Bobcat Skid Steer Compact Track Loaders 100HP Power 3800 Kg Weight
3.1 Meters Work Arm Bobcat Skid Steer Compact Track Loaders 100HP Power 3800 Kg Weight
3.1 Meters Work Arm Bobcat Skid Steer Compact Track Loaders 100HP Power 3800 Kg Weight
3.1 Meters Work Arm Bobcat Skid Steer Compact Track Loaders 100HP Power 3800 Kg Weight
3.1 Meters Work Arm Bobcat Skid Steer Compact Track Loaders 100HP Power 3800 Kg Weight
3.1 Meters Work Arm Bobcat Skid Steer Compact Track Loaders 100HP Power 3800 Kg Weight
Specifications
Brand Name :
Visbull
Model Number :
JC100X
Certification :
CE/Ghost/Emark/ISO
Place of Origin :
CHINA
MOQ :
1 unit
Payment Terms :
Western Union, MoneyGram, L/C, T/T
Supply Ability :
2000 units per month
Delivery Time :
10 days after receipt of deposit or L/C
Packaging Details :
Naked Packing in Container
Rated Power :
100 HP
Rated Operating Capacity :
1200 Kg
Bucket Capacity :
0.5 m3
Weight :
3800 Kg
Max.Travel Speed :
12 m/h / 18 m/h
Grade ability :
20 °
Tipping load :
2400 Kg
Lifting Force :
3150 Kg
Description

3.1 Meters Work Arm Bobcat Skid Steer Compact Track Loaders 100HP Power 3800 Kg Weight

Main Features of skid steer loader:

1) Good technical parameters with competitive price
2) maneuver in tight spaces, turn within its own length
3) a broad product line, innovative designs, and unsurpassed range of job-matched attachments.
4) Excellent reach & lift height for truck loading (vertical path).
5) more than 20 series attachments for option: pallet fork, swing blade, utility fork grapple, asphalt cutter, backhoe, hydraulic hammer, 4 in 1 bucket, auger, cultivator, and tooth bucket etc
6) attachment can be used with bobcat type skid loader
7) world famous hydraulic systems from America, Japan and Italy
8) famous brand engine with EPA or EC stage II or III from abroad and domestic
9) CE and ISO 9001 certificated
10) versatility, maneuverability and reliability

OPTIONAL:
1)PERKINS ENGINE, HYUNDAI ENGINE, DEUTZ ENGINE, LOVOLE ENGINE AND DOMESTIC ENGINE AND MORE
2)WITH OR WITHOUT HYDRAULIC SERVO(JOYSTICK SYSTEM)
3)ENCLOSED CAB WITH OR WITHOUT AIR CONDITIONER OR HEATER
4)ALL KINDS OF TIRES ( SOLIC, NORMAL, CACUUM) AND DIFFERENT TYPE FOR CHOICE
5)VARIOUS OF ATTACHMENTS

Rated Operating Capacity 1200
Tipping load(Kg) 2400
Bucket Capacity(m3) 0.4-0.5
Lifting Force(Kg) 2200
Hydraulic Pump Flow(L/min) 80
Engine power(HP) 100
Weight(Kg) 3800
Max.Travel Speed (km/h) 12/18
Grade ability(°) 20
Tire 12-16.5
Fuel/hyd.oil capacity(L) 80/80
A.Height at Maximum Extension (mm) 3780
B.Hinge Pin Height (mm) 3150
C.Total Height (mm) 2040
D.Length with Bucket (mm) 3450
E.Length without Bucket (mm) 2540
F.Width with Bucket (mm) 1900
G.Track Width (mm) 1560
H.Wheelbase (mm) 1020
J.Ground Clearance (mm) 260
K.Dumping Angle (mm) 45
L.Dumping Height (mm) 2400
M.Maximum Reach (mm) 700

Engine

Maker

Deutz

Net Power

100 hp @ 2500 rpm

Type

Direct-injection, in-line, Water colled, 4 stroke, Diesel Engine

Displacement

3.9~4.2L

Standard

Optional

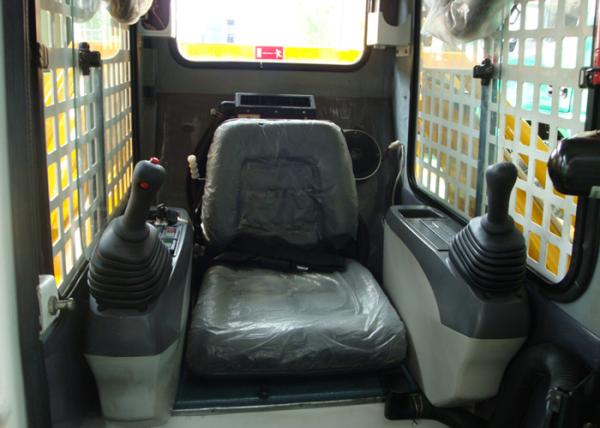

1． Encloesed Operator Cab

1. Air Conditioner

2. Hydraulic Joystick Controls

2. 2-Speed Transmission System

3. Standard Bucket

3. Attachments: Backhoe, Breaker, Angle Blade, Auger, Sweeper, Pallet Fork, Combinition Bucket, Mower, Asphalt Cutter, and More.

3.1 Meters Work Arm Bobcat Skid Steer Compact Track Loaders 100HP Power 3800 Kg Weight
