Diaphragm Pump Road Marking Auxiliary Machine Primer Oil Spraying Machine 2.5L/Min
Diaphragm Pump Road Marking Auxiliary Machine Primer Oil Spraying Machine 2.5L/Min
Specifications
Brand Name :
WAGE
Model Number :
HG50-PS
Certification :
EMS， OHSMS
Place of Origin :
China
MOQ :
1 set
Price :
700-750usd per set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50 set per week
Delivery Time :
1 to 2 weeks
Packaging Details :
box
spraying width :
100-450mm
pressure :
0.8Mpa
Control Mode :
Manual
Paint Pump :
Diaphragm Pump
Paint Pump Flow :
2.5L/min
Paint Pump Pressure :
2.5bar
Paint Spray Distance :
2-4m
Paint Spray Thickness :
0.2-0.4mm
Paint Spray Width :
50-150mm
Paint Tank Capacity :
5L
Paint Tank Material :
Stainless Steel
Power :
1000W
Power Supply :
AC220V/50HZ
Product Name :
Road Marking Auxiliary Machine
Size :
800*400*800mm
Spray Rate :
100-120m2/h
Weight :
50kg
Description

Automatic Press Primer Oil SprayingMachine For Pavement Marking Work

Diaphragm Pump Road Marking Auxiliary Machine Primer Oil Spraying Machine 2.5L/Min

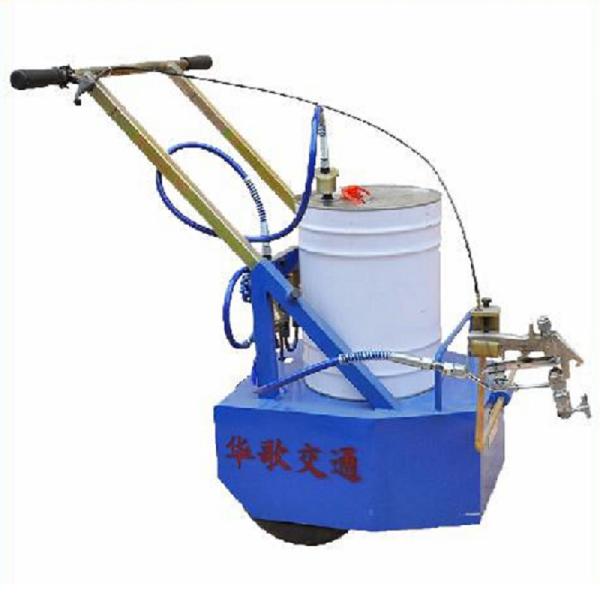

HG50-PS Automatic press bottom oil blower adopts imported special gear pump, only need the operator to push it for generating pressure, it has characteristics like no n-pollution, non-noise, environment protection, and energy conservation, easy operation and small volume for convenient shipping, and long life time etc. It’s commonly used in primer spraying work before thermoplastic and double component marking construction.

Parameter:

Power Labor push, automatic press
Pressure Max. 0.8Mpa
Spraying width 100-450mm
Pressure control system Non-return valve control pressure
Walking speed 65-70m/min
Size (L*W*H) 800*400*850mm
Weight 40kg

Contact:

Rita QU
Xi'an Wage Traffic Infrastructure Installation Co.,LTD
Mail: rita@wagetraffic.com Cell/ Whatsapp: +86 15591818803
Add:Room 401, Unit 2, Bilding 2, Shenglong Plaza, Weiyang Road, Xi'an, 710016, Shaanxi, China
