6L/Min Airless Line Striper Parking Line Striping Machine 0.5 Gpm
6L/Min Airless Line Striper Parking Line Striping Machine 0.5 Gpm
Specifications
Brand Name :
WAGE
Model Number :
HG-12L
Certification :
EMS， OHSMS
Place of Origin :
China
MOQ :
1 set
Price :
5900-6000usd per set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10 set per week
Delivery Time :
1-3 weeks
Packaging Details :
Box
Amperage :
15A
Hose Length :
50 ft
Hose Material :
Polyurethane
Max Flow Rate :
0.5 gpm
Max Pressure :
3000 psi
Noise Level :
68 dB
Paint Capacity :
1 qt
Power Source :
Electric
Product Name :
Airless Line Striper
Product Type :
Paint Sprayer
Spray Tip Material :
Stainless Steel
Spray Tip Size :
0.017 in
Voltage :
110V
Warranty :
1 Year
Weight :
25 lbs
Description

Airless cold paint Spraying Pavement line Striper double Guns

Airless spraying pavement road line striping marking machine two guns

6L/Min Airless Line Striper Parking Line Striping Machine 0.5 Gpm

Working Principle

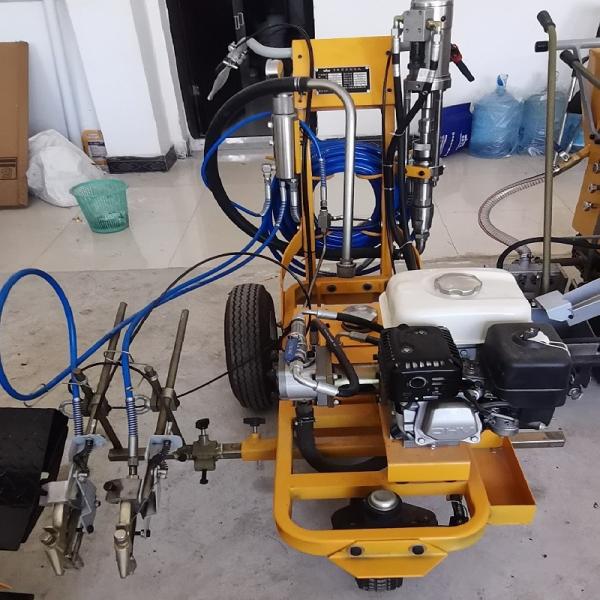

Using gasoline engine to drive hydraulic plunger pump to form high pressure paint in the pump. The pressurized paint is transported to the airless gun through high pressure hose. Finally, the hydraulic pressure is released at the airless nozzle. After instantaneous atomization, the paint is sprayed to the ground to form a marking film layer. Normal temperature marking machine is usually suitable for the construction of underground parking spaces, plot plant area marking, a small number of pavement roads and other kinds of temperature marking.

6L/Min Airless Line Striper Parking Line Striping Machine 0.5 Gpm

1. Honda engine is used to ensure strong horsepower.

2. The front wheel positioning system and the vacuum pneumatic tire used in the rear wheel have good shock absorption effect, which can greatly reduce the line deformation caused by road surface fluctuation, and ensure that the marking edges and angles are neat.

3. The spray gun bracket can be adjusted in all directions to ensure the accuracy and convenience of line width.

6L/Min Airless Line Striper Parking Line Striping Machine 0.5 Gpm

Parameter:

HG-6L HG-12L
power 5.5HP gasoline 6.5HP gasoline
Core pump WAGE hydraulic piston pump Precision Hydraulic Piston Pump
Marking mode High pressure airless spraying High pressure airless spraying
Working pressure 8-14Mpa 21Mpa MAX
Flow max 6L/min 12L/min
Spraying width 100-300mm(single gun) 50-500mm(DOUBLE GUNS)
Spraying thickness 0.2-0.4mm 0.2-0.4mm
Size (L*W*H) 1750*680*950mm 1700*750*1100mm
Weight 128kg 110kg

Working:

6L/Min Airless Line Striper Parking Line Striping Machine 0.5 Gpm

Application:

6L/Min Airless Line Striper Parking Line Striping Machine 0.5 Gpm

Contact:

Rita QU
Xi'an Wage Traffic Infrastructure Installation Co.,LTD
Mail: wagetraffic@hotmail.com Cell/ Whatsapp: +86 15591818803
Add:Room 401, Unit 2, Bilding 2, Shenglong Plaza, Weiyang Road, Xi'an, 710016, Shaanxi, China
