African Roads Hot Selling Road Line Paint Strong Adhesion Hot Melt Reflective Road Mark Paint
African Roads Hot Selling Road Line Paint Strong Adhesion Hot Melt Reflective Road Mark Paint
African Roads Hot Selling Road Line Paint Strong Adhesion Hot Melt Reflective Road Mark Paint
African Roads Hot Selling Road Line Paint Strong Adhesion Hot Melt Reflective Road Mark Paint
Specifications
Brand Name :
HUA QUN
Model Number :
HQ-223
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 ton
Price :
Pending
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
100 tons per day
Delivery Time :
3-7work days
Packaging Details :
25kg per bag,40 bags per ton,25-28 tons per 1x20ft container
Surface Type :
Concrete, asphalt, pavement
Main Raw Material :
calcium carbonate
Application Temp :
180~220℃
Coverage :
10-12 square meters per liter
Finish :
Glossy
Port :
Guangzhou
Standard Packaging :
25kg per bag
Color :
White, Yellow, Red, Blue, Green, Black
Description

African Roads Hot Selling Road Line Paint Strong Adhesion Hot Melt Reflective Road Mark Paint

Product Description

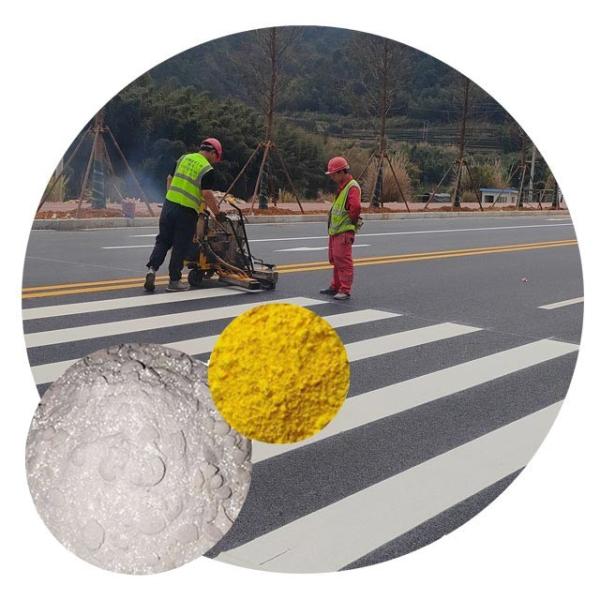

Hot melt marking paint, commonly known as thermoplastic paint, is a specialized, heat-applied coating widely used for creating durable, high-visibility road markings. Unlike traditional solvent- or water-based paints that dry through evaporation, hot melt paint starts as a solid material—typically a blend of synthetic resins, pigments, glass beads, and fillers—that is melted at high temperatures (180°C–220°C or 356°F–428°F) and applied in a molten state. As it cools, it solidifies into a thick, robust layer that adheres strongly to surfaces like asphalt or concrete, making it ideal for traffic lines, crosswalks, and symbols exposed to heavy wear and weather..

Specification

Gravity(g/㎥) 2.1g/㎥
Color Yellow, Orange, Red and etc.
Heating Temperature 180℃-220℃
Softening Point(℃) 110℃
Coating Appearance No wrinkles, dots, blisters, cracks,fall-out&stick tyres
Drying Time(min) Within 3 minutes
Chroma Performance Reverse materials(white)
Compressive Strength(Mpa) 26
Abrasive Resistance(mg) 42
Alkali Resistance Great (in saturated solution of calcium hydroxide for 24 hours
Glass Beads(%) 19%
Fluidity(s) 40s
Coating Resistance Resis -10℃ for 4 hours
Package 25kg/bag, by plastic woven bag. One 20’container can load Max 26 tons
Heat Resistance Under 200℃-220℃ for hours
Material C5 Petroleum Resin, CACO3, Wax, Glass Beads, EVA, PE and so on.
Application Road marking, straight line, dotted line, curve, oriented arrow,letter and etc.
Water Resistance

Great (in water for 24 hours)

Applications of Hot Melt Road Marking Paint
  • Road Safety Markings:
    • Lane Lines: Defines driving lanes on highways, streets, and rural roads (e.g., solid or dashed lines).
    • Centerlines: Separates opposing traffic flows for safety.
    • Edge Lines: Marks road boundaries to guide drivers, especially at night or in poor weather.
  • Pedestrian and Traffic Guidance:
    • Crosswalks: Provides clear, durable markings for pedestrian crossings.
    • Zebra Stripes: High-visibility patterns at intersections or pedestrian zones.
    • Arrows and Symbols: Directs traffic flow (e.g., turn arrows, stop lines, yield symbols).
  • Specialized Road Features:
    • Bike Lanes: Designates cycling paths with solid or broken lines, often in bright colors.
    • Bus Lanes: Marks dedicated lanes for public transport.
    • Speed Bumps or Rumble Strips: Applied in raised profiles to slow traffic.
  • Parking Areas:
    • Parking Lines: Defines spaces in parking lots or garages.
    • Handicap Symbols: Marks accessible parking zones with durable, visible designs.
  • Airports:
    • Runway and Taxiway Markings: Guides aircraft with high-visibility lines and symbols that withstand heavy loads and weather.
  • Industrial and Private Use:
    • Factory Floors: Marks pathways, safety zones, or equipment areas in warehouses.
    • Private Roads: Used on campuses, estates, or complexes for organized traffic flow.
  • Decorative or Custom Markings:
    • Colored thermoplastic can be used for aesthetic designs, school zones, or playground markings.

African Roads Hot Selling Road Line Paint Strong Adhesion Hot Melt Reflective Road Mark Paint
African Roads Hot Selling Road Line Paint Strong Adhesion Hot Melt Reflective Road Mark Paint
African Roads Hot Selling Road Line Paint Strong Adhesion Hot Melt Reflective Road Mark Paint
African Roads Hot Selling Road Line Paint Strong Adhesion Hot Melt Reflective Road Mark Paint

Technical Specification

Density(g/cm3) 1.8-2.3
Softening point (℃) 90-125
Compressive Strength(MPa) ≥12
Glass bead content(%) 0-30%
Liquidity 35±10
Packing 25kg/bag
Color White/Yellow/Blue/Red/Green/Customized
Executive standard JT/T280-2004/AASHTO/BS3262/Customized
Appearance Powder
Construction temperature 180℃-220℃
Whiteness 70-85(Customized)
Inverse coefficient 50-550
Warranty 12 months
Storage Method Avoid light and moisture
Packing Size 45×70×5CM


African Roads Hot Selling Road Line Paint Strong Adhesion Hot Melt Reflective Road Mark Paint

African Roads Hot Selling Road Line Paint Strong Adhesion Hot Melt Reflective Road Mark Paint
African Roads Hot Selling Road Line Paint Strong Adhesion Hot Melt Reflective Road Mark Paint
African Roads Hot Selling Road Line Paint Strong Adhesion Hot Melt Reflective Road Mark Paint
