Specifications
Brand Name :
HUA QUN
Model Number :
HQ-CK001
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
3000 units per month
Delivery Time :
3 days
Packaging Details :
1 unit/ Wooden box
Driver Speed :
1- 8km/hour
Power Source :
Manual
Cleaning Width :
220mm
Features :
Hand Push
Heating Temperature :
180-200°C
Making Mode :
Traffic Safety Paint
Warranty :
one year
Mark Width :
100-450mm ( Adjustable)
Description

ISO Factory Hand Push Road Marking Machine Good Price Light Weight Thermoplastic Road Machine

Product Introduction

A thermoplastic road marking machine is a device used to apply thermoplastic markings on roads.

Thermoplastic material is a kind of plastic that becomes soft and fluid when heated and solidifies when cooled. The machine heats the thermoplastic material to a molten state and then applies it through a nozzle or other applicator onto the road surface in the desired pattern, such as lane lines, crosswalks, arrows, etc.

These machines usually have a heating system to keep the thermoplastic at the proper temperature for application. They also have a mechanism for controlling the flow rate and spray pattern to ensure accurate and consistent markings. They play a crucial role in road construction and maintenance to enhance traffic safety and guidance.

Factory Hand Push Road Marking Machine Good Price Light Weight Thermoplastic Road Machine

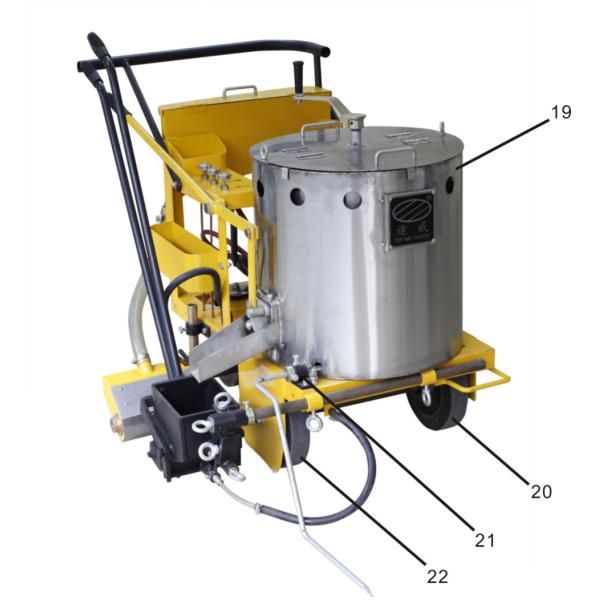

Road Marking Machine

1. Torches

2. Trunk

3. Stirring Shaft

4. Paint Input Door

5. Stainless Steel Heat Perservation Kettle

6. Paint Outdput Door

7. Pointing Needle

8. Hanger & Front Burner

9. Landing Knife

10. Rear Burner

11. Marking Mold

12. Glass Beads Spreader

13. Glass Beads Box

14. Marking Mould Handle

15. Paint Output Handle

Specification:

Type HQ-CK380
Thermoplastic Tank Double stainless steel heating insulation barrels , capacity 100kg, plug-in manually mixer devices , removable devices
Glass Bead Container 10 KG /Box

Adjustable Glass Beads Dispenser

 Glass Beads Dispenser for dispensing glass beads synchronously and quantitatively . makes the dispensing synchronization with the marking line and ensures the quantity of the dispensing is controllable and adjustable , the dispense width of this dispenser is adjustable 50mm to 200mm
Marking Requirement 150mm marking shoe (High-precision ultra-thin material manufacturing, scraper- type structure)
Knife Underframe The Thickness of the scope marking Carbide ,with eccentric sleeve device can adjustable the 1-2.5 mm
Tire Alloy Wheel, a special heat-resistant rubber
Rear Wheel Directional Device Ensure the machine moving in straight line or turning freely in curved road
Heating Method Liquefied Petroleum Gas
Hopper Marking width 100mm, 150mm , 200mm, 250mm, 300mm, 400mm, 450mm
Dimensions 1200mm*900mm*950mm
Weight 100KG

Feature:

This machine has the advantage of high-construction, fast, flexible operation, convenient maintenance and so on.

Application Area:

Highway, municipal roads, village or town road, guiding arrows words parking lines, factories etc.
