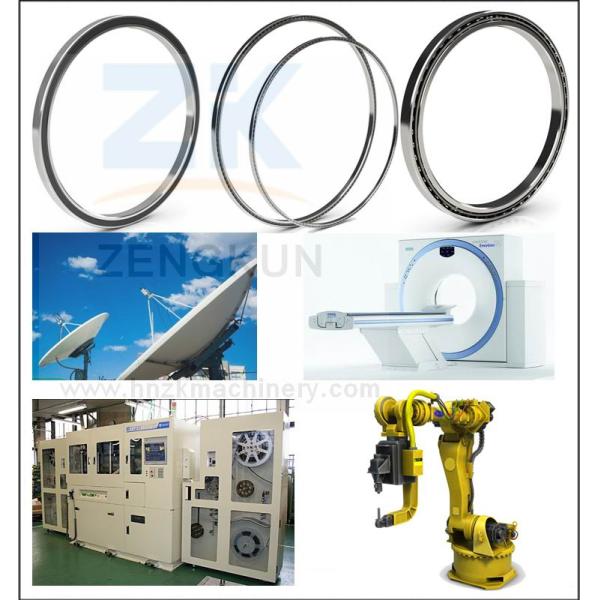

thin section bearing KG type
thin section bearing KG type
Specifications
Brand Name :
ZENGKUN
Model Number :
KG
Certification :
ISO
Place of Origin :
LUOYANG
MOQ :
10
Price :
USD100-10000
Payment Terms :
L/C, T/T, Western Union, D/P
Supply Ability :
1000PCS PER Month
Delivery Time :
30 work days
Packaging Details :
Vacuum plastic bag
Description

thin section angular contact ball bearing
thin section ball bearing
thin section ball bearings
thin section ball bearings manufacturers
thin section bearing
thin section bearing factory
thin section bearing manufacturers
thin section bearings
thin section bearings china
thin section bearings factory
thin section bearings manufacturers
thin section bearings suppliers
thin section cross roller bearing
thin section cross roller bearing
thin section cross roller bearing factory
thin section cross roller bearing in stock
thin section cross roller bearing made in china

Series Model No. KG040CP0.KG042CP0.KG045CP0.KG047CP0.KG050CP0.KG055CP0.KG060CP0.KG065CP0.KG070CP0.KG075CP0.KG080CP0.KG090CP0.KG100CP0.KG110CP0.KG120CP0.KG140CP0.KG160CP0 .KG180CP0.KG200CP0.KG220CP0.KG250CP0.KG300CP0.KG350CP0.KG400CP0
Features
The thin-section radial contact ball bearing primarily designed for deep groove ball bearing to sustain heavy pressure. The basic design intention is not only to support radical load , but also can sustain middle axial load, rotary load and moment load.
Parameters

Model Dimension Basic load rating Weight
d D Width L1 L2 Cor Cr
inch Pounds
KG040CP0 4 6 1 4.742 5.258 36490 20000 1.65
KG042CP0 4.25 6.25 1 4.992 5.508 36490 20000 1.75
KG045CP0 4.5 6.5 1 5.242 5.758 38940 20900 1.81
KG047CP0 4.75 6.75 1 5.492 6.008 41340 21740 1.91
KG050CP0 5 7 1 5.742 6.258 43780 22580 2.02
KG055CP0 5.5 7.5 1 6.242 6.758 46230 23430 2.17
KG060CP0 6 8 1 6.724 7.258 51070 25030 2.31
KG065CP0 6.5 8.5 1 7.242 7.758 53520 25830 2.47
KG070CP0 7 9 1 7.742 8.258 58360 27380 2.67
KG075CP0 7.5 9.5 1 8.242 8.758 60810 28140 2.83
KG080CP0 8 10 1 8.742 9.258 65650 29600 3
KG090CP0 9 11 1 9.742 10.258 72990 31780 3.3
KG100CP0 10 12 1 10.742 11.258 80280 33870 3.65
KG110CP0 11 13 1 11.742 12.258 87570 35870 3.96
KG120CP0 12 14 1 12.472 13.258 94860 37830 4.32
KG140CP0 14 16 1 14.742 15.258 109440 41600 4.96
KG160CP0 16 18 1 16.742 17.258 124060 45250 5.65
KG180CP0 18 20 1 18.742 19.258 138640 48720 6.28
KG200CP0 20 22 1 20.742 21.258 153220 52100 7.53

thin section bearing KG type

Many other precision bearings series available
1.INA YRT rotary table bearings YRT50.....YRT1200
2.INA YRTS high speed Axial Radial Load Rotary table bearing YRTS200....YRTS460
3.INA YRTM rotary table bearings with AMO angle measuring system to improve the accurancy. YRTM150.....YRTM460
4.INA ZKLDF serie bi-direction thrust angular contact ball bearings ZKLDF100.....ZKLDF460
5.THK (IKO) RB/CRB/CRBC series crossed roller bearings Inner ring rotate bearing id 35mm----1500mm
6.THK RE series crossed roller bearings ,Outer ring rotate id 35mm----1500mm
7.THK RA thin section crossed roller bearing id 100mm---200mm
8.THK SX series crossed roller bearings ,ID 70mm--------500mm
9.THK RU Series integrate inner ring and outer ring ,industrial robots use cross roller bearing RU42---RU445
10.INA XU/XSU series cross roller slewing bearing,XU050077---XU300515,XSU080168---XSU090398
11.IKO CRBH series integrate inner ring and outer ring cross roller bearing CRBH5013------CRBH25025
12.Timken XR/JXR Crossed Tapered Roller Bearings ,used for high speed vertical lathe XR496051---XR,XR678052,XR766051,XR855053,XR882055,XR889058,JXR637050,JXR652050,JXR699050.
13.Kaydon Thin section ball bearings KA,KG,KD series.
14.Ceramic bearings
15.Slewing bearings
16.Custom bearings
