Stationary Placing Boom Concrete Pump , Concrete Placing Equipment 15kw Motor Power
Stationary Placing Boom Concrete Pump , Concrete Placing Equipment 15kw Motor Power
Specifications
Brand Name :
POTENTIAL
Model Number :
HG38
Certification :
ISO9001:2008, CE
Place of Origin :
HUNAN, CHINA
MOQ :
1 unit
Price :
Negotiable
Supply Ability :
200 units per year
Delivery Time :
25-45 working days
Packaging Details :
4x40'HQ
Power of motor (kW) :
15
height :
customized
color :
customized
Mode of operation :
cable remote control
counter weight :
8.0t
Mode :
radio remote control
Description

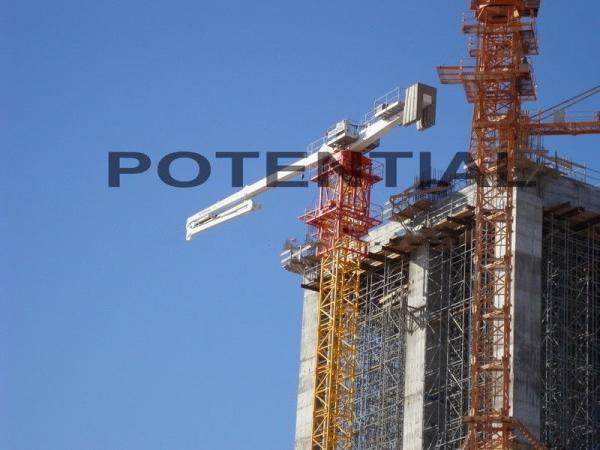

HG38 stationary concrete placing boom, climbing by adding mast section, wireless remote control

Applications

Designed for special structure construction such as concrete / cement / aluminum silo, nuclear power plant, TV tower, etc. It can be anchored on structures and grows up with the structure like how top-kit tower crane climbs

Features

■ Designed for special structure construction such as concrete / cement / aluminum silo, nuclear power plant, TV tower, etc. It can be anchored on structures and grows up with the structure like how top-kit tower crane climbs.

■ Stepless speed control brought by proportional valve unit. Minimized impact force. Stable operation. Smooth starting and stopping. More accurate boom positioning.

■ Fast coupling connectors equipped at all detachable ends, automatically shut all outlets when assembling and disassembling.

■ Hydraulic & electric parts from Germany, Italy and Japan.

■ The modes of operation: Wireless remote control and cable remote control.

Specifications

Model HG38
Boom Section 3
Delivery pipe dimension (outside diameter × thickness) (mm × mm) Φ133×4
Delivery hose dimension (inside diameter × length) (″×mm) 5″×3000
Radius of placing boom (m) 38
Stationary height (to the joint between the end of the boom and Swivel table) (m) 40.0 / max.151
Hydraulic foldable arm sections 1st section 20.8m
2nd section 9.2m
3rd section 8.0m
4th section N/M
Boom articulation (°) 1st section －4.2～82.5
2nd section 0°～180°
3rd section 0°～180°
4th section N/A
Slewing range (°) 360
Power of motor (kW) 15
Pressure of hydraulic system (MPa) 31.5
Type of hydraulic oil ESSO NUTO H46
Interval of climbing frame (m) Climbing N/A
Placing concrete N/A
Resting N/A
Mode of operation 1. cable remote control
2. radio remote control
Power 380V/50Hz
wind speed Placing concrete ≤60 km/h
Climbing ≤28 km/h
working temperature 0～48℃
