KGM1050QZ Arch Rib Lifting Machine Robotic Steel Support Machine Lifting Equipment
KGM1050QZ Arch Rib Lifting Machine Robotic Steel Support Machine Lifting Equipment
KGM1050QZ Arch Rib Lifting Machine Robotic Steel Support Machine Lifting Equipment
KGM1050QZ Arch Rib Lifting Machine Robotic Steel Support Machine Lifting Equipment
KGM1050QZ Arch Rib Lifting Machine Robotic Steel Support Machine Lifting Equipment
KGM1050QZ Arch Rib Lifting Machine Robotic Steel Support Machine Lifting Equipment
Specifications
Brand Name :
POTENTIAL
Model Number :
KGM1050QZ
Certification :
ISO9001:2008
Place of Origin :
HUNAN,CHINA
MOQ :
1 unit
Payment Terms :
L/C, T/T
Supply Ability :
30 units per year
Delivery Time :
50 working days
Packaging Details :
1 unit in 1x40'FR
Price :
Negotiable
operation :
wireless remote control
power :
diesel and motor
Items :
Parameters
Weight when carring anchor (kg) :
29600
Dimension in transportion (L x W x H) (m) :
9500 x 3500 x 3000
Max. gradeability (°) :
22
Description

KGM1050QZ Arch Rib Lifting Machine, robotic steel support installing in tunnels, additional rock drilling function

Application

The KGM1050QZ is a self-propelled 2-boom lifters for robotic steel support installing and man lifting in tunnels, motor and diesel engine, integrated rock drilling fuction for anchor bolts. The lastest tunnel equipments researched by POTENTIAL is a creation in the world, we own fully inttectual property rights, including 12 patents of invention, more than 20 patents for utility models and 1 design patent.

Features

The working device on the boom is composed of grabbing manipulator, hydraulic rock drill, platform and small crane. Boom is controlled from wireless remote control and from the platform. The platform is specially designed for mechanized installation of steel supports and it is equipped with full rotation and automatic levelling system.

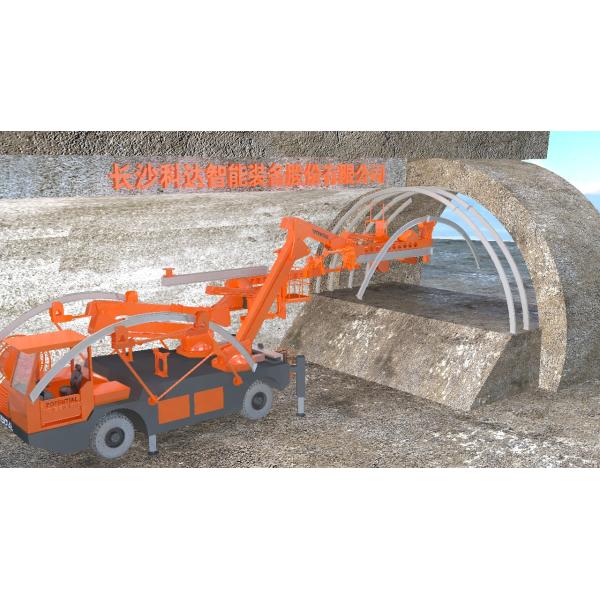

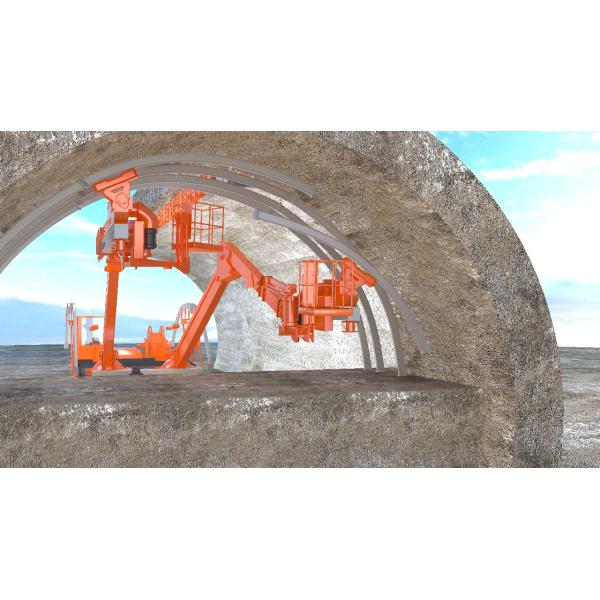

Arch Rib Lifting and installation

KGM1050QZ Arch Rib Lifting Machine Robotic Steel Support Machine Lifting Equipment KGM1050QZ Arch Rib Lifting Machine Robotic Steel Support Machine Lifting Equipment

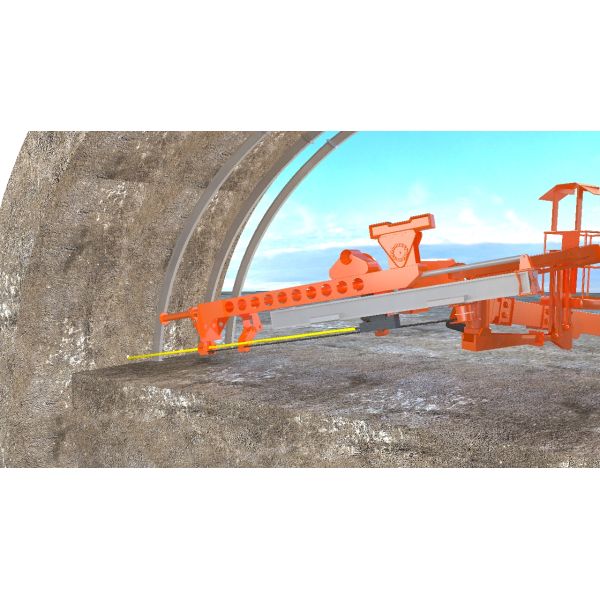

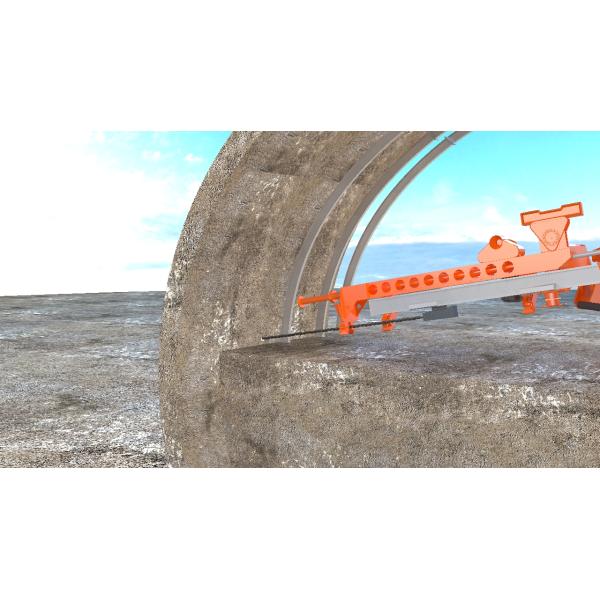

Drilling and Anchor Bolt installation

KGM1050QZ Arch Rib Lifting Machine Robotic Steel Support Machine Lifting Equipment KGM1050QZ Arch Rib Lifting Machine Robotic Steel Support Machine Lifting Equipment

Specifications

Items Parameters
Max. load of grabbing manipulator (kg) 500
Hole diameter of rock drill (mm) 33-64
Hole depth of rock drill (m) 4.2
Drilling speed of rock drill (m/min) 1-1.5
Walking speed of whole machine (km/h)

0-8 (low gear)

8-18 (high gear)
Minimum turning radius(m) inner 2m/ outer 6.3m
Max. gradeability (°) 22
Max. load of small crane (kg) 500
Max. load of platform (kg) 200
Max. vertical reach (m) 12
Max. horizontal reach (m) 15
Dimension in transportion (L x W x H) (m) 9500 x 3500 x 3000
Weight in transporation (kg) 28000
Dimension when carring anchor (L x W x H) (m) 13000 x 4000 x 4200
Weight when carring anchor (kg) 29600

KGM1050QZ Arch Rib Lifting Machine Robotic Steel Support Machine Lifting Equipment KGM1050QZ Arch Rib Lifting Machine Robotic Steel Support Machine Lifting Equipment

KGM1050QZ Arch Rib Lifting Machine Robotic Steel Support Machine Lifting Equipment KGM1050QZ Arch Rib Lifting Machine Robotic Steel Support Machine Lifting Equipment
