Specifications
Brand Name :
KEHUI
Model Number :
KHGC, KHGK, KHB12-80
Certification :
ISO, SGS, CE
Place of Origin :
Henan, China
MOQ :
1 set
Price :
$15000-$30000 per set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
15 working days
Packaging Details :
Waterproof antirust wooden cases seal packages
Output Polarity :
AC/DC TIG
Rated Input Voltage :
220/380V
Material / Metal Processed :
essed: Carbon Steel, Stainless Steel, Aluminium Alloy
Contron system :
PLC control system
Tube wall thickness :
2.5~15mm
Current :
4~315A
Welding speed :
0.1~5rpm
Welding source :
Water cooling system
Welding way :
TIG MIG MAG ARC
Service life :
8~13 years
Description

Production Introduction

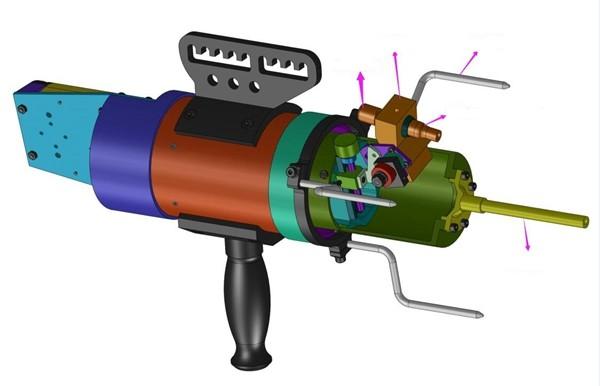

KHGC series Enclosed Head type pipe orbital welding machines can be used for tube outer diameter from Ф3-Ф180mm tube-tube automatic welding at all positions. It is especially suitable for welding carbon steel, alloy steel, stainless steel and titanium alloy thin-walled tubes.

Advantage:

1. Mature technology, sealed welding, weld pipe perfect. Used the maxon servo motor adapt for small space; The welding head can be rotated continuously and don't need the spot welding joint.

2. Welding accurate. Using IGBT inverter dc pulse and TIG power supply with the advanced control technology to ensure the finished product is perfect.

3. 7 types of welding heads to adapt different requirements. Customer could choose the welding head according the pipe size and your space. You also could buy some different heads to cooperate the control system for cost saving.

4. Digital programming and LCD touch. The system store could have 100 different process specifications and each one can be divided into 6 sections. You can used it anytiome.

The KHGC MIG welding machine have 7 types to suitable for welding different pipe diameters. Customer could choose it by your siae of need welding pipe and space.

It's also could buy a set of control system and different welding head to used for different pipe.

Application for chemical, boiler, heat exchanger, pressure vessel, pharmaceutical, construction machinery, military and nuclear power industries.

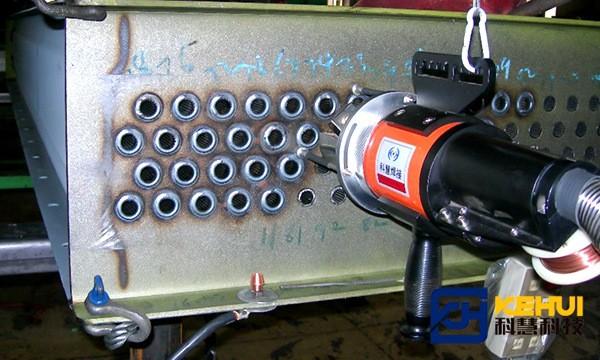

This is the reality effect show uesd of our MIG welding machine.
