FD-V166 6-AXIS ROBOTS For Spot Welding and handing of heavy loads and handing of heavy loads Current: 85-100A
FD-V166 6-AXIS ROBOTS For Spot Welding and handing of heavy loads and handing of heavy loads Current: 85-100A
Specifications
Brand Name :
Kehui Technology
Model Number :
FD-V166
Certification :
ISO9001, CE, CU-TR
Place of Origin :
Henan, China
MOQ :
1 production line
Payment Terms :
L/C, T/T, Western Union, MoneyGramSupply
Supply Ability :
20 sets per year
Delivery Time :
180 days after payment
Packaging Details :
in wooden box
Current :
85-100A
Voltage :
17.5-19.0V
Maximum :
Capacity 166kg
Driving Capacity :
18000W
Number of Axes :
6
Paint Color :
White
Description
The FD Robot series for production and handling applications offers several advantages: They fulfill their functions at high speed and accuracy.They are suitable for grinding and milling. Also applications like palletizing and spraying are possible. The t

Application:

The Fd-V166 6-axis, long-reach robot is used for arc welding, laser hybrid welding, thermal spraying, spot welding, gluing, or handing.
1.Allows for high productivity-While shortening the cycle time, it still allows for high productivity.
2.Reduces equipment costs-The shorter lines of high density installations can reduce equipment costs.
3.Reduced maintenance manipulator design-Frequency and magnitude of maintenance tasks have been reduced through smart manipulator design.
4.Efficiency-Higher efficiency by handling heavy loads.
5.Avoiding collisions-Interference detection sensitivity improved.
6.Built-in cable storage-Optimally protected, neat cable layout preventing the cable from getting caught during robot operation.
7.Maintenance-friendly-Cable routing easily accessible.
During the welding procedure, welding wire keeps loading automatically and CO2 gas gets sprayed to the welding part continuously.
FD-V166 6-AXIS ROBOTS For Spot Welding and handing of heavy loads and handing of heavy loads Current: 85-100A
Model FD-166V
Number of Axes 6
Maximum Capacity 166kg
Positional Repeat-ability ±0.01mm
Driving Capacity 18000W

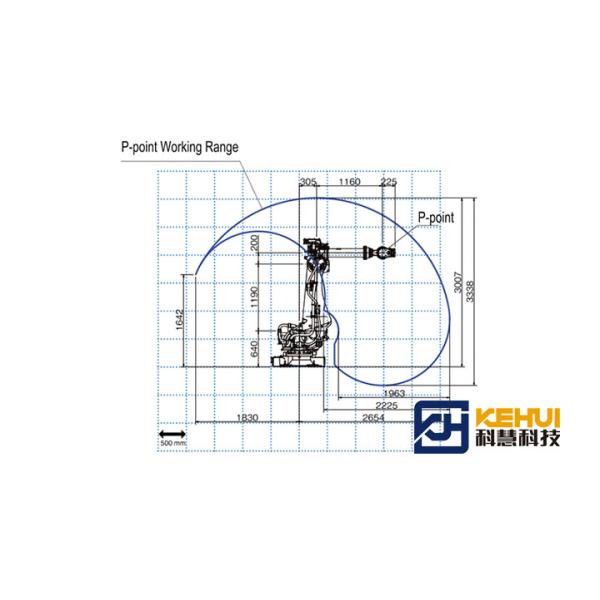

Working Ranges Arm J1(Rotation) ±180°
J2(Lower arm) ﹣80°~﹢60°
J3(Upper arm) ﹣146.5°~﹢150°
Wrist J4(Swing) ±360°
J5(Bending) ±135°
J6(Twist) ±360°
Wrist Allowable Load Allowable Moment J4(Swing) 951N·m
J5(Bending) 951N·m
J6(Twist) 490N·m
Allowable Moment
Of Inertia		 J4(Swing) 88.9kg·m²
J5(Bending) 88.9kg·m²
J6(Twist) 45kg·m²
Maximum Speed Arm J1(Rotation) 2.18rad/s｛125°/s｝
J2(Lower arm) 2.01rad/s｛115°/s｝
J3(Upper arm) 2.11rad/s｛121°/s｝
Wrist J4(Swing) 3.14rad/s｛180°/s｝
J5(Bending) 3.02rad/s｛173°/s｝
J6(Twist) 4.54rad/s｛260°/s｝
Arm Cross Sectional Area 6.58m²x360°
Environmental Conditions 0~45℃,20~80%RH(No condensation)
Mass (weight) 1010kg
Maximum Load of Upper Arm 45kg(90 kg max)
Installation Method Floor-mounted
Paint Color White
