Hex Tapered Rod Wear Resistance Tapered Threaded Rod For Mining Industry Shank

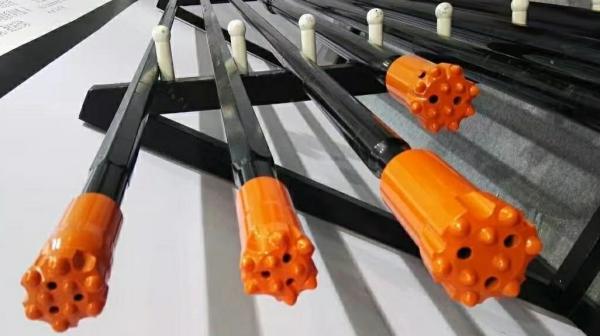

Tapered drill rod,also called taper rod, tapered drill steels, This provides a hexagonal chuck section to provide leverage for the rotation chuck bushing. It usually has a forged collar to maintain the proper shank striking face position in the rock drill, and a tapered bit end. Tapered steel lengths— available from 0.6 mto 3.6 m in length—are measured from the collar to the bit end.

Our Tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Drillers choose tapered button bits for faster drilling penetration rate. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning.

Our Tapered drill rods are made from the best steels and alloys in China,from Japan or Germany CNC lathe thread and drilling alloy perforations to ensure the accuracy of the ball tooth bit. Advanced thermal inlay technology ensures that the quality of each ball bit is stable.

The ball tooth bit uses different alloy teeth (hemispherical teeth, bullet teeth, parabolic teeth, etc. according to different rock formation structures and hardness. We can make alloy ball tooth drills of different specifications and different forms according to different needs of users. Widely used in mining, tunneling, underground plant excavation and other construction sites. It is an ideal substitute for the same type of ball tooth bit in foreign countries, with stable quality and high cost performance.

Technical Reference

Why choose our Rock drill tools?

1.Tapered rock drill rod connect with button bits perfectly for drilling holes
2.Stable and mature welding technology ensure high quality of bits
3.Accurate dimension of taper degree perfectly matches the button bits
4.work reliable and very cost-effective
5. Rod bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
Applications
• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry
• Widely used in Underground Mining Industry

1. Packing details : Wooden case and steel bundle.

2. Handling time for an order
Based on order quantity, normally it takes 15-30 days for production.
Only 2 or 3 days if we have stock on your request size.
3. Shipping way
Sample order: We suggest Express like DHL/UPS/TNT/FEDEX/EMS or by air.
Bulk order: We suggest by sea shipment .

We specialize in Rock drilling tools, including rock drill bits,tapered drill tools,threaded drill tools,Down the hole drilling tools ( DTH ), which are widely used in mining , quarrying , well drilling and construction . All these products are compatible with other world world leading brands such as Atlas Copco , Sandvik , Mitsubishi and Boart Longyear .

Test is the best way to find suitable rock drilling tools, for samples please Email drillbit@qq.com
