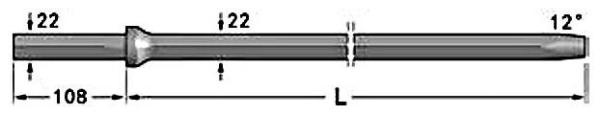

Hexagonal Steel Tapered Rock Drill Rods Shank 22 x 108mm 12 Degree
Hexagonal Steel Tapered Rock Drill Rods Shank 22 x 108mm 12 Degree
Hexagonal Steel Tapered Rock Drill Rods Shank 22 x 108mm 12 Degree
Hexagonal Steel Tapered Rock Drill Rods Shank 22 x 108mm 12 Degree
Specifications
Brand Name :
SUVEC
Model Number :
tapered drill rod
Certification :
ISO
Place of Origin :
China
MOQ :
1 piece
Price :
negotiable
Supply Ability :
10000 pieces/month
Delivery Time :
15 days
Packaging Details :
standard rock drill rods package: Standard package by wooden case or customized by your reque
Use :
Small Hole Blast
Degree :
7degree,11degree, 12 Degree
Match :
Pneumatic & Gasoline Rock Drill
Length :
600mm---8000mm
Shank Size :
H19*108mm,H22*108mm, H25*159mm
Name :
Hexagonal Tapered Rock Drill Rods
Description

Hexagonal Steel Tapered Rock Drill Rods Shank 22 x 108mm 12 Degree

Our apered drill rods are made from the best steels and alloys in China,from Japan or Germany CNC lathe thread and drilling alloy perforations to ensure the accuracy of the ball tooth bit. Advanced thermal inlay technology ensures that the quality of each ball bit is stable.

Applications
• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry
• Widely used in Underground Mining Industry

The ball tooth bit uses different alloy teeth (hemispherical teeth, bullet teeth, parabolic teeth, etc. according to different rock formation structures and hardness. We can make alloy ball tooth drills of different specifications and different forms according to different needs of users. Widely used in mining, tunneling, underground plant excavation and other construction sites. It is an ideal substitute for the same type of ball tooth bit in foreign countries, with stable quality and high cost performance.

Tapered drill rod,also called taper rod, tapered drill steels, This provides a hexagonal chuck section to provide leverage for the rotation chuck bushing. It usually has a forged collar to maintain the proper shank striking face position in the rock drill, and a tapered bit end. Tapered steel lengths— available from 0.6 mto 3.6 m in length—are measured from the collar to the bit end.

Hexagonal Steel Tapered Rock Drill Rods Shank 22 x 108mm 12 Degree

Technical Reference

Product Name: Hex tapered rod
Types Tapered drill rods, Integral drill rods, Plug hole rods
Application:: Tapered drill rods are used in granite and marble quarry, gold mine, railway, tunnel, etc. for drilling
we can produce as your request of carbide size, different length of drill rods.
Types of drill rods Specifications Length (mm) Shank Weight (kg)
Tapered drill rods Taper Angle: 4, 6, 7, 11, 12 degree 400mm to 8000mm Hex22mm*108mm Hex25mm*159mm Hex19mm*108mm 1.7 - 24.9
Integral drill steel Bit diameter: 26mm, 28mm, 30mm, 32mm, 34mm, 36mm, 38mm, 40mm, 42mm 400mm to 4800mm 3 – 15.4
Plug hole rods Chisel bit diameter: 17mm, 20mm, 22mm 150mm to 710mm

0.6 - 2.9

Packing details : Wooden case and steel bundle.

we specialize in Rock drilling tools, including rock drill bits,tapered drill tools,threaded drill tools,Down the hole drilling tools ( DTH ), which are widely used in mining , quarrying , well drilling and construction . All these products are compatible with other world world leading brands such as Atlas Copco , Sandvik , Mitsubishi and Boart Longyear .

Test is the best way to find suitable rock drilling tools, for samples please Email drillbit@qq.com
