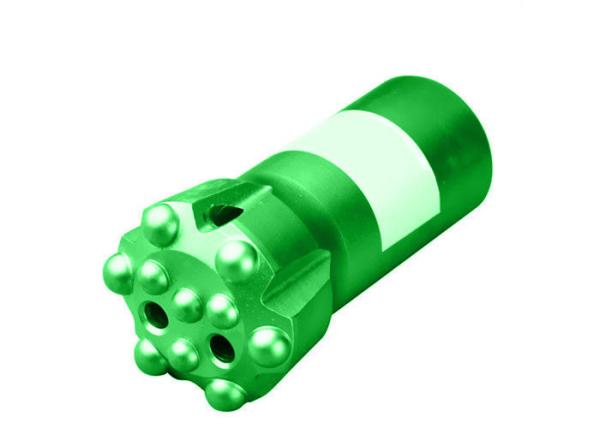

Fast Penetration Spherical Thread Rock Button Drill Bit For Hydraulic Machine
Fast Penetration Spherical Thread Rock Button Drill Bit For Hydraulic Machine
Fast Penetration Spherical Thread Rock Button Drill Bit For Hydraulic Machine
Fast Penetration Spherical Thread Rock Button Drill Bit For Hydraulic Machine
Specifications
Brand Name :
SUVEC
Model Number :
Threaded Button Bit
Certification :
ISO
Place of Origin :
China
MOQ :
1 piece
Price :
negotiable
Supply Ability :
10000 pieces/month
Delivery Time :
15 days
Packaging Details :
standard rock drill bit package: Standard package by wooden case or customized by your request.
Diameter :
33-152mm
Drill Feature :
Fast Penetration
Face Shape :
Flat shape and Drop-center shape
Button shape: :
spherical
Body Design :
Mitsubishi, Atlas Copco Design
Name :
Rock Button Bit for Hydraulic Machine
Description

Fast Penetration spherical Thread Rock Button Drill Bit for Hydraulic Machine

Threaded button drill bits are suitable for powerful percussive drills and top hammers with high speed drifter, such as Atlas Copco 282 rocket boomer, Atlas Copco 352 rocket boomer jumbo, AtlasCopcoD7roc, FurukawaHCR 1200, Tamrock, and Ingesoll Rand ECM660, the products are widely used in bench and production drilling, extensional drilling,
Threaded drill bits include general,retrac and reaming three series,with stronger button-fixing ability,longer service life,better wear-resistance and impact-resistance performance,widely used in tunneling,underground mining,open pit mining,anchoring and other large-scale construction projects.

Deep Hole Drilling Tools mainly include thread drill rods, shank adapter, coupling sleeve and the drill bit parts, deep drilling tools mainly include thread 9 models: R3212 / R32 / HL38 / T38 / T45 / T51 / T60 / ST58 / ST68 column can be equipped with tooth bit, cross drill bits and drilling tools reaming bits．　
Fast Penetration Spherical Thread Rock Button Drill Bit For Hydraulic Machine

Our Drill Bits Inquiry or order Guide:

Thread button drill bits are made by high quality alloy steel bar and tungsten carbides. Through heat treatment, our drilling tools are tough enough to meet rock drilling demands and have the least loss of energy while drilling the rocks. Besides, we can design customized thread button drill bits according to different drilling application, and custom drill bits are applicable to drill soft rock, loose-medium rock and hard rock.

Before inquiry or formal order,it will be helpful to provide detail info as belows:

1.Thread Connect type&bit diameter R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, GT60 etc and bit diameter for thread
2.Bit face type Drop Center (DC), Flat Face(FF), Convex, Concave etc...
3.Bit body type Regular skirt, Retract bit, Guide bit and Reaming bit
4.Carbide Button shape(tip shape)

spherical, ballistic, parabolic etc

Test is the best way to find suitable rock drilling tools, for samples please Email drillbit@qq.com
