41mm Bit Diameter Rock Tools Integral Drill Rod With Tungsten Carbide Tool Tips
41mm Bit Diameter Rock Tools Integral Drill Rod With Tungsten Carbide Tool Tips
41mm Bit Diameter Rock Tools Integral Drill Rod With Tungsten Carbide Tool Tips
41mm Bit Diameter Rock Tools Integral Drill Rod With Tungsten Carbide Tool Tips
Specifications
Brand Name :
SUVEC
Model Number :
integral drill steel
Certification :
ISO
Place of Origin :
China
MOQ :
1 piece
Price :
negotiable
Supply Ability :
30000 pieces/month
Delivery Time :
15 days
Packaging Details :
standard integral drill steel package: Standard package by wooden case or customized by your request.
Use :
Tunnelling, Quarry, Bench Rock Drilling
Bit diameter :
26mm, 28mm, 30mm, 32mm, 34mm, 36mm, 38mm, 40mm, 42mm
Shank :
Hex22x108mm, Hex19mmx108mm, Hex25mmx159mm
Length :
400mm to 8000mm
Material :
High quality carbide and steel
Product Name :
Tungsten Carbide Tips Integral Drill Rod
Description

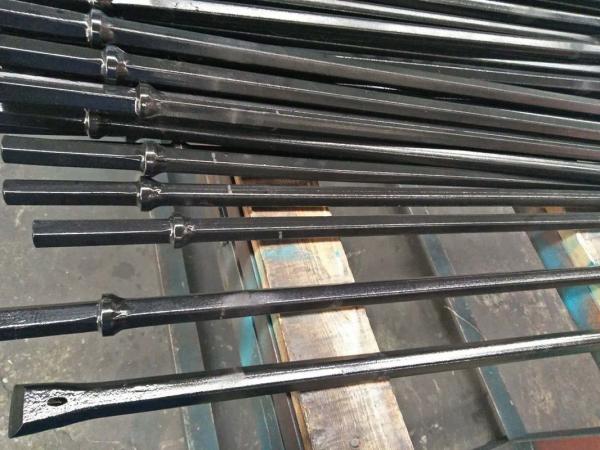

41mm Bit Diameter Rock Tools Integral Drill Rod With Tungsten Carbide Tool Tips

Integral drill steel, another name called integral drill rod, which is used by hand held rock drill in granite and marble quarries, underground mining, for small blasting hole. Shank H22*108mm, H19*108mm, and standard hex. Bit diameters range 20-42mm, different lengths are available from 400mm to 6000mm usually.
It can reduces the expense of impact energy, improves the drilling speed and efficience, also it can be used for drilling bore hole diameter form 19mm to 41mm usually.
Each rods use premium quality alloy steel and excellent quality tungsten carbide to assure high drilling performance.

Product Name: hard rock Mining Integral drill steel,Integral drill rod
Types Tapered drill rods, Integral drill rods, Plug hole rods
Application:: Tapered drill rods are used in granite and marble quarry, gold mine, railway, tunnel, etc. for drilling
Material: High quality carbide and high quality steel
We can produce as your request of carbide size, different length of drill rods.
Types of drill rods Specifications Length (mm) Shank Weight (kg)
Tapered drill rods Taper Angle: 7, 11, 12 degree 400mm to 8000mm Hex22mm*108mm Hex25mm*159mm Hex19mm*108mm 1.7 - 24.9
Integral drill steel Bit diameter: 26mm, 28mm, 30mm, 32mm, 34mm, 36mm, 38mm, 40mm, 42mm 400mm to 4800mm 3 – 15.4
Plug hole rods Chisel bit diameter: 17mm, 20mm, 22mm 150mm to 710mm 0.6 - 2.9

41mm Bit Diameter Rock Tools Integral Drill Rod With Tungsten Carbide Tool Tips
The process procedure is listed below:
1. sawing the steel rod and steel pipe
2. drilling the steel rod
3. CNC lathing the hollow steel rod to make screw thread for head and end parts of rod
4. makeing flat parts for head part
5. welding the two parts with steel pipe
6. lathing the redundant steel welding ring
7. painting and packing

Advantages of our Drill Steels:
1. Our products can match over 95% against the original products
2. Price are competitive against the famous brands and best quality against the small factory
3. Our factory has been specialized in manufacturing drilling tools and spare parts for over 10 years.
4. We have advanced technology and equipment.
5. Our technician has more than 20 year’s professional working experience.
6. Our rock drilling tools have been exported throughout the world. Main market: Norway, USA,Canada,Brazil, Uganda,UAE, Philippines, Thailand etc.
Packing details : Wooden case and steel bundle.
41mm Bit Diameter Rock Tools Integral Drill Rod With Tungsten Carbide Tool Tips
Keywords: drill rod | la barra de taladro | broca Rod | forer tige | Bohrgestänge | çubuk matkap | drill rod hard rock Mining Integral drill We specialize in Rock drilling tools, including rock drill bits,tapered drill tools,threaded drill tools,Down the hole drilling tools ( DTH ), which are widely used in mining , quarrying , well drilling and construction . All these products are compatible with other world world leading brands such as Atlas Copco , Sandvik , Mitsubishi and Boart Longyear.
Test is the best way to find suitable rock drilling tools, for samples please Email drillbit@qq.com
