King Cobra Brandt Shaker Screens , Oil Drilling Vibrating Screen Wire Mesh
King Cobra Brandt Shaker Screens , Oil Drilling Vibrating Screen Wire Mesh
King Cobra Brandt Shaker Screens , Oil Drilling Vibrating Screen Wire Mesh
King Cobra Brandt Shaker Screens , Oil Drilling Vibrating Screen Wire Mesh
Specifications
Brand Name :
GUANGMING
Model Number :
GMTK
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
10PC
Price :
USD40 per PC
Payment Terms :
Western Union
Supply Ability :
200PC PER DAY
Packaging Details :
2 pcs/carton box, 50 carton boxes/wooden box , OR as your request
mesh material :
SS304 or 316
Type :
Mine Sieving Mesh
Mesh Layer :
2 or 3
Model :
steel frame
Description


King Cobra Brandt Shaker Screens , Oil Drilling Vibrating Screen Wire Mesh

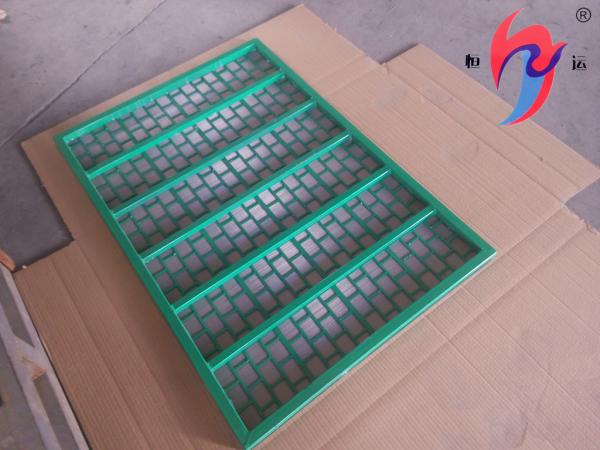

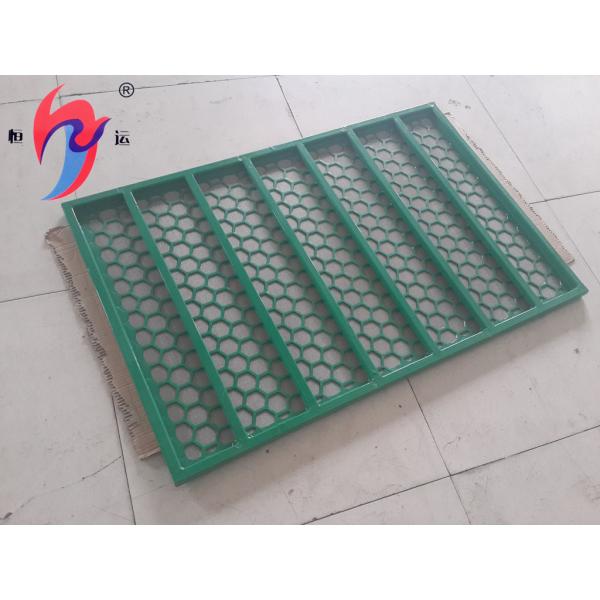

Steel Frame shale shaker Screen is the most widely used screen,the features of screen of this type:
1. The stainless steel wire cloth combined directly bonded on the steel plank, then tightly bonded together by steel frames and metal plank.
2. Every layer of wire cloth has different meshes, accurately and reasonably making screening more micro mesh.
3. It forms a reliable whole, with high-strength steel frame, reinforced supports and moderate tension screening cloth, which greatly enhances the tolerate flow, strength and working life .Rapid wedge tensioning devices make screen installation more convenient, and save the time of machine halt for changing .
4. The surface is divided into more small parts. They can prevent excessive expansion of local damage. At the same time, we have the special rubber plug to repair the damage. It can save time and reduce the cost.

Screen Model Range of Mesh Dimension
(Width x Length)		 Brand & Model of Shaker
GMTK-1 20-325 585×1165mm MONGOOSE
GMTK-2 20-325 635×1253mm KING COBRA
GMTK-3 20-325 913×650mm VSM300
GMTK-4 20-325 720×1220mm KTL48 SERIES
GMTK-5 20-325 712×1180mm D380
GMTK-6 20-325 737*1067mm FSI 50＆500＆5000


API RP 13C(ISO 13501)
D100 Separation(Microns) API Screen Number
>780.0 to 925.0 API 20
>655.0 to 780.0 API 25
>550.0 to 655.0 API 30
>462.5 to 550.0 API 35
>390.0 to 462.5 API 40
>327.5 to 390.0 API 45
>275.0 to 327.5 API 50
>231.0 to 275.0 API 60
>196.0 to 231.0 API 70
>165.0 to 196.0 API 80
>137.5 to 165.0 API 100
>116.5 to 137.5 API 120
> 98.0 to 116.5 API 140
> 82.5 to 98.0 API 170
> 69.0 to 82.5 API 200
> 58.0 to 69.0 API 230
> 49.0 to 58.0 API 270
> 41.5 to 49.0 API 325


King Cobra Brandt Shaker Screens , Oil Drilling Vibrating Screen Wire Mesh King Cobra Brandt Shaker Screens , Oil Drilling Vibrating Screen Wire Mesh

King Cobra Brandt Shaker Screens , Oil Drilling Vibrating Screen Wire Mesh King Cobra Brandt Shaker Screens , Oil Drilling Vibrating Screen Wire Mesh



King Cobra Brandt Shaker Screens , Oil Drilling Vibrating Screen Wire Mesh King Cobra Brandt Shaker Screens , Oil Drilling Vibrating Screen Wire Mesh


GUANGMING METAL PRODUCTS CO., LTD strives for the existence by qualiy,for development by reputation. Our company has high quality products,best prices and reliable after -sale services. On the basis of mutually beneficial and friendly cooperation. We really hope to establish good business relationship and create a better future with old and new customers at home and abroad .
