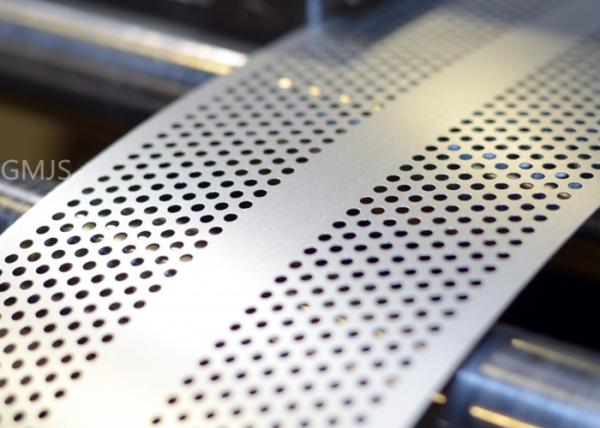

316 Stainless Steel Perforated Metal Sheet , Stainless Steel Decorative Wire Mesh
316 Stainless Steel Perforated Metal Sheet , Stainless Steel Decorative Wire Mesh
316 Stainless Steel Perforated Metal Sheet , Stainless Steel Decorative Wire Mesh
316 Stainless Steel Perforated Metal Sheet , Stainless Steel Decorative Wire Mesh
Specifications
Brand Name :
GUANGMING
Model Number :
GMCK
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
1 pcs
Payment Terms :
L/C, , T/T
Material :
SS Steel
Type :
Perforated Mesh
Application :
Filter
Hole Shape :
Hexagonal, round, Squire, Retangle, etc.
Feature :
Beautiful, Anti-corrossion
Keywords :
Perforated metal
Description

China factory supply 316 stainless steel perforated metal/SUS304 stainless steel decorative wire mesh

Specification
1) Material

Our Perforated Metal Sheet always choose premium raw material

include stainless steel sheet, iron sheet, galvanized metal sheet aluminum sheet and so on.
2) Hole Pattern The perforated Hole Pattern we can do:Round, Rectangular,Square, Triangle, Diamond, Hexagonal, Cross, Slotted and any other special patterns.
3) Applications The perforated metal sheets can regularly used for screening,decoration, sifting, filtration, drying, cooling, cleaning and any other applications.
4) Customizable The hole pattern, sheet size, raw material of perforated metal sheetcan precisely made according to the customers' specifications.
5) The factors in Quotation *Perforated Hole Pattern
*Sheet shape & size
*Raw material
*Unique Requirements
*Applications
*Any specifications you need concern the products.

ROUND HOLES STAGGERED PATTERN
HOLE CENTERS

GAUGE / PLATE

THICK.

 OPEN AREA
.020" RD .045" Stag 26 18%
1/32" RD 1/16" Stag 22 23%
3/64" RD 5/64" Stag 24 33%
3/64" RD 3/32" Stag 22 thru 18 23%
1/16" RD 3/32" Stag 22 thru 16 40%
1/16" RD 7/64" Stag 20 thru 16 30%
1/16" RD 1/8" Stag 26 thru 16 23%
5/64" RD 1/8" Stag 22 thru 14 35%
3/32" RD 5/32" Stag 24 thru 14 33%
3/32" RD 3/16" Stag 24 23%
.117 RD 5/32" Stag 18 51%
1/8" RD 3/16" Stag 24 thru 11 40%
1/8" RD 7/32" Stag 14 thru 12 30%
1/8" RD 1/4" Stag 14, 13 23%
9/64" RD 3/16" Stag 18 51%
5/32" RD 3/16" Stag 22 thru 16 63%
5/32" RD 1/4" Stag 20 thru 10 35%
3/16" RD 7/32" Stag 22 thru 16 67%
3/16" RD 1/4" Stag 24 thru 12 51%
3/16" RD 5/16" Stag 10, 3/16" 33%
3/16" RD 3/8" Stag 14 thru 10 23%
1/4" RD 5/16" Stag 20 thru 16 58%
1/4" RD 3/8" Stag 26 thru 1/4" 40%
17/64" RD 5/16" Stag 20 66%
5/16" 7/16" Stag 20 thru 1/4" 46%
3/8" RD 9/16" Stag 20 thru 1/4" 40%
1/2" RD 11/16" Stag 20 thru 1/4" 48%
1/2" RD 3/4" Stag 16 40%
5/8" RD 7/8" Stag 10 thru 1/4" 46%
3/4" RD 1" Stag 16 thru 1/4" 51%
1" RD 1-3/8" Stag 10 thru 1/4" 48%
1-1/4" RD 1-5/8" Stag 1/4" 54%
1-1/2" RD 2" Stag 1/4" 51%
2" RD 2-1/2" Stag 1/4" 58%
2-1/2" RD 3" Stag 3/16" 63%
3" RD 3-1/2" Stag 3/16" 67%
4" RD 4-1/2" Stag 10 72%

316 Stainless Steel Perforated Metal Sheet , Stainless Steel Decorative Wire Mesh
