SS 304/316 2000 Shale Shaker Screen / Steel Oil Vibrating Screen
SS 304/316 2000 Shale Shaker Screen / Steel Oil Vibrating Screen
Specifications
Brand Name :
HENGYUN
Model Number :
GMB-
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1PC
Supply Ability :
200PC PER DAY
Packaging Details :
2 pcs/carton box, 50 carton boxes/wooden box , OR as your request
mesh material :
SS304 or 316
Dimension(W*L) :
697*1053mm
Type :
Filter Elements
Mesh Layer :
2 or 3
Description

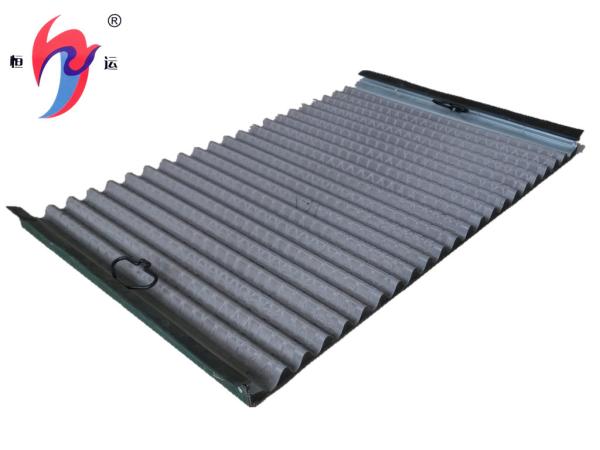

304/316 Oil Drilling Tools Stainless Steel 2000 weave Shale Shaker Screen

The feature of Shale Shaker Screen:


1. Shale Shaker Screen has large effective area, and drilling fluid is handle in high-efficiency by using it.


2. Each wire cloth in the sieving screen has different meshes, and accurate collocation can make the screen has better effect.


3. Stainless steel wire cloth is wave, and closely holds to metal support plank together. The effective area is up to 125% to 150% of the flat screen with the same specification, so as to improve of handling capacity.

SS 304/316 2000 Shale Shaker Screen / Steel Oil Vibrating Screen


Our factory can produce various specifications wave screen according to customer demand.

Screen Model Range of Mesh Dimension(W*L) Brand&Model of shaker
GMB--1 20-325 697X1053mm 2000
GMB--2 20-325 695x1050mm
GMB--3 20-325 710x626mm 600
GMB--4 20-325 567x1070mm D-HYP

API RP 13C(ISO 13501)
D100 Separation(Microns) API Screen Number
>780.0 to 925.0 API 20
>655.0 to 780.0 API 25
>550.0 to 655.0 API 30
>462.5 to 550.0 API 35
>390.0 to 462.5 API 40
>327.5 to 390.0 API 45
>275.0 to 327.5 API 50
>231.0 to 275.0 API 60
>196.0 to 231.0 API 70
>165.0 to 196.0 API 80
>137.5 to 165.0 API 100
>116.5 to 137.5 API 120
> 98.0 to 116.5 API 140
> 82.5 to 98.0 API 170
> 69.0 to 82.5 API 200
> 58.0 to 69.0 API 230
> 49.0 to 58.0 API 270
> 41.5 to 49.0 API 325

SS 304/316 2000 Shale Shaker Screen / Steel Oil Vibrating Screen SS 304/316 2000 Shale Shaker Screen / Steel Oil Vibrating Screen

GUANGMING METAL PRODUCTS CO., LTD strives for the existence by qualiy,for development by reputation. Our company has high quality products,best prices and reliable after -sale services. On the basis of mutually beneficial and friendly cooperation. We really hope to establish good business relationship and create a better future with old and new customers at home and abroad .

SS 304/316 2000 Shale Shaker Screen / Steel Oil Vibrating Screen SS 304/316 2000 Shale Shaker Screen / Steel Oil Vibrating Screen
