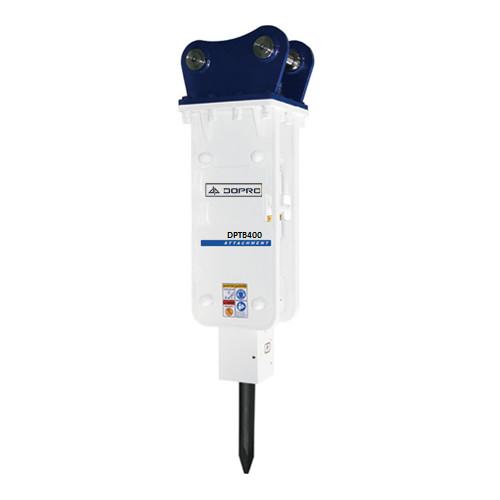

Tool 45mm SB45 1.2-3ton Top Type Mini Excavator Rock Breaker For John Deere Bobcat Backhoe Loader
Tool 45mm SB45 1.2-3ton Top Type Mini Excavator Rock Breaker For John Deere Bobcat Backhoe Loader
Tool 45mm SB45 1.2-3ton Top Type Mini Excavator Rock Breaker For John Deere Bobcat Backhoe Loader
Tool 45mm SB45 1.2-3ton Top Type Mini Excavator Rock Breaker For John Deere Bobcat Backhoe Loader
Specifications
Brand Name :
Dopro
Model Number :
DPTB450
Certification :
ISO CE
Place of Origin :
CHINA
MOQ :
1
Price :
20-200
Supply Ability :
2000 Pcs Per Month
Delivery Time :
5-7 Working Day
Packaging Details :
Export Wooden Cases /Box
Warranty :
12 Months
Color :
Yellow,Customer Required
Application :
Mining,Crawler Excavator,Construction
Type :
Top type/ Side type/ Box type
After-sales service provided :
Online support,Video technical support
Material :
42CrMo,20CrMo
Chisel diameter :
45mm,40 - 210 mm
Condition :
100%new
Name :
hydraulic breaker for backhoe loader,Hydraulic hammer rock breaker for excavator,Hydraulic breaking hammer
Part name :
Hydraulic hammer rock breaker,Rock Breaker /Mini Hydraulic Hammer for Excavator and Wheel Loader
Product name :
Soosan Hydraulic Breaker,Hydraulic Hammer Rock Breaker,Hammer For Excavator
Oem :
yes
System :
Hydraulic-gas System
Oem/odm :
Available,Acceptable
Description

Tool 45mm SB45 1.2-3ton top Type Hydraulic Mini Excavator hammer Rock Breaker for john deere Bobcat backhoe loader

Product application range
Mining: Breaking ore rocks, Second time crushing, Screen crushing
Metallurgy: Steel ladle and slag cleaning, Fumace dismantling, Equipment foundation removal
Public road: Highway repair, Cement pavement broken, Foundation excavation
Railway: Mountain and tunnel excavation, Road and bridge demolition, Subgrade compaction
Building: Demolition of old buildings, Broken reinforced concrete
Ship repairing and Construction: Removing clam and rust
Others: Breaking ice, Breaking frozen soils, Sand mold Vibration
Our Advantages Product Classification
1) Applicable for different brands of excavators, simple& convenient &comfortable operation, easy maintenance
2) High Quality & high precision, high stability &high durability.
3) Low rate of chisel breakage and high working efficiency
4) Wear-resistant and super heat treatment technology
5) Low noise, saving energy and protecting environment
6) Powerful Hydraulic System Increased the Impact of Nitrogen
7) ISO certified by local Authority

Dopro Hydraulic breakers are fitted to all brands' excavator for demolishing concrete structures or rocks.
1. Mining: Mountains, mining, crushing, secondary crushing
2. Metallurgy, slag cleaning, ladle furnace demolition, demolition equipment foundation body dissatisfied
3. Railway: tunnel, bridge, mountain down
4. Highway: highway repair, cement pavement broken, foundation excavation
5. Municipal gardens: concrete crushing, water,electricity, gas engineering construction, the transformation of the old city
6. Building: the old building demolition, reinforced concrete broken
7. The ship hull in mussels
8. Other: ice breaking, breaking the Vibrating Sand

Excavator type attachement we can supply
PC100-6 ZX30 VIO55 CX130 310
ZX130 VIO30 R16-7 R17-9VS 308.5
ECR18E 307C 307E 307D PC27
308 EX12-2 EX15-2 PC27MR PC30
HD80R KX155 SH120A2 ZX10U-2 VIO22-6
ZE75E-10 SY75C TB210R E60 E130
EC200D EC210 EC210B EC210C EC210D
EC220D EC220DL R160LC-7 R160LCD-7 R170LC-5
R180LC-7 R180LC-7A R180LCD-7 R180LCD-7A R190-5
R200-5 R200LC R210 R210-5 R190LC-5
R200-5D R210-V R210LC-3 R210-7H R210-7
DH200-5 DH220-7 DH220-5 DH150LC-7 DH215-7
EX200-5 EX200-2 EX200 DH220-1 DH220-9
EX200LC EX200K-3 EX200-5HHE EX200-3 EX200-5E
EX210LC EX210H-5 EX210-5 EX200LC-5 EX200LC-2
EX210LC-5 EX210K-5 EX210-6 EX210 EX200LC-3

SPECIFICATION
Model 　 DPTB400 DPTB450 DPTB530 DPTB680 DPTB750 DPIB1000
Suitable
Excavator		 Min ton 0.8 1.2 25 4 6 11
Max ton 2.5 3 45 7 9 16
Suitable ton 1 2 3 6 7 14
Tool
(Moil Type)		 Weight Kg 4 6 9 20 25 59
Diameter mm 40 45 53 68 75 100
Operating Weight
(Tool+MO)		 　 Kg 90 110 135 273 304 516
　 Ib 165 190 353 714 838 1874
Height 　 mm 1150 1254 1313 1602 1869 2358
Operating Pressure
(Breaker)		 　 bar 80～100 80~100 90~120 95~130 100~140 150～170
　 psi 1,160～1450 1,160~1,450 1,305~1,740 1,377~1,885 1,450~2,030 2,175~2465
Setting Pressure
(Machine)		 　 bar 150 150 150 170 180 200
　 psi 2175 2175 2175 2465 2610 2900
Impact Rate 　 bpm 800～1,400 700～1,200 600~1,100 500～900 400~800 350~700
BackHead Pressure
(N2-Gas)		 　 bar/psi 14/203 14/203 16/232 16/232 16/232 16/232
Required Oil How 　 l/min 15～30 20~40 25~50 40~70 50～90 80~110
　 　 　 　 　 　 　 　
SPECIFICATION
Model 　 DPTB1350 DPTB1400 DPTB1500 DPTB1550 DPTB1650 DPTB1750
Suitable
Excavator		 Min ton 18 10 25 28 30 40
Max ton 21 26 20
0		 35 40 55
Suitable ton 20 24 24 34 40 50
0
Tool
(Moil Type)		 Weight Kg 125 129 129 193 233 311
Diameter mm 135 140 150 155 165 175
Operating Weight
(Tool+M/O)		 　 Kg 1450 1780 2100 2700 2995 4100
　 Ib 3968 4453 4453 5820 7055 11089
Height 　 mm 2691 2828 3055 3215 3395 3736
Operating Pressure
(Breaker)		 　 bar 160～180 160~180 160～180 160~180 160~190 160～200
　 psi 2,320～2,610 2,320~2,610 2,320~2,610 2,320~2,610 2,276~2,702 2,276~2,845
Setting Pressure
(Machine)		 　 bar 210 210 210 220 240 240
　 psi 3045 3045 3045 3190 3480 3480
Impact Rate 　 bpm 350～600 350～500 300~450 300~450 250～400 150～350
Back Head Pressure
(N2-Gas)		 　 bar/psi 16/232 16/232 16/232 16/232 17/246 18/261
Required Oil Fow 　 l/min 100～150 120～180 150~210 180～240 200~260 210~290
　 　 　 　 　 　 　 　
