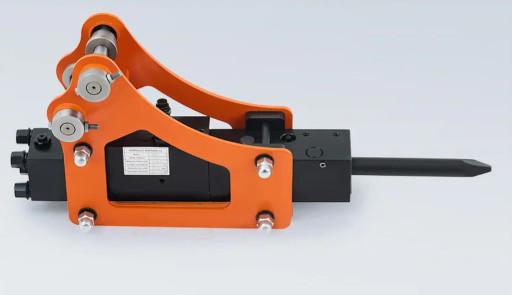

SOOSANSB70 SB81 Side Type Hydraulic Rock Breaker Jack Hammer Chisel Tool 130mm 140mm
SOOSANSB70 SB81 Side Type Hydraulic Rock Breaker Jack Hammer Chisel Tool 130mm 140mm
SOOSANSB70 SB81 Side Type Hydraulic Rock Breaker Jack Hammer Chisel Tool 130mm 140mm
SOOSANSB70 SB81 Side Type Hydraulic Rock Breaker Jack Hammer Chisel Tool 130mm 140mm
SOOSANSB70 SB81 Side Type Hydraulic Rock Breaker Jack Hammer Chisel Tool 130mm 140mm
SOOSANSB70 SB81 Side Type Hydraulic Rock Breaker Jack Hammer Chisel Tool 130mm 140mm
Specifications
Brand Name :
Dopro
Model Number :
DPSB81
Certification :
ISO CE
Place of Origin :
CHINA
MOQ :
1
Price :
1000-3000
Supply Ability :
3000 Pcs Per Month
Delivery Time :
5-7 Working Day
Packaging Details :
Export Wooden Cases /Box
Operating Pressure :
160-180bar
Service :
OEM Service Available
Flow Range :
Depends On Model
Working Temperature :
-20°C To +70°C
Rate :
350-500
Application :
mining
Suit Excavator :
19-26 Ton
Operating Weight :
1750kg
Required Oil Flow :
120-180 L/Min
Bracket Type :
Top Type, Side Type, Silence Type
Packing :
Wooden Case Package
Chisel Length :
1400 mm 1300
Description

SOOSANSB70 SB81 Side type Hydraulic Rock breaker jack hammer strong jacket too chisel 130mm 140mm forall type excavators

How do you choose the correct rock breaker?


Choosing the right hydraulic rock breaker for your project is an important decision, as it can impact the efficiency and safety of the job. Here are some factors to consider when choosing a hydraulic rock breaker:
1. Type of job: The job’s size and weight will determine the type of hydraulic rock breaker needed. A more significant job will require a bigger, more powerful breaker.

2. Type of material: Different hydraulic rock breakers are better suited for breaking apart different materials. For example, a side-type breaker is better for breaking concrete walls, while a top-type breaker is better for breaking apart large rocks.

3. Machine compatibility: Ensure that the hydraulic rock breaker is compatible with the carrier machine, such as an excavator or backhoe loader used for the job.

4. Operating pressure and flow rate: The operating pressure and flow rate of the hydraulic system will determine the power of the hydraulic rock breaker. Choose a breaker compatible with the carrier machine’s hydraulic system.
5. Noise level: If you’re working in a residential area or other location where noise pollution is a concern, consider a silence-type breaker that operates at a lower noise level.

6. Maintenance requirements: Consider the maintenance requirements of the hydraulic rock breaker, including the frequency of routine maintenance and repair needs.
Choosing the most suitable hydraulic rock breaker requires careful consideration of the specific application and job needs. Contact us today to select the right hydraulic rock breaker for your project!

Suitable:
Used for mining,demolition, construction, quarry etc;
It can be mounted on all common hydraulic excavator as
well as mini excavator and other carrier like skid steer loader,
backhoe loader, crane, telescopic handler, wheel loader and
other machinery.

Features:
1. Cylinder & valves: prevents scuffing with precision finishing
treatment;
2. Piston: every piston tolerance is machined perfectly accord
ing to each cylinder;
3. Chisel: 42CrMo, exceptional performance and reliability.

SOOSANSB70 SB81 Side Type Hydraulic Rock Breaker Jack Hammer Chisel Tool 130mm 140mmSOOSANSB70 SB81 Side Type Hydraulic Rock Breaker Jack Hammer Chisel Tool 130mm 140mm

SOOSANSB70 SB81 Side Type Hydraulic Rock Breaker Jack Hammer Chisel Tool 130mm 140mm

More model can fit
Komatsu PC20 PC30 PC40 PC55 PC60 PC100 PC120 PC180 PC200 PC210 PC220 PC240 PC260 PC300 PC360 PC400 PC450 D20 D30 D31 D50 D60 D65 D61 D80
D85
Hitachi EX30 EX30 EX55 EX60 EX100/120 EX150 EX200 EX210 EX220 EX300 EX350 EX400 EX450 ZX55 ZX70 ZX200 ZX240 ZX270 ZX330 ZX350 FH150 FH200
FH300/330 UH07 UH13 UH063 UH081 KH70 KH100 KH125 KH150 KH180
CAT E70 E120 E240 E300B E305.5 E307 E311/312 E320 E322 E325 E330 E345 E450 CAT215 CAT225 CAT235 D3C D4D D4H D4E D5 D5H D5H D6D D6E D6H
D7G
Kobelco SK07C SK03N2 SK55 SK60 SK100 SK20 SK140 SK200 SK210 SK220 SK230 SK350 SK260 SK30 SK310 SK320 SK330 SK350 SK450 K907 PH335 PH440
PH550 BM500 5045 7035 7045 PH7055 CKC2500
Mitsubishi MS110 MS180
Yuchai YC35 YC60 YC65 YC85
other BS2F BS3F BD2G UB1 12HD CCH500 CCH1500 LB944 SP33
Sumitomo SH60 SH120 SH20 SH220 SH280 SH300 SH350 LS108 LS118 LS2800
Kato HD250 HD307 HD450 HD700 HD770 HD800 HD820 HD1250
Hyundai R55 R60 R80 R130 R200 R210 R215 R225 R230 R290 R320 R450
Daewoo/Doosan DH55 DH60 DH150 DH220 DH280 DH300
Samsung SE210 SE280 SE350
Volvo EC55 EC140 EC210 EC240 EC290 EC360 EC460

SPECIFICATION
Model 　 DPSB400 DPSB450 DPSB530 DPSB680 DPSB750 DPSB1000
Suitable
Excavator		 Min ton 0.8 1.2 3 6 7 11
Max ton 2.5 3 5.5 9 14 17
Suitable ton 1 2 4 7 7 14
Tool
(MoilType)		 Weight Kg 4 6 9 20 25 59
Diameter mm 40 45 53 68 75 100
OperatingWeight
(Tool+M/C)		 　 Kg 70 90 120 250 380 765
　 h
IL		 158 200 330 605 649 1749
Height 　 mm 972 1071 1147 1349 1618 1934

Operating Pressure
(Breaker)		 　 bar 90～120 90～120 90～120 110~140 120～150 150～170
　 psi 1,160～1,450 1,160～1,450 1,305～1,740 1,377～1,885 1,450~2,030 2,175～2,465
Setting Pressure
(Machine)		 　 bar 150 150 150 170 180 200
　 psi 2175 2175 2175 2465 2610 2900
Impact Rate 　 bpm 800～1,400 700～1,200 600~1,100 500～900 400～800 350～700
BackHead Pressure
(N2-Gas)		 　 bar/psi 14/203 14/203 16/232 16/232 16/232 16/232
Required Oil Flow 　 l/min 15～30 20～40 25～50 40~70 50～90 80～110
　 　 　 　 　 　 　 　
SPECIFICATION
Model 　 DPSB1350 DPSB1400 DPSB1500 DPSB1550 DPSB1650 DPSB1750
Suitable
Excavator		 Min ton 16 18 25 28 20
0		 40
Max ton 21 26 30 25 45 55
Suitable ton 20 24 24 34 40 50
Tool
(MoilType)		 Weight Kg 125 129 129 193 233 311
Diameter mm 135 140 140 155 165 175
Operating Weight
(Tool+M/C)		 　 Kg 1462 1740 2144 2413 2650 3857
　 lb 3190 3916 3916 5940 6589 9020
Height 　 mm 2295 2429 2623 2776 2953 3189

Operating Pressure
(Breaker)		 　 bar 160～180 160～180 160～180 160～180 160～180 160～180
　 psi 2,320～2,610 2,320～2,610 2,320～2,610 2,320～2,610 2,276~2,702 2,276～2,845

Setting Pressure
(Machine)		 　 bar 210 210 210 220 240 240
　 psi 3045 3045 3045 3190 3480 3480
Impact Rate 　 bpm 350～600 350～500 300～450 300～450 250～400 150～350
Back Head Pressure
(N2-Gas)		 　 bar/psi 16/232 16/232 16/232 16/232 17/246 18/261
Required Oil Flow 　 l/min 100～150 120～180 150～210 180～240 200～260 200～290
　 　 　 　 　 　 　 　
