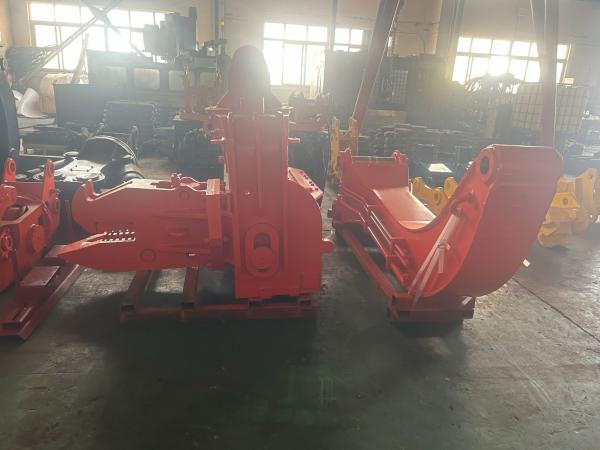

Hydraulic Excavator Mounted Vibratory Hammer Q355 Excavator Piling Hammer
Hydraulic Excavator Mounted Vibratory Hammer Q355 Excavator Piling Hammer
Hydraulic Excavator Mounted Vibratory Hammer Q355 Excavator Piling Hammer
Hydraulic Excavator Mounted Vibratory Hammer Q355 Excavator Piling Hammer
Specifications
Brand Name :
Dopro
Model Number :
DPVH400
Certification :
ISO CE
Place of Origin :
CHINA
Price :
1000-3000
Supply Ability :
1000 Pcs Per Month
Delivery Time :
3-5 Working Days
Packaging Details :
Export Wooden Cases /Pallet
Product name :
Excavator Mounted Vibratory Hammer
Condition :
New
After-sales service provided :
Video technical support
Efficiency :
High Efficiency
Application :
Pile Drilling,Solar Photovoltaic,Crawler Excavator,building foundation
Warranty :
14 Months
Name :
Multi Hydraulic Vibro Hammer/Vibratory Sheet Pile Driver,Excavator sheet pile driver,Hydraulic Static Pile Rig,Vibratory Pile Hammer cheap sheet pile driver
Color :
Customer's Request,Customer's Requirement
Type :
Vibratory Hammer,Rod type diesel hammer,HX pile driver,Hydrualic,hydraulic sheet pile driver
Operating principle :
High Frequency Hydraulic Vibratory,Hydraulic Static Pressure Pile Driver
Description

Hydraulic Vibratory Pile Excavator Piling Hammer Third Stick Steer Pile Driving Driver Hammer

Max Depth 20m Excavator Mounted Pile Hammer Max Extracting Stroke 2m 20-30hz

Excavator mounted Vibratory Hammers are equipped with a rotating mounting bracket that allows the Vibratory Hammer to rotate 360 degrees. Therefore the body will be paralleled with the ground and makes it easy to clamp onto and lift sheets from the ground.

Suitable:
Applied to driving and pulling steel plate, cement
pile, steel rail, round pipe, steel H-pile, Lasson pile,

Features:
1. Q355 material, high strength, corrosion resistance;
2. Imported rotation motor;
3. Imported hydraulic vibrating motor;
4. Integrated design, safe, low failure rate.

Model Suitable Weight Eccentric Moment Frequency Centrifugal Force Working Pressure Working Flow Rotate Angle Weight
Unit ton nm rpm kn kg/cm² l/min 　 kg
DPVH-150 12-18 32 2500 172 300 120 180 1560
DPVH-250 19-24 36 2800 265 300 155 180 2300
DPVH-330 30-40 50 2800 420 320 168 180 3300
DPVH-350 40-50 65 2800 580 320 210 180 3550
DPVH-450 40-65 85 2800 750 320 255 180 3650
