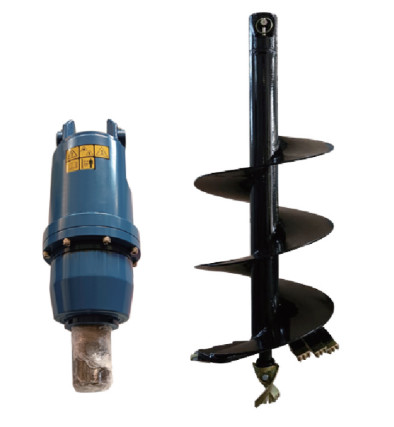

1.5-35 Ton Steel Excavator Earth Auger Hydraulic Earth Drill 100mm-400mm Diameter
1.5-35 Ton Steel Excavator Earth Auger Hydraulic Earth Drill 100mm-400mm Diameter
1.5-35 Ton Steel Excavator Earth Auger Hydraulic Earth Drill 100mm-400mm Diameter
1.5-35 Ton Steel Excavator Earth Auger Hydraulic Earth Drill 100mm-400mm Diameter
Specifications
Brand Name :
Dopro
Model Number :
DPAE2000
Certification :
ISO CE
Place of Origin :
CHINA
MOQ :
1
Price :
10-1000
Supply Ability :
3000 Pcs Per Month
Delivery Time :
3-7 Working Days
Packaging Details :
Export Wooden Cases /Pallet
Suitable To Carrier :
1.5-35ton
Power Source :
Excavator
Torque Range :
2000 Nm to 50000 Nm
Working Pressure :
80-240Bar
Torque :
From 2000 Nm to 50000 Nm
Installation :
Easy
Material :
Steel
Type :
Hydraulic
Efficiency :
Fast
Motor :
PERMOC
Drilling Diameter :
100-400mm
Machine Diameter :
190 mm
Compatibility :
Fits most excavator models
Suitable Excavator :
1.5-35 Tons
Application :
Digging
Description

1.5-35 Ton Excavator Earth Auger Hydraulic Earth Drill

What is the use of earth auger drill?
Earth augers are used for making holes in the ground and are built with a rotating metal pipe or rod with one or more blades attached at the lower end. As suggested by the name, an earth auger is designed to cut or scrape through ground and soil.

Are earth augers worth it?
Because the auger is meant to be held stationary as the hole is bored, there is less stress placed on the hands and arms, as well. For health reasons alone, augers are a worthwhile investment. However, for people who have a lot of digging to do, an earth auger becomes a time-saving necessity.

Suitable:
Used for tree planting, pole hole, drilling.


The product features

1. Q345 manganese plate steel, which has high strength and corrosion resistance;
2. The drill teeth are made of manganese molybdenum alloy material, which is durable and long-lasting;
3. Using imported Eaton hydraulic motors from the United States, with high torque and durability;
4. Using Japanese technology reducer, flexible and convenient operation.

TECHNICAL PARAMETERS
Name Unit DPAE2000 DPAF2500 DPAE3000 DPAE3500 DPAF4500 DPAE5000
Part No 　 102000 102500 103000 103500 104500 105000
Carrier T 1~2.5 1.5~3 2~3.5 2.5~4.5 3~5 4.5~7
MaxTorque N.m 1871 2432 2877 3614 4218 5056
Pressure Bar 205 205 240 240 240 240
Oil Fow Range l/min 23~53 30~61 30~61 30~68 38~76 38~76
Rotary Speed rpm 40~92 40~82 40~81 32~72 32~64 29~58
Hydraulic Hose Inch 1/2 1/2 1/2 1/2 1/2 1/2
Output Shaft mm 065 065 065 065 065 075
UnitWeight Kg 50 51 75 76 77 110
Unit Height mm 595 595 700 700 700 780
Unit Max.Dia mm 200 200 244 244 244 269
Auger Series mm S4 S4 S4 S4 S4 S5
AugerLength mm 1200 1200 1200 1200 1200 1500
Drill Dia.Range mm 100~400 100~500 100~600 100~750 100~900 150~600
Name Unit DPAE5500 DPAE6000 DPAE⁷000 DPAE8000 DPAE10000 DPAE12000
PartNo 　 105500 106000 107000 108000 110000 112000
Carrier T 5~7 6~8 7~10 8~12 10~13 13~17
MaxTorque N.m 5910 6150 6931 8048 10778 11976
Pressure Bar 240 240 240 240 240 240
Oil Flow Range l/min 45~83 45~106 61~121 61~136 70~136 80~140
Rotary Speed rpm 28~50 34~80 37~72 29~64 26~45 22~43
Hydraulic Hose Inch 1/2 3/4 3/4 3/4 3/4 1
Output Shaft mm 075 075 075 075 075 075
Unit Weight Kg 112 128 130 132 167 167
Unit Height mm 780 850 850 850 930 930
Unit Max.Dia. mm 269 269 269 269 290 290
Auger Series mm S5 S5 S5 S5 S6 S6
AugerLength mm 1500 1500 1500 1500 1750 1750
Drll Dia.Range mm 150~750 150~900 150~900 150~900 150~900 150~900
