T45 76mm Top Hammer Button Drill Bits For Rock Drilling And Blasting
T45 76mm Top Hammer Button Drill Bits For Rock Drilling And Blasting
T45 76mm Top Hammer Button Drill Bits For Rock Drilling And Blasting
T45 76mm Top Hammer Button Drill Bits For Rock Drilling And Blasting
T45 76mm Top Hammer Button Drill Bits For Rock Drilling And Blasting
T45 76mm Top Hammer Button Drill Bits For Rock Drilling And Blasting
Specifications
Brand Name :
MIROC by KSQ
Model Number :
T45 76mm
Certification :
ISO9001
Place of Origin :
China (Mainland)
MOQ :
5 Pieces
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20000 pieces per month
Delivery Time :
5-15 Working Days
Packaging Details :
Carton Box or Wooden Box
name :
Top Hammer Button Drill Bits
Material :
Cr45 YK05
Diameter :
76mm
Button Size :
8*12mm,5*11mm
Face Type :
Flat
application :
For Mining Quarry Project
Description

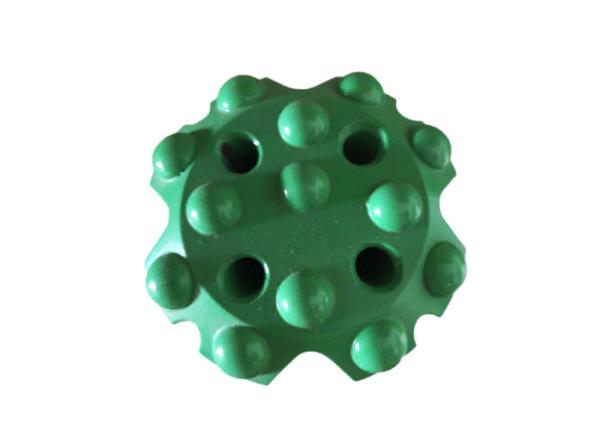

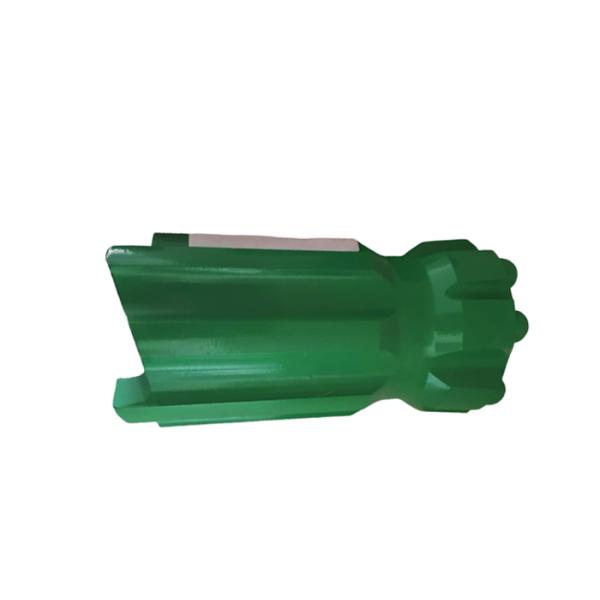

T45 76mm Top Hammer Button Drill Bits for Rock Drilling and Blasting​

Thread Button bits are made by alloy steel bar of quality and tungsten carbides.

Through heat treatment, our drilling tools are tough enough to meet rock drilling demands and have the least loss of energy while drilling the rocks.

Besides, we can design customized thread button drill bits according to different drilling application, and custom drill bits are applicable to drill soft rock, loose-medium rock and hard rock:

(1)Thread: R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, T60

(2)Diameter: 38-127mm.

Products description:

1. Made from high alloy steel and YK05 tungsten carbide as same grade as internationally well-known brand

2. Apply "hot (thermal) -insertion" processing procedure to insert the buttons as same as internationally well-known brand

3. Entire CNC processing procedure ensure the quality consistency

4. Military grade requirements of heat-treatment guarantee durability

5. Fast penetration rates, and straight and clean hole quality. Long life of drilling holes.

T45 76mm Top Hammer Button Drill Bits For Rock Drilling And Blasting

More Products:

T38/45 Thread Button Bit (FOR REFERANCE, more details, please contact with us)
Diameter (mm) No. of buttons Buttons x button diameter
(Gauge, Centre)		 Buttons angle °
(Gauge, Front)		 Flushing hole
(Side, Centre)		 Weight approx (kg)
70 12 8x11, 4x11 40 -, 2 2.2
70 11 6x12.7, 5x10 35 1, 2 2.2
70 10 6x11, 3x11,1x9 35 -, 3 2
70 10 6x11, 3x11,1x9 35 -, 3 2.1
76 12 8x11, 4x11 40 -, 2 2.2
76 12 8x11, 4x11 40 -, 2 2.8
76 11 6x12.7, 5x11 35 2, 1 2.6
76 13 8x12.7, 5x11 35 1, 2 2.4
76 13 8x12.7, 5x11 35 1, 2 2.7
76 10 6x12.7, 3x11,1x11 35 1, 2 2.6
76 13 8x11, 4x11,1x11 35 1, 4 3.2
76 13 8x12.7, 4x11,1x11 35 -, 4 2.4
76 13 8x12.7, 4x11,1x11 35 -, 4 3
89 12 8x12.7, 4x12.7 40 -, 2 3.3
89 14 8x12.7, 6x11 35 1, 1 3.7
89 12 8x12.7, 4x12.7 40 -, 2 5
89 14 8x12.7, 6x12.7 35 1, 2 4.7
89 11 6x12.7, 3x11,2x11 35 1, 3 3.5
89 14 8x11, 4x11,2x9 35 1, 4 4.7
89 13 8x12.7, 4x11,1x11 35 -, 4 3
89 13 8x12.7, 4x11,1x11 35 -, 4 4.2
102 12 8x14.5, 4x14.5 40 -, 2 4.4
102 12 8x14.5, 4x14.5 40 -, 2 6.7
102 14 8x15.8, 6x12.7 35 1, 2 3.7
102 11 6x14.5, 3x12.7,2x12.7 35 1, 3 3.9
102 14 8x12.7, 4x12.7,2x12.7 35 1, 4 6.9
102 13 8x14.5, 4x12.7,1x12.7 35 -, 4 5.3
115 18 10x12.7, 8x12.7 35 -, 2 5.4
115 14 8x14.5, 4x12.7,2x12,7 35 1, 4 5
127 19 18x12.7, 1x12.7 35 1, 3 5.3
152 20 18x14.5, 2x14.5 35 1, 3 9.9

T45 76mm Top Hammer Button Drill Bits For Rock Drilling And Blasting
