Specifications
Brand Name :
MIROC
Model Number :
R1376-R32-B
Certification :
ISO9001
Place of Origin :
China (Mainland)
MOQ :
10 Pieces
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000 Pieces per Year
Delivery Time :
5-15 Working Days
Packaging Details :
Carton Box or Wooden Box
Product Name :
Thread Button Bit
Machine Type :
Hydraulic & penumatic Drill
Use :
Ore Mining
Connection :
R32 Drifter rod, R32 Speed rod
Button Type :
Sphercial / Ballistic
Color :
Green black, customized
Bit Dia :
76mm
Description

Thread Button Drill Bit Rock Drill Steel and Bits R32 76mm Ballistic Rock Carbide Drill Bits

Specifications
our dominant drill bits are chisel bits, cross bits, buttons bits, DTH bits

We are a professional company which is specialized in making and researching on drilling equipments as well, and our dominant products are chisel bits, cross bits, buttons bits, DTH bits with high, medium and low air pressure, symmetric drilling tools, eccentric drilling tools, standardized API system casings, bit shanks and casing tubes which are fit for hydraulic drilling equipments.

What is the advantage of our Button Bit ?

1. Material: 100% virgin raw material with submicron grain size;
2. Grade: Various grades for choice;
3. Advanced production equipments and testing equipments
4. Precision Ground and polished;
5. High wear resistance,high hardness and impact toughness;
6. Samples & small orders are acceptable.

What is the Bit Shape Selection of our Button Bit?

Bit Face Shape

Application

Drop Center Bit

For high penetration rates in soft to medium hard and fissured rock formations. Low to medium air pressures. Maximum hole deviation control.

Concave Face

The all-round application bit face specifically for medium hard and homogenerous rock formations. Good hole deviation control and good flushing capacity.

Convex Face

For high penetration rates in soft to medium-hard with low to medium air pressures. It is the most resistance to steel wash, and may reduce the load and wear on the gauge buttons, but poor hole deviation control.

Double Gauge Face

This kind of face shape is suitable for fast penetration rates in medium to hard rock formations. Designed for high air pressures and good resistance to steel wash step gauge bit.

Flat Face Bit

This kind of face shape is suitable for hard to very hard and abrasive rock formations in applications with high air pressures. Good penetration rates an resistance to steel wash.

Carbide button shape selection:

1. Domed/Round Button

2. Parabolic/Semi-Ballistic Buttons

3. Ballistic Button

4. Sharp Button

5. Flat Button

Thread R32 (1 1/4")

Dimensions D

　

Flushing hole(mm)

　

Buttons(mm)

　

Angle

mm

in

Front No Size

Gauge No Size

Front No Size

Gauge No Size

　

45

1 3/4

1*5.5

2*5.5

2*9

5*11

30°

48

1 7/8

2*6

1*5

2*9

5*11

30°

51

2

2*6

1*5.5

2*10

5*11

30°

43

1 2/3

2*5

2*5

2*8

6*9

30°

45

1 3/4

2*5

2*5

2*9

6*10

30°

48

1 7/8

2*5.5

2*5

2*9

6*10

30°

43

1 2/3

3*4

2*5

3*8

6*10

30°

45

1 3/4

3*5

1*5

3*8

6*10

30°

48

1 7/8

3*5

1*5

3*9

6*10

30°

54

2 1/8

3*6

1*5.5

3*10

6*11

35°

45

1 3/4

3*5

1*5

3*8

6*10

30°

48

1 7/8

3*5

1*5

3*9

6*10

30°

51

2

3*5.5

1*5.5

3*9

6*10

35°

54

2 1/8

3*6

1*5.5

3*10

6*11

35°

57

2 1/4

3*6

1*6

3*10

6*11

35°

64

2 1/2

3*7

1*6

4*10

6*11

35°

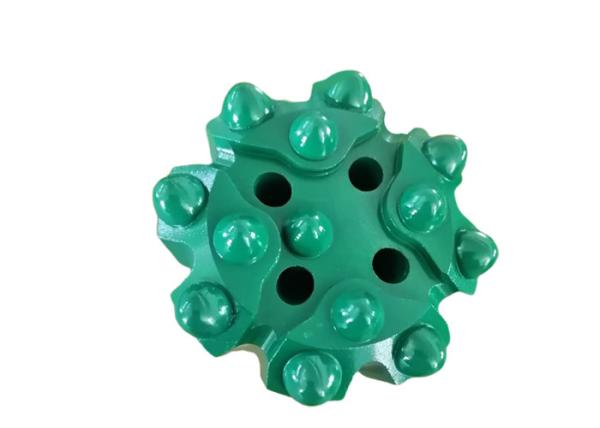

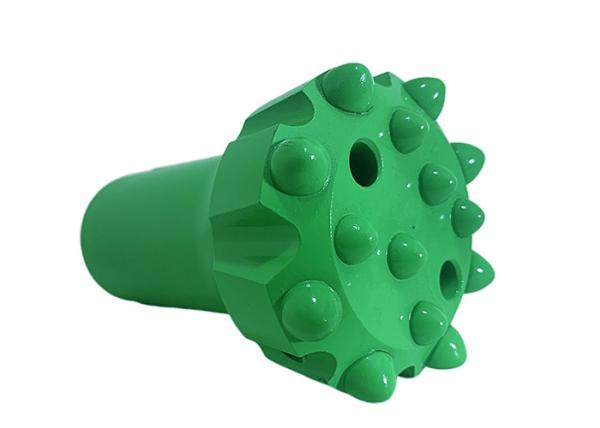

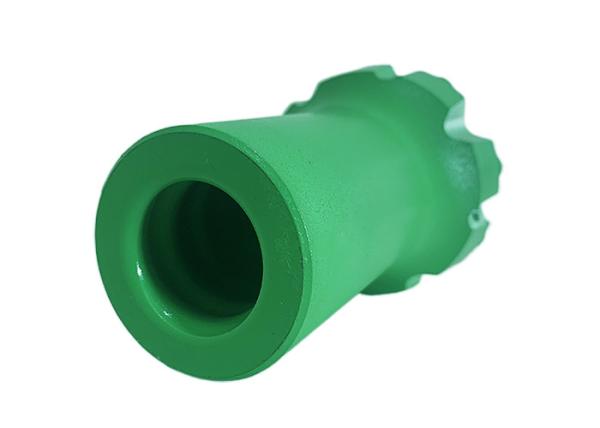

Products' Photos:


Thread Button Drill Bit Rock Drill Steel And Bits R32 76mm Ballistic Rock Carbide Drill BitsThread Button Drill Bit Rock Drill Steel And Bits R32 76mm Ballistic Rock Carbide Drill BitsThread Button Drill Bit Rock Drill Steel And Bits R32 76mm Ballistic Rock Carbide Drill Bits

Thread Button Drill Bit Rock Drill Steel And Bits R32 76mm Ballistic Rock Carbide Drill Bits
