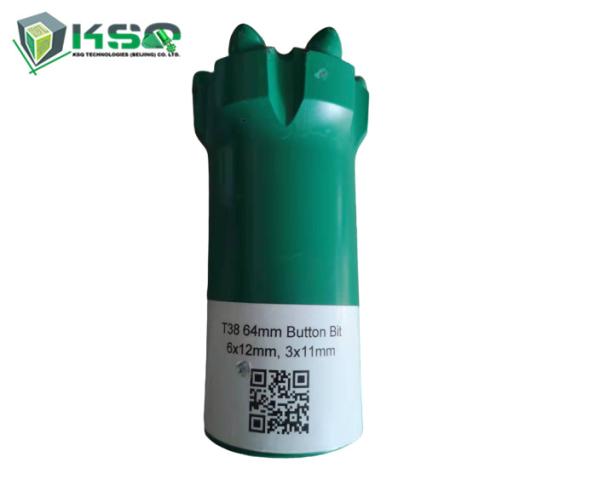

T38 Top Hammer Button Drill Bits 64mm Diameter For Mining Quarry Project
T38 Top Hammer Button Drill Bits 64mm Diameter For Mining Quarry Project
T38 Top Hammer Button Drill Bits 64mm Diameter For Mining Quarry Project
T38 Top Hammer Button Drill Bits 64mm Diameter For Mining Quarry Project
T38 Top Hammer Button Drill Bits 64mm Diameter For Mining Quarry Project
T38 Top Hammer Button Drill Bits 64mm Diameter For Mining Quarry Project
T38 Top Hammer Button Drill Bits 64mm Diameter For Mining Quarry Project
T38 Top Hammer Button Drill Bits 64mm Diameter For Mining Quarry Project
Specifications
Brand Name :
MIROC by KSQ
Model Number :
T38 64mm
Certification :
ISO9001
Place of Origin :
China (Mainland)
MOQ :
5 Pieces
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20000 pieces per month
Delivery Time :
5-15 Working Days
Packaging Details :
Carton Box or Wooden Box
name :
Top Hammer Button Drill Bits
Material :
Cr45 YK05
Diameter :
64mm
Button Size :
6*12mm,3*11mm
Face Type :
Flat
application :
For Mining Quarry Project
Description

T38 Top Hammer Button Drill Bits 64mm Diameter For Mining Quarry Project

Thread Button bits are made by alloy steel bar of quality and high grade tungsten carbides.

Through heat treatment, our drilling tools are tough enough to meet rock drilling demands and have the least loss of energy while drilling the rocks.

Besides, we can design customized thread button drill bits according to different drilling application, and custom drill bits are applicable to drill soft rock, loose-medium rock and hard rock.

KSQ rock drilling thread button bits are widely used in all kinds of mining, drilling, quarrying, engineering, construction, water well drilling, oil exploring industries etc.We stand by our promise of being a proactive and innovative partner. Always looking ahead, listening to our customers and their market requirements. We follow developments in society and industry, as well as contribute with products and solutions to meet demand.

Product Name: Thread Button bits
Description: Thread Button bits
Button bit Made with high quality of best quality alloy steel bar and tungsten carbide, through heat treatment like Atlas.
Material: Alloy steel bar and tungsten carbide bit
MOQ: No MOQ required for testing and trial order
Body Type Normal type and retract type
Thread type R22,R25,R28,R32,R38,T38,T45,T51,ST58,ST68,GT60
Diameter 32mm-152mm
Button bit shape Spherical and Ballistic
Face shape Flat shape and Drop-center shape

Button Type:

Suitable for very abrasive and very hard rock formation

 Dome Round

Fast penetration, suitable for medium abrasive and hard rock formations.

 Parabolic / Semi-ballistic

Suitable for medium abrasive and medium hard formations. Also be used as gauge buttons for soft rock.

 Ballistic button

T38 Top Hammer Button Drill Bits 64mm Diameter For Mining Quarry Project

More Products:

T38/45 Thread Button Bit (FOR REFERANCE, more details, please contact with us)
Diameter (mm) No. of buttons Buttons x button diameter
(Gauge, Centre)		 Buttons angle °
(Gauge, Front)		 Flushing hole
(Side, Centre)		 Weight approx (kg)
70 12 8x11, 4x11 40 -, 2 2.2
70 11 6x12.7, 5x10 35 1, 2 2.2
70 10 6x11, 3x11,1x9 35 -, 3 2
70 10 6x11, 3x11,1x9 35 -, 3 2.1
76 12 8x11, 4x11 40 -, 2 2.2
76 12 8x11, 4x11 40 -, 2 2.8
76 11 6x12.7, 5x11 35 2, 1 2.6
76 13 8x12.7, 5x11 35 1, 2 2.4
76 13 8x12.7, 5x11 35 1, 2 2.7
76 10 6x12.7, 3x11,1x11 35 1, 2 2.6
76 13 8x11, 4x11,1x11 35 1, 4 3.2
76 13 8x12.7, 4x11,1x11 35 -, 4 2.4
76 13 8x12.7, 4x11,1x11 35 -, 4 3
89 12 8x12.7, 4x12.7 40 -, 2 3.3
89 14 8x12.7, 6x11 35 1, 1 3.7
89 12 8x12.7, 4x12.7 40 -, 2 5
89 14 8x12.7, 6x12.7 35 1, 2 4.7
89 11 6x12.7, 3x11,2x11 35 1, 3 3.5
89 14 8x11, 4x11,2x9 35 1, 4 4.7
89 13 8x12.7, 4x11,1x11 35 -, 4 3
89 13 8x12.7, 4x11,1x11 35 -, 4 4.2
102 12 8x14.5, 4x14.5 40 -, 2 4.4
102 12 8x14.5, 4x14.5 40 -, 2 6.7
102 14 8x15.8, 6x12.7 35 1, 2 3.7
102 11 6x14.5, 3x12.7,2x12.7 35 1, 3 3.9
102 14 8x12.7, 4x12.7,2x12.7 35 1, 4 6.9
102 13 8x14.5, 4x12.7,1x12.7 35 -, 4 5.3
115 18 10x12.7, 8x12.7 35 -, 2 5.4
115 14 8x14.5, 4x12.7,2x12,7 35 1, 4 5
127 19 18x12.7, 1x12.7 35 1, 3 5.3
152 20 18x14.5, 2x14.5 35 1, 3 9.9
