Oil Drilling 3.5 API 5DP Drill Steel Pipe API Standard DTH Drilling Pipe
Oil Drilling 3.5 API 5DP Drill Steel Pipe API Standard DTH Drilling Pipe
Oil Drilling 3.5 API 5DP Drill Steel Pipe API Standard DTH Drilling Pipe
Oil Drilling 3.5 API 5DP Drill Steel Pipe API Standard DTH Drilling Pipe
Oil Drilling 3.5 API 5DP Drill Steel Pipe API Standard DTH Drilling Pipe
Oil Drilling 3.5 API 5DP Drill Steel Pipe API Standard DTH Drilling Pipe
Specifications
Brand Name :
MIROC
Model Number :
3.5" DTH Drilling Pipe
Certification :
ISO API
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20000PCS Per Month
Delivery Time :
10-25Days
Packaging Details :
Wooden Case/Plate
Product name :
DTH Drill pipe
Use :
Well Drilling
Material :
Carbon Steel, S135
Diameter :
89-127mm
Shape :
Round
Machine Type :
Drilling Tool
Description

Oil Drilling 3.5" API 5DP Drill Steel Pipe API Standard DTH Drilling Pipe

Drill pipe quality control:
a) Before order to be confirmed, the raw material of pipe body and tool joint should be booked from famous big steel enterprises in China
b) Raw material’s size, quantity, length, mechanical property are checked by our QC staff and factory own laboratory
c) Every drill pipe has nondestructive inspection , cleaned and thread oil before packing.

1. OD: 3.5”(88.9 mm)

2. Thickness: 9.35 mm or 11.4 mm (13.3 LB/FT or 15.5 LB/FT)

3. Tool joint: NC38

4. Steel grade: G105

5. Length: RI, RII, RIII (2~12 meters)

6. Plastic coating: TC2000, TK34

Features
1. Strictly according to API 5DP standard
2. Yield strength: Min 724 Mpa
3. Tensile strength: Min 793 Mpa
4. Pipe body material: High quality alloy seamless pipe of G105
5. Tool joint: 35CrMo, 4137H, 4145H
6. Thread treatment: Phosphorization or copper plating
7. Suitable for water well, geothermal well, gas well, oil well
8. Safe drilling depth: Within 4,000 meters

More Standard Drill pipe specifications:

Diameter (inch) Grade Upset RSC (Thread) Diameter (mm) Thickness (mm)
IU
4 E IU NC40 101.60 8.38
4 X IU NC40 101.60 8.38
4 G IU NC40 101.60 8.38
4 S IU NC40 101.60 8.38
4 1/2 E IU NC46 114.30 6.88
2 3/8 E EU NC26 60.32 7.11
2 3/8 X,G EU NC26 60.32 7.11
2 7/8 E EU NC31 73.02 9.19
2 7/8 X,G EU NC31 73.02 9.19
2 7/8 S EU NC31 73.02 9.19
3 1/2 E EU NC38 88.90 6.45
3 1/2 E EU NC38 88.90 9.35
3 1/2 X EU NC38 88.90 9.35
3 1/2 G EU NC38 88.90 9.35
3 1/2 S EU NC38 88.90 9.35
3 1/2 E EU NC38 88.90 11.40
3 1/2 X EU NC38 88.90 11.40
3 1/2 G EU NC38 88.90 11.40
3 1/2 S EU NC38 88.90 11.40

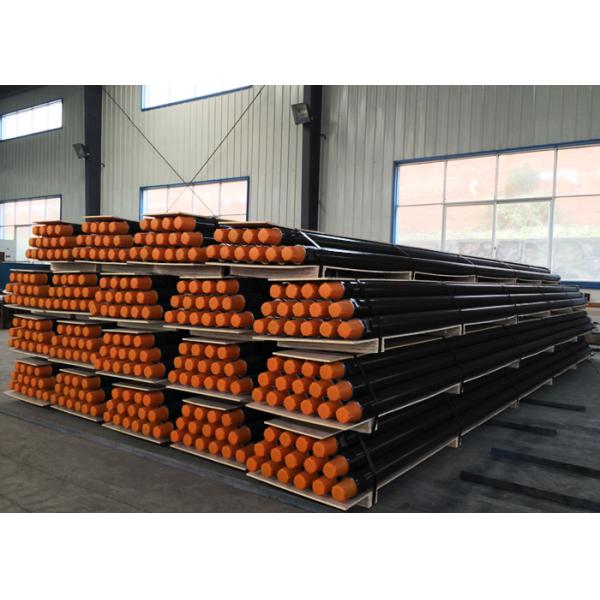

Oil Drilling 3.5

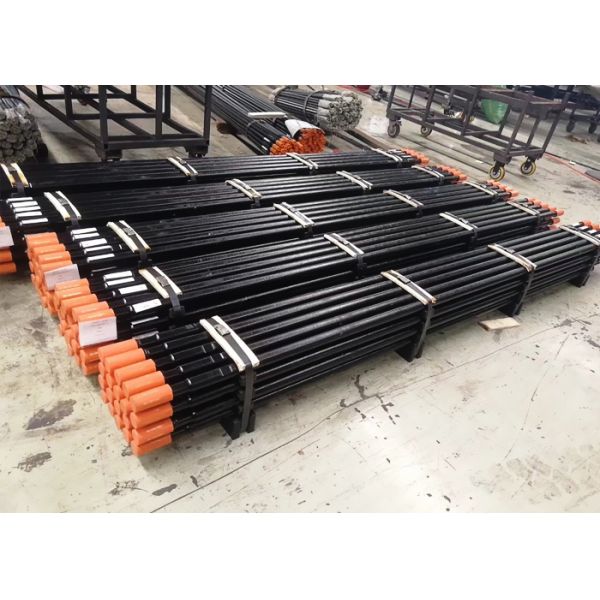

Oil Drilling 3.5
